PL-VF10 Pipe and Cable Locator

TIGER#: TS92039
Original price List Price: USD $4,150.00
You Save: USD $120.00 -3%
Original price USD $4,150.00 - Original price USD $4,150.00
Original price List Price: USD $4,150.00
Current price USD $4,030.00
USD $4,030.00 - USD $4,030.00
Current price USD $4,030.00
PL-VF10 Pipe and Cable Locator
PL-VF10 Pipe and Cable Locator - USD $4,030.00
USD $4,030.00
*Must Purchase 1 for PL-VF10 Pipe and Cable Locator

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 7/30/2024

One of our Sales Experts will be in touch!

  • 8 operating frequencies ranging from 512Hz to 480kHz
  • 8 locating modes
  • Available Option: Alkaline or Rechargeable Lithium Battery
  • Depth range: 25 feet
  • User-programmable frequencies and operational modes
  • Remotely control transmitter from the receiver
  • High-contrast backlit LCD screen
  • Battery life: 8-20 hours of continuous use, 40-60 hours intermittent

The PL-VF10 Pipe and Cable Locator from SubSurface Instruments is an affordable, easy-to-use, and accurate device that locates pipes and cables buried as deep as 25 feet. The PL-VF10 has all the features a professional locator needs for fast and accurate locate tasks, topped off with an easy-to-use design that even less-experienced individuals can easily learn.

The adaptable PL-VF10 Locator has 8 standard locating modes and 8 standard frequencies that can be added or deleted on demand to suit your locating needs. The transmitter can transmit two frequencies simultaneously to make operations more efficient. The PL-VF10 uses the Automatic Impedance Matching feature to maximize the transmission range while reducing power consumption. Another great feature of the PL-VF10 is the ability to remotely control the transmitter’s output power and frequency from the receiver from more than 400 meters, eliminating the need to walk back and forth between the devices.

With visual indicators displayed on the high-contrast backlit LCD screen of the receiver, as well as audio signals with 4 volume options including mute, the PL-VF10 provides clear indicators for target detections. The LCD screen also displays other relevant data to guide the operator to the target location including continuous depth measurement, current measurement, signal strength, and directional arrows.

Configuration Options

The PL-VF10 Pipe and Cable Locator can come with either an alkaline or lithium battery. Please select your preference from the menu above to place your order.

  • PL-VF10: Alkaline Battery
  • PL-VF10R: Rechargeable Lithium Battery
  • 8 operating frequencies ranging from 512Hz to 480kHz
  • 8 locating modes
  • Available Option: Alkaline or Rechargeable Lithium Battery
  • Depth range: 25 feet
  • User-programmable frequencies and operational modes
  • Remotely control transmitter from the receiver
  • High-contrast backlit LCD screen
  • Battery life: 8-20 hours of continuous use, 40-60 hours intermittent

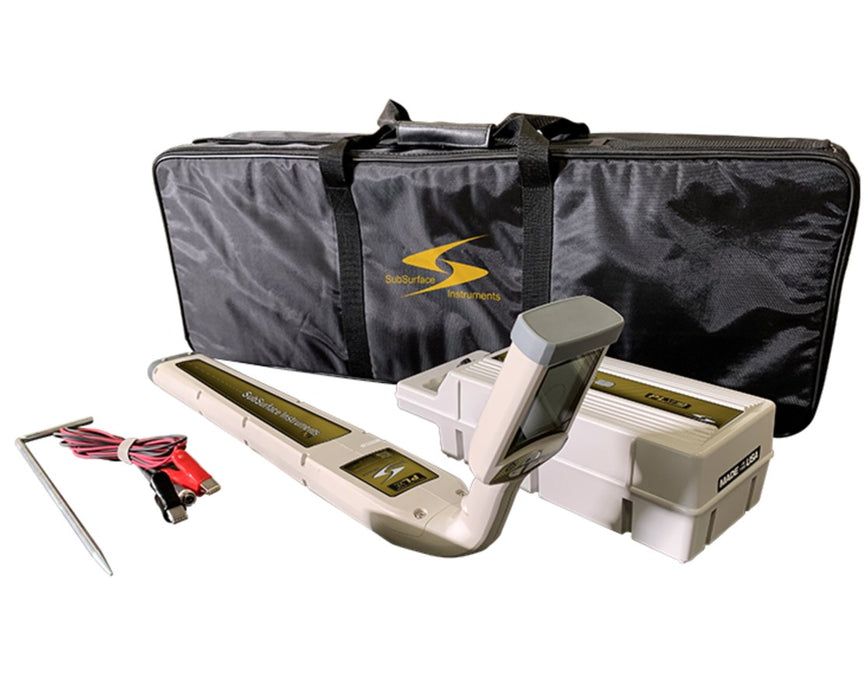

What’s in the Box

  • PL-VF receiver
  • PL-VF10 transmitter
  • Direct connection cord
  • Ground rod
  • Protective carrying case
  • Batteries
  • User manual
  • 1-year manufacturer’s warranty

1-year manufacturer's warranty. Warranty extends to 4 years when registered at http://www.ssilocators.com/warrantyregistration within 30 days of original purchase

Applications
Cable Location
Yes
Pipe Location
Yes
Battery/Power
Battery Life
8-20 hours; Intermittent: 40-60 hours
Power Source
(12) “D” cell batteries
Features
Display
Indicators back-lit segmented LCD bar graph
General
Depth Detection
(1 inch – 30 feet) (.02m-10.6m) with accuracy > 5% of depth
Operating Temperature
-4° F to 133° F (-20° C to 55° C)
Warranty
1 year
Weight
4.2 lbs (1.9 kg)
