Piper Pipe Laser

Leica
by Leica
MFR#: 748704
USD $5,009.00 - USD $5,009.00
List Price: USD
USD $5,034.00
USD $5,009.00 - USD $5,009.00
USD $5,034.00

Store Pickup: List of available stores available on the Checkout page.
Piper Pipe Laser
Piper Pipe Laser - USD $5,034.00
USD $5,034.00
*Must Purchase 1 for Piper Pipe Laser

The cart will thereforce automatically set Qty to 1 when you order this product

One of our Sales Experts will be in touch!

Ghana
Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 1/9/2025
Documents
Product Manual Item Brochure Product Video
  • Laser Type: 635mm (red) Laser Class 3R
  • Working Range: 200m
  • Laser Output: 4.75mW Maximum
  • Self-Leveling Range: -15% to +30%
  • Operating Temperature Range: -20°C to + 50°C
  • Protection Class: IPx8

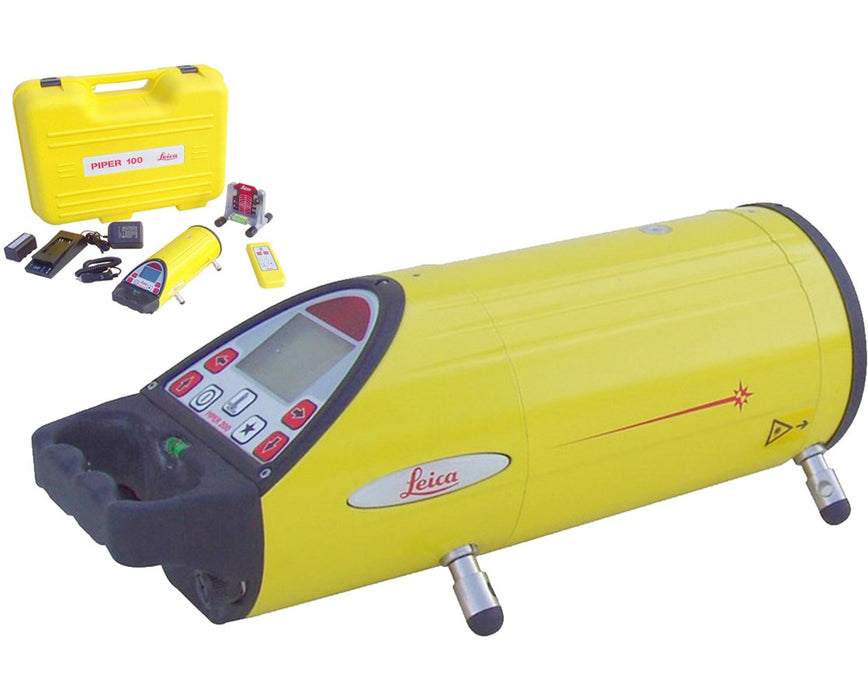

The Leica Piper Series Pipe Laser is a powerful and compact pipe laser tool with a size that allows it to fit into a four-inch (100 mm) pipe. Its highly visible red laser beam is focused to maintain its crisp, clear spot and size even over long distances. It can operate up to a range of 656 feet and can also self-level to a range of 15 to 30 percent. The large LCD display allows easy reading of the grade, line position, battery status, and level indication.

The Leica Piper laser 200 model comes with the Alignmaster function, a patented automatic targeting system that searches and finds the target for fast second day setups. This Leica pipe laser has an accuracy of ±10 arc seconds and offers a grade range of -10 to 25 percent.  Also featured are the dual-axis leveling, a wide line adjustment, line and grade locks, and an easy-grade entry that can make changes easily.

The Leica Piper 100 and 200 lasers are constructed from cast aluminum, which makes it durable and lightweight and comes with an IPX8 water-resistant rating. With its battery saving mode, this Leica pipe laser can operate up to 10 hours and only needs to be charged a maximum of four hours. Using the Leica IR remote control, this laser tool can be operated from a distance of up to 500 feet.

Configuration Options

The Leica Piper Series Pipe Laser is available in different models and packages. Please select your preference from the menu above.

Package Laser Model Additional Components
IR Remote and Target (748773) Piper 100
  • IR Remote Control
  •  Red Target Assembly with Small Insert (300mm)
IR Remote, Target, & Laser Feet
(748704)
Piper 100
  • IR Remote Control
  • Red Target Assembly with Small Insert (300mm)
  • 4x 6" Removable Laser Feet
IR Remote, Target, & PTC100 Target Assembly (6000230) Piper 100
  • IR Remote Control
  • Red Target Assembly with Small Insert (300mm)
  • PTC100 Target Assembly, 100 mm / 4 inch
IR Remote, Target, and Over-the-Top Assembly
(750974)
Piper 100
  • IR Remote Control
  • Red Target Assembly with Small Insert (300mm)
  • 4x 6" Removable Laser Feet
  • Mounting Bracket
  • Scope and Mount Assembly
Over-the-Top Assembly
(6006654)
Piper 100
  • 4x 8" Removable Laser Feet
  • Mounting Bracket
  • Scope and Mount Assembly
IR Remote and Target (748774) Piper 200
  • IR Remote Control
  • Red Target Assembly with Small Insert (300mm)
Target & PTC100 Target Assembly Piper 200
  • Red Target Assembly with Small Insert (300mm)
  • PTC100 Target Assembly, 100 mm / 4 inch
Alignmaster, IR Remote, &Target
(748710)
Piper 200 w/ Alignmaster
  • IR Remote Control
  • Red Target Assembly with Small Insert (300mm)
  • 4x 6" Removable Laser Feet
  • Optional Alignmaster function
  • Grade range: -10% to 25%
  • Self-leveling -15% to 30%
  • Accuracy: ±10 arc seconds
  • Up to 656 feet operating range
  • Up to 500 feet range with the remote control
  • Strobe mode
  • Lighted pivot point
  • Off-level warning
  • Automatic grade compensation
  • Heavy duty trivet
  • Large clear display
  • Battery saving mode
  • Up to 40 hours with Li-ion battery
  • IPX8 water resistant
  • Cast aluminum housing

What’s in the Box

  • Piper 100 or 200 Laser
  • Carrying Case
  • Remote
  • Target
  • Li-Ion Battery and Charger
  • Car Adapter Cable

Leica Geosystems products are special order only.

We do not accept returns or cancellations for special ordered items.

Applications
Exterior Pipe Work
Yes
Interior Pipe Work
Yes
Manholes
Yes
Sanitation
Yes
Tunneling
Yes
Battery/Power
Rechargeable Battery/Life
Up to 40 hours using Li-ion batteries
Features
Display
Large LCD
Grade Lock
Yes
Line Lock
Yes
Plumb Reference
LED plumb light
Security
Owner ID
Sleep Mode/Auto Shut Off
Sleep Mode
General
Accuracy
±10 arc seconds
Cross Axis Leveling
Automatic
Dimensions
3.8" W x 10.5" L (96 mm x 267 mm)
Material
Aluminum
Mount
Legs (6 inches)
Operating Temperature
-4 to 122 °F (-20 to 50 °C)
Protection Class
IPX8 water-submersible
Self-Leveling Range
-15% to +30%
Tripod Thread
5/8 x 11
Warranty
5-year
Weight
4.4 lbs (2 kg)
Grade/Slope
Display
0.001% increments
Entry
Rolling counter
Range
-10% to +25%
Laser
Color
Red
Type/Wavelength
Visible/635 nm
Remote Control
Alkaline Battery/Life
9-Volt
Display
No
Operating Range
Front: 500 ft. (150 m)/Rear: 35 ft. (10 m)
