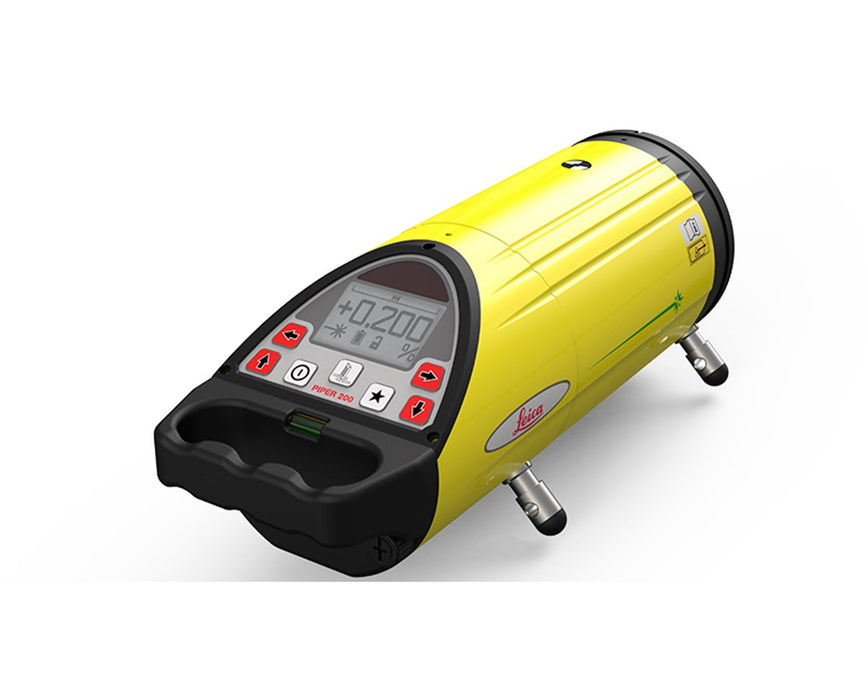

Piper Green Beam Pipe Laser

by Leica
MFR#: 6016059
Original price USD $5,445.00 - Original price USD $5,445.00
Original price List Price: USD $5,445.00
USD $5,445.00
USD $5,445.00 - USD $5,445.00
Current price USD $5,445.00

Store Pickup: List of available stores available on the Checkout page.

Piper Green Beam Pipe Laser
Piper Green Beam Pipe Laser - USD $5,445.00
USD $5,445.00
*Must Purchase 1 for Piper Green Beam Pipe Laser

The cart will thereforce automatically set Qty to 1 when you order this product

One of our Sales Experts will be in touch!

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 11/6/2024
  • Laser Beam Color: Green
  • Wave Length: 520 nm
  • Working Range: <200m/650 ft
  • Grade Range: -10% to +25%
  • Self-Leveling Range: -15% to +30%
  • Operating Temperature: -4°F to +122°F (-20°C to +50°C)
  • strong>Protection Class
  • : IPx8

The Leica Piper Series Green-Beam Pipe Laser is the latest evolution of Lecia’s reliable Pipe Lasers. This high-performance grade measuring device is for contractors who need quick and dependable readings in the field. The green laser used for measurement gives better visibility while increasing its effective distance and accuracy.

Multiple Applications: The Piper Green-Beam Pipe Laser can be used in pipe, over the top, or in manhole measurements. It’s compact enough to fit inside a 4-inch or 100-mm pipe and comes with an optional IR Remote for ease of operation. It also sports a sizable LCD display for easier reading of device status, grade reading, line position, and level indications.

Operational Range: It can measure distances of up to 650 feet or 200 meters, with a grade measurement range of -10% to +25%. It also has a self-leveling range of -15% to +30%. It also has an automatic grade compensation, which will correct grade errors of up to ±3°.

Built For Any Jobsite: The Pipe Laser is encased in a tough and rugged cast aluminum housing. This gives extra protection against the harsh environment while remaining lightweight and handy. It also provides IPX8 water resistance protection, so you could use the laser even in inclement weather or wet pipes.

PRODUCT OPTIONS

The Leica Piper Series Green-Beam Pipe Laser comes in different package options. Please choose your preference from the menu above before adding it to your cart.

  • Package 1: 100G 3R Laser, Target Assembly, Battery and Charger, Carry Case, 6" feet (6016059)
  • Package 2: 100G 2M Laser, Carry Case, 6" feet (916020)
  • Package 3: 100G 3R Laser, Carry Case, 6" feet (915550)
  • Package 4: 100G 3R Laser, Remote, Target Assembly, Scope and Mount Assembly, Mounting Bracket, Battery and Charger, Carry Case, 6"feet (6016064)
  • Package 5: 100G 2M Laser, Remote, Target Assembly, Battery and Charger, Carry Case, 6" feet (6016061)
  • Package 6: 100G 3R Laser, Remote, Target Assembly, Battery and Charger, Carry Case, 6" feet (6016058)
  • Package 7: 200G 3R Laser, Target Assembly, Battery and Charger, Carry Case, 6" feet (6016959)
  • Package 8: 200G 3R Laser, Carry Case, 6" feet (938490)
  • Package 9: 200G 3R Laser, Remote, Target Assembly, Battery and Charger, Carry Case, 6" feet (6016958)
  • Package 10: 100G 3R Laser, Target Assembly, 6" and 8" Feet Set, Scope and Mount Assembly, Mounting Bracket, Battery and Charger, Carry Case (6016065)
  • High-Visibility Green-Beam Laser
  • Operational Range of up to 650 ft / 200 m
  • Automatic Grade Compensation
  • IPX8 water resistance rating
  • Rugged cast aluminum housing

What’s in the Box

  • Package 1: 100G 3R Laser, Target Assembly, Battery and Charger, Carry Case, 6" feet (6016059)
  • Package 2: 100G 2M Laser, Carry Case, 6" feet (916020)
  • Package 3: 100G 3R Laser, Carry Case, 6" feet (915550)
  • Package 4: 100G 3R Laser, Remote, Target Assembly, Scope and Mount Assembly, Mounting Bracket, Battery and Charger, Carry Case, 6"feet (6016064)
  • Package 5: 100G 2M Laser, Remote, Target Assembly, Battery and Charger, Carry Case, 6" feet (6016061)
  • Package 6: 100G 3R Laser, Remote, Target Assembly, Battery and Charger, Carry Case, 6" feet (6016058)
  • Package 7: 200G 3R Laser, Target Assembly, Battery and Charger, Carry Case, 6" feet (6016959)
  • Package 8: 200G 3R Laser, Carry Case, 6" feet (938490)
  • Package 9: 200G 3R Laser, Remote, Target Assembly, Battery and Charger, Carry Case, 6" feet (6016958)
  • Package 10: 100G 3R Laser, Target Assembly, 6" and 8" Feet Set, Scope and Mount Assembly, Mounting Bracket, Battery and Charger, Carry Case (6016065)

5-year manufacturer’s warranty.

Leica Geosystems products are special order only.

We do not accept returns or cancellations for special ordered items.

Applications
Exterior Pipe Work
Yes
Interior Pipe Work
Yes
Manholes
Yes
Sanitation
Yes
Tunneling
Yes
Features
Display
Large LCD
Grade Lock
Yes
Line Lock
Yes
Plumb Reference
LED plumb light
Sleep Mode/Auto Shut Off
Sleep Mode
General
Accuracy
±10 arc seconds
Cross Axis Leveling
Automatic
Diameter
3.8"
Dimensions
3.8" W x 10.5" L (96 mm x 267 mm)
Material
Cast Aluminum
Mount
Legs
Operating Temperature
-4 to 122 °F (-20 to 50 °C)
Protection Class
IPX8 water-submersible
Self-Leveling Range
-15% to +30%
Tripod Thread
5/8 x 11
Weight
4.4 lbs (2 kg)
Grade/Slope
Display
0.001% increments
Entry
Rolling counter
Range
-10% to +25%
Laser
Color
Green
Type/Wavelength
Visible / 520 nm
Remote Control
Display
No
Operating Range
Front: 500 ft. (150 m)/Rear: 35 ft. (10 m)
