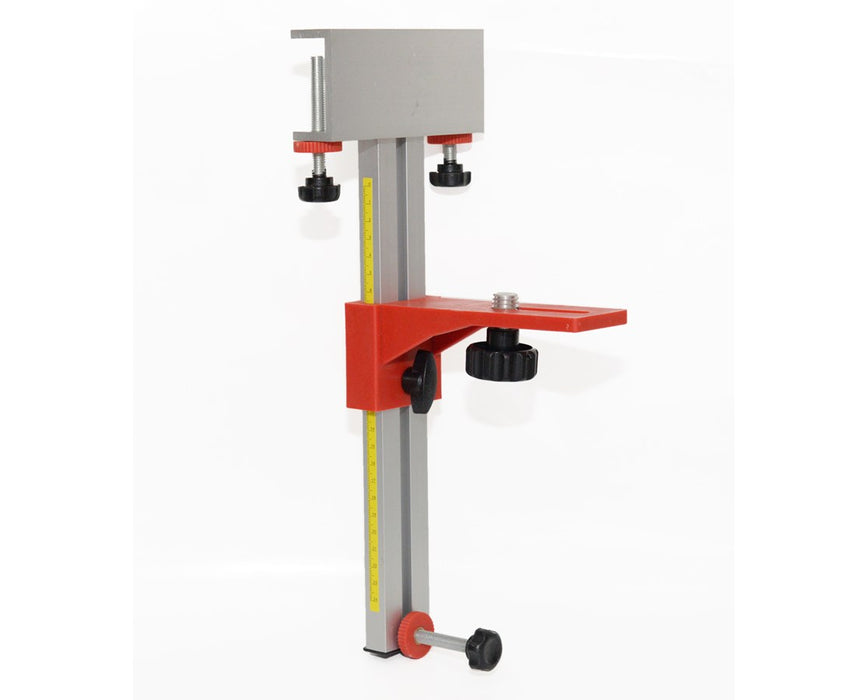

Multifunctional Wall Bracket (for Wood)

The AdirPro 790-72 multifunctional wall bracket is the affordable option to firmly secure your laser to any wooden ledge. It is designed for security and durability.

The bracket can secure to a ledge by using the 2 screw clamps beneath the lip of the top lip of the brace. At the bottom of the bracket there is a screw knob to make the bottom flush with the securing surface so that it doesn't shift and remains secure. If the surface isn't flat, the knob is adjustable to accommodate uneven surfaces and ledges.

Once the bracket is secured the laser can be attached firmly and adjusted both in the vertical and stacked positions. The screw knob that attaches the laser has a 5/8" thread. (If your laser has a 1/4" thread, you can use the 765-12 adapter.)

The distance of the laser from the back of the bracket to the securing screw knob can be adjusted from 2.5"-5". The vertical height of the laser can be adjusted to any height over 8.375" range. There is a guide on the side of the bracket with increments of 24cm. To adjust, all you need to do is turn the locking knob counter clockwise, shift the position, and then turn the knob back clockwise as far as you can.

The bracket itself is made of rugged steel and heavy duty plastic and is backed by AdirPro's standard limited lifetime warranty.

Note: When using clamps to secure bracket, be sure the clamps are completely secure prior to use
