MSHA Mining Long Range Alignment Laser

MFR#: 40-6260
TIGER#: TS42385
Original price USD $1,716.00 - Original price USD $1,716.00
Original price List Price: USD
USD $1,716.00
USD $1,716.00 - USD $1,716.00
Current price USD $1,716.00
MSHA Mining Long Range Alignment Laser
MSHA Mining Long Range Alignment Laser - USD $1,716.00
USD $1,716.00
*Must Purchase 1 for MSHA Mining Long Range Alignment Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 7 - 10 Business Days Shipping Date By: 8/7/2024

? California Proposition 65 WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

One of our Sales Experts will be in touch!

  • Choice of Red or Green beam
  • Long-range up to 2,000 or 3,000 ft.
  • Battery life up to 85-100 hours
  • Intrinsically safe and MSHA approved
  • Precision alignment with self-cleaning threads
  • 20x brighter than standard lasers
  • Water and oil proof to IP67 standards
  • Reflective film for headlamp illumination

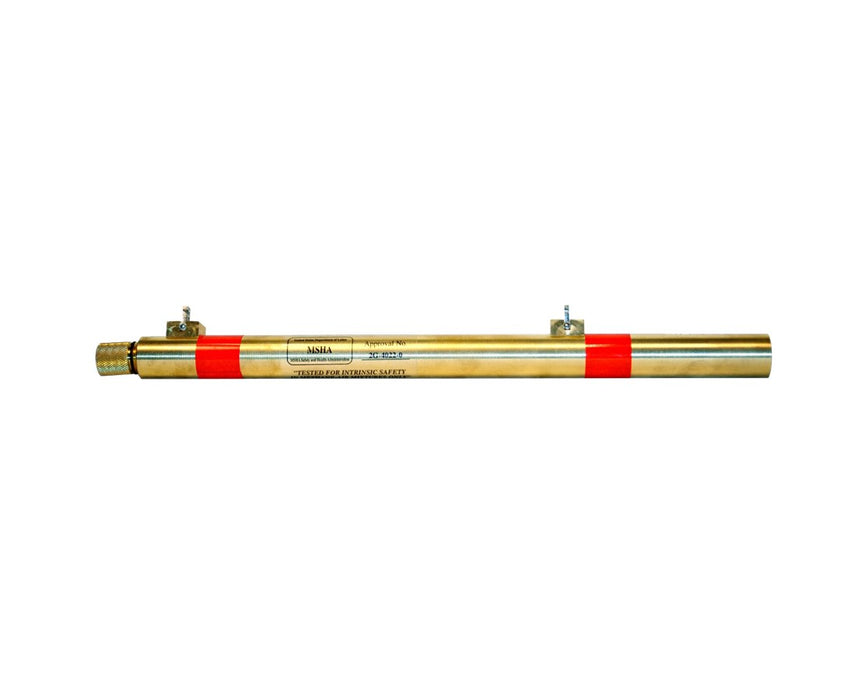

The Johnson Level MSHA Mining Long Range Alignment Laser is used by mining companies for operation of equipment that requires precise alignment to operate properly. It is intrinsically safe and MSHA (Mining, Safety & Health Administration) approved that do not require explosion proof containment. Can be used in above ground and underground operations and extremely rugged with 12mm optics for a small dot at a distance. Ideal for use when a long range is required.

The precision beam alignment of Johnson Level MSHA Mining Alignment Laser Long Range has self-cleaning threads that do not require any tools. The laser beam is aligned to be concentric with the outside diameter of the brass housing, this allows the installer to use the outside of the case for centering and positioning the beam. The large optics is 20 times brighter than standard lasers with a range of up to 2,000 feet for Red beam and 3,000 feet for the Green beam variation.

The "O" ring seal is water and oil proof to IP67 standards and the solid brass construction is proven to work in harsh environments. It also comes with a reflective film for headlamp illumination and an adjustable hanging brackets that connect to pads directly. The Johnson Level MSHA Mining Alignment Laser Long Range includes five "AA" alkaline batteries that last up to 85 to 100 hours of continuous use, an instruction manual, and 1-year warranty.

Configuration Options

The Johnson Level MSHA Mining Long Range Alignment Laser is available in 2 beam colors. Select your preference from the drop-down menu above.

  • 40-6260: Red Beam (Range up to 2,000 ft.)

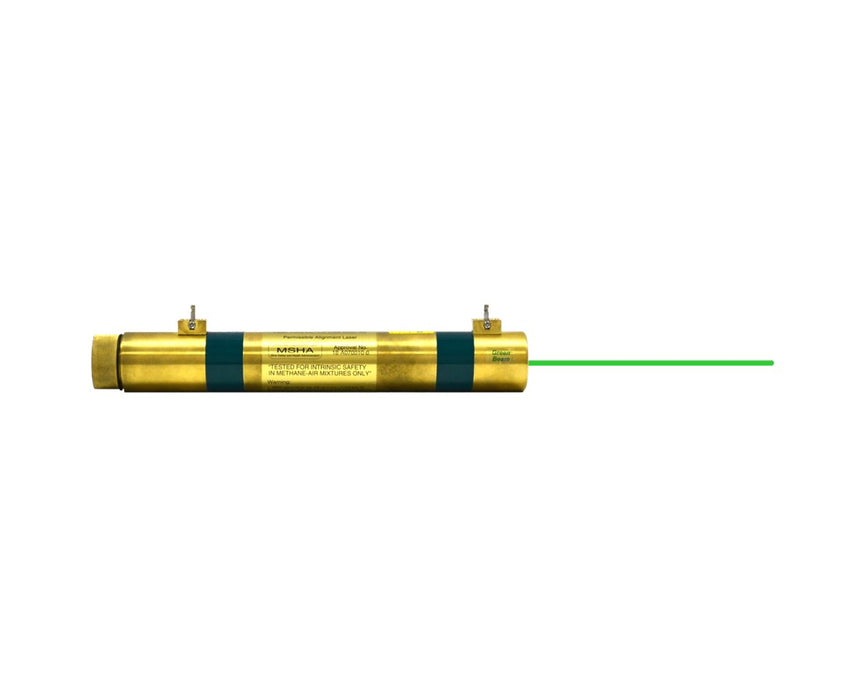

  • 40-6262: Green Beam (Range up to 3,000 ft.)
  • Range up to 2,000 ft. (Red beam) or 3,000 ft. (Green beam)
  • Intrinsically safe and MSHA approved
  • Laser beam is aligned to be concentric with the outside
  • Precision beam alignment - self-cleaning threads
  • Large optics - 20 times brighter than standard lasers
  • Battery life up to 85-100 hours of continuous use
  • "O" ring seal - water and oil proof to IP67 standards
  • Solid brass - proven to work in harsh environments
  • Reflective film for headlamp illumination
  • For use when long range is required

What’s in the Box

  • Johnson Level MSHA Mining Long Range Alignment Laser
  • Adjustable pad hanging tabs
  • 5 "AA" alkaline batteries
  • User manual
  • 1-year warranty

Available Package Options

Beam Color: Red (up to 2,000 ft.) or Green (up to 3,000 ft.)

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Battery/Power
Operating Temperature
14ºF to 122ºF (-10ºC to 50ºC) 40-6260 59ºF to 95ºF (15ºC to 35ºC) 40-6262
Operating Time
Approximately 85 hours
Power Source
40-6260 5 "AA" alkaline batteries (included)
Features
Environmental Class
IP67
General
Dimensions
15" x 1" (381 x 25mm)
Laser Class
Class IIIa
Laser Type
532nm (Green), 635nm (Red)
Warranty
1-year warranty
Weight
1.5 lbs. (0.68kg) 40-6260 and 4 lbs. (1.81kg) 40-6262
Measuring Capabilities
Beam Direction
Less than .15 mrad
Leveling Accuracy
±1/8"/100 ft. (±1mm/10m)
Working Range
Up to 2000 ft. (610m) 40-6260 and 3000 ft. (910m) 40-6262 depending upon light conditions
