MC200 DepthMaster Digging Machine Control Receiver

by Leica
MFR#: 742685
TIGER#: TS13954
Original price USD $1,530.00 - Original price USD $1,530.00
Original price List Price: USD $1,530.00
USD $2,030.00
USD $2,030.00 - USD $2,030.00
Current price USD $2,030.00
MC200 DepthMaster Digging Machine Control Receiver
MC200 DepthMaster Digging Machine Control Receiver - USD $2,030.00
USD $2,030.00
*Must Purchase 1 for MC200 DepthMaster Digging Machine Control Receiver

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Ships Out Within: 24 - 48 Hours Shipping Date By: 7/17/2024

One of our Sales Experts will be in touch!

Works with any rotary laser, the Leica MC200 Depthmaster Digging System controls the proper grade on construction and agricultural machines. This machine control receiver can be installed on any excavator or back-hoe and can be easily set-up in minutes. It is integrated with a 200-degree reception angle and a built-in plumb indicator that monitors the excavator’s dipper arm vertically for consistent and accurate grade readings.

This Leica machine control receiver features two detection accuracies - fine and coarse. It also has an 8.3-inch capture height for an easier reception of the laser beam. With its highly visible LED indicators, it is perfect for any harsh weather. The Leica MC200 includes an energy preservation function which is deactivated with the "Shake-2-Wake" feature – reactivate the Depthmaster by shaking the excavator's arm.

The MC200 Depthmaster features a standby mode and an auto shut-off function that automatically turns off the device after 90 minutes of inactivity. Using NiMH battery pack, it works up to 48 hours of continuous use. In addition, this Leica machine control receiver is dustproof and water resistant.

Please Note: The base model 742685 does not include battery or charger.

Configuration Options

The Leica MC200 Depthmaster Digging System is available in different brackets. Please select your preference from the menu above.

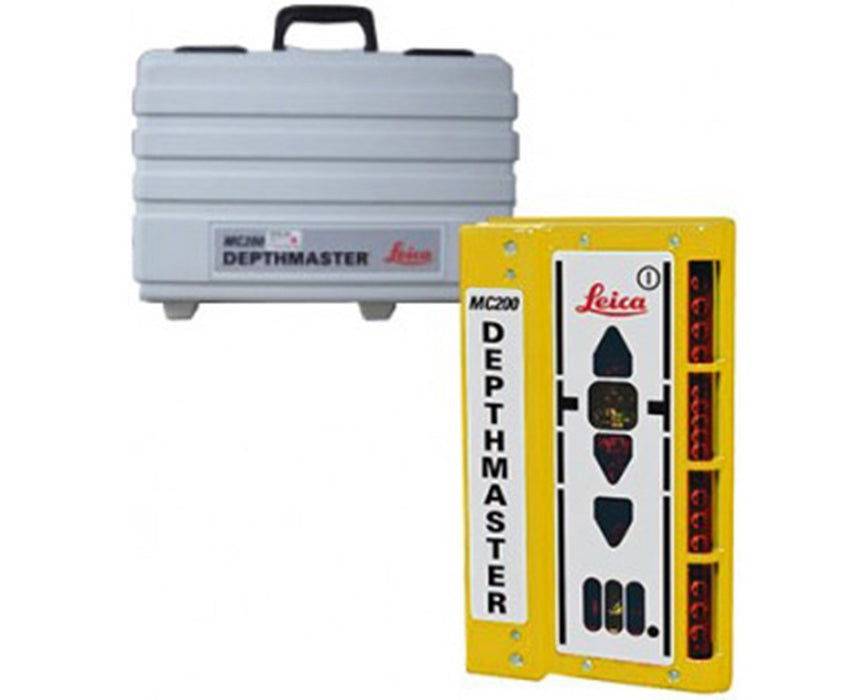

  • 742685: MC200 with Carrying Case Only

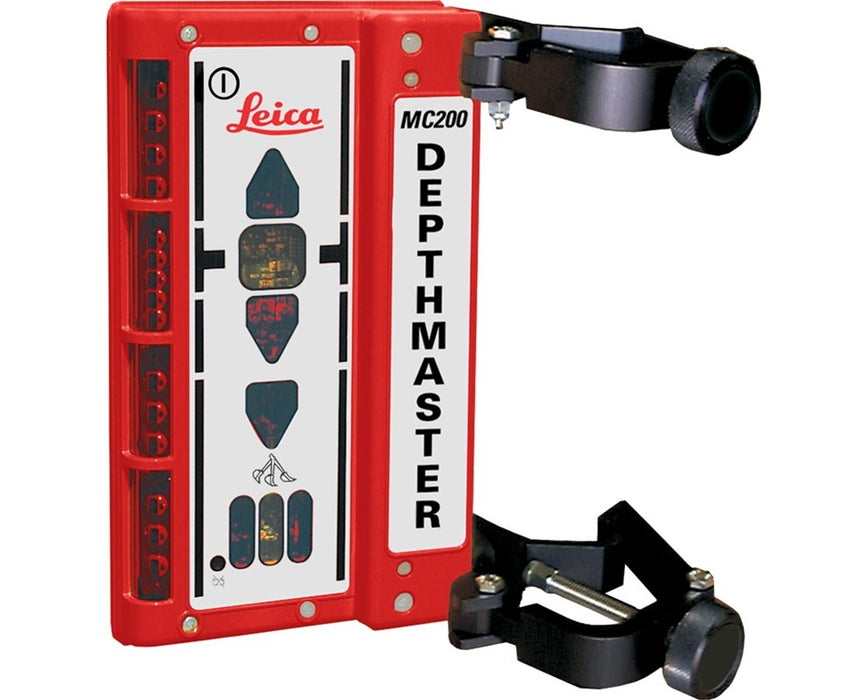

  • 742438: MC200 with Clamp-on Bracket

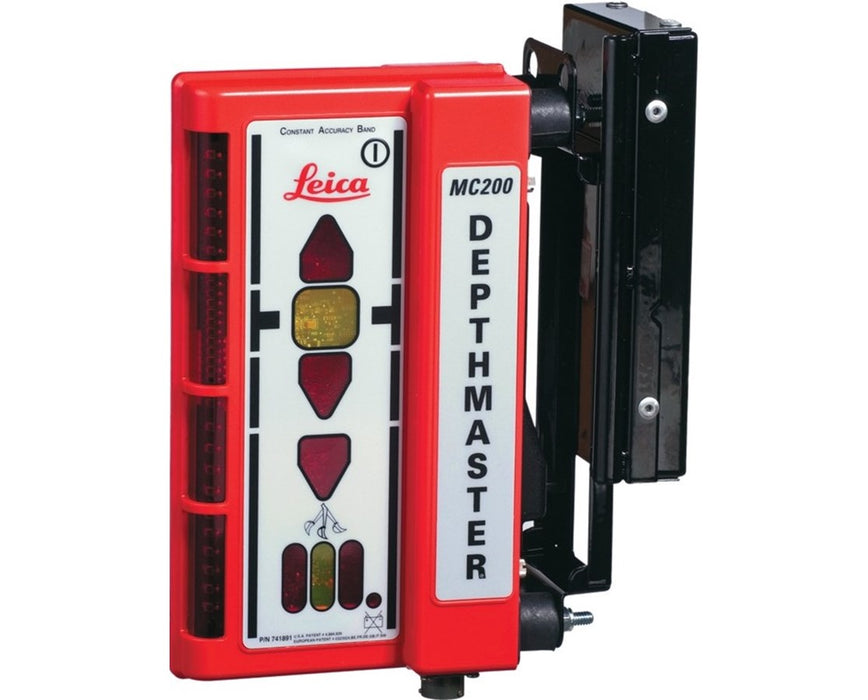

  • 742440: MC200 with Magnetic Bracket
  • 742701: MC200 with Clamp-on and Magnetic Brackets
  • Choice of bracket
  • 200° reception angle
  • Works with any rotating laser
  • Built-in plumb indicator
  • Two detection accuracies
  • 8.3" capture height
  • Shake-2-Wake functionality reactivates the device by shaking the excavator's arm
  • Ultra-bright LED indicators
  • Memory saving of last beam signal
  • Auto shut-off
  • IP67 dustproof and water-resistant
  • 48-hour battery life

Leica Geosystems products are special order only.

We do not accept returns or cancellations for special ordered items.

Accuracy
Coarse
±12 mm
Fine
±4 mm
Battery/Power
Battery Life
Up to 48 hours
Low Battery Indicator
Yes
Power Source
Rechargeable NiCad battery pack
Features
Automatic Shutoff
After 90 minutes
Laser Detection Height
8.3 inches
Last Beam Memory
Yes
LED Indicators
On-grade, Above, Below (front and back)
Plumb Indicator
±0.75° to 1.25°
Reception Angle
200 degrees
General
Dimensions
10" L x 5.7" W x 3" H
Protection Class
IP67 dustproof & water immersible up to 3 feet (1 m)
Type of Attachment
Clamps (742438); magnetic bracket (742438); clamp and magnet (742701)
Warranty
1-year
Weight
6 lbs (2.7 kg)
Temperature
Operating
0 to 115 °F (-18 to 46 °C)
Storage
-10 to 150 °F (-23 to 65 °C)
