Magnetic Sheave Alignment Laser

MFR#: 40-6201
TIGER#: TS96473
Original price List Price: $1,152.90
You Save: $298.90 -26%
Original price $1,152.90 - Original price $1,152.90
Original price List Price: $1,152.90
Current price $854.00
$854.00 - $854.00
Current price $854.00
Magnetic Sheave Alignment Laser
Magnetic Sheave Alignment Laser - $854.00
$854.00
*Must Purchase 1 for Magnetic Sheave Alignment Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 7 - 10 Business Days Shipping Date By: 4/30/2024

One of our Sales Experts will be in touch!

  • Used to Align Pulleys, Sheaves, Drivetrain
  • Detects Misalignment (Offsets, Angles, Twists)
  • Used to Check Height & Flatness of Mounting Plates
  • Constructed w/ Rare Earth Magnets
  • Accuracy of ±1/16 inches at 10 feet
  • Working Range of 50 Feet
  • IP54 Water & Dust Resistance

The Johnson Level Magnetic Sheave Alignment Laser is a reliable device used by contractors to accurately align pulleys, sheaves, drivetrain, and conveyor surfaces using a tightly controlled beam of light. It effectively detects misalignment, especially offsets, angles, and twists, and helps in reducing power losses, bearing wear, and noise on gears. This laser can also be used to check the height and flatness of motor and gear box mounting plates, making it a versatile tool for the professional.

Durable & High-Quality Construction: This Johnson Level Laser emits a bright beam for accurate alignments, comes in a compact size that can easily fit on small diameter sheaves, and is designed to have an easy setup for a more efficient use. It is constructed with rare earth magnets that allows a secure attachment to ferrous metals, has an accuracy of ±1/16 inches at 10 feet, and a working range of up to 50 feet.

This laser has an IP54 Protection Class, providing dust and water resistance for the laser device, and has an included Pulley Offset Chart that provides an accurate misalignment angle for the user. Together with the Alignment Laser device, the package also includes three (3) precision-machined magnetic targets, two (2) "AA" Alkaline Batteries, and a hard-shell carrying case. It is covered by a 1-year warranty, providing durability and reliability for long term use.

Product Options

The Johnson Level Magnetic Sheave Alignment Laser comes in two variations that differ in the beam emitted by each device. You can choose the standard laser with Red Beam, or the laser with green beam which features the GreenBrite Technology, emitting a 400% brighter beam, especially on sunny or highly-lit conditions. Kindly choose your preference on the options menu above.

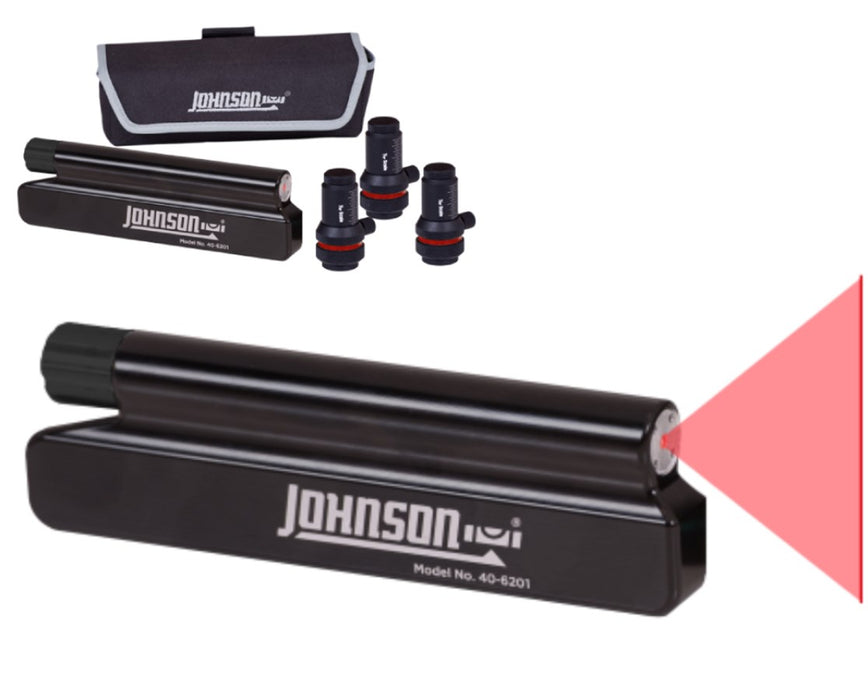

  • Laser w/ Red Beam (40-6201)

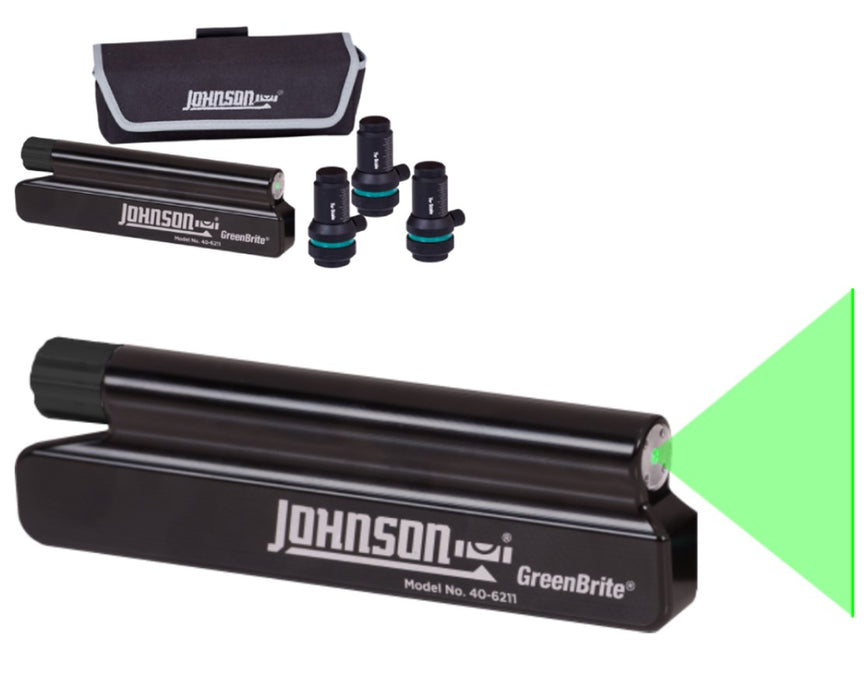

  • Laser w/ Green Beam (40-6211)

What’s in the Box

  • Johnson Level Magnetic Sheave Alignment Device
  • (3) Precision-Machined Magnetic Targets
  • (2) "AA" Alkaline Batteries
  • Hard-shell carrying case

Available Package Options

Beam Color: Red or Green

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Battery/Power
Operating Temperature
23°F to 104°F
Operating Time
2 Hrs (Red); 4 Hrs (Green)
Features
Environmental Class
IP54
Functions
Vertical Aligning
Yes
General
Dimensions
6.7" x 1.9" x 0.7"
Laser Class
Class II
Laser Type
635nm±10nm (Red); 520nm±10nm (Green)
Warranty
1 Year
Weight
1.2 lbs.
Measuring Capabilities
Leveling Accuracy
±1/16"/10'
Number of Lines (Planes)
1
Working Range
Up to 100'
