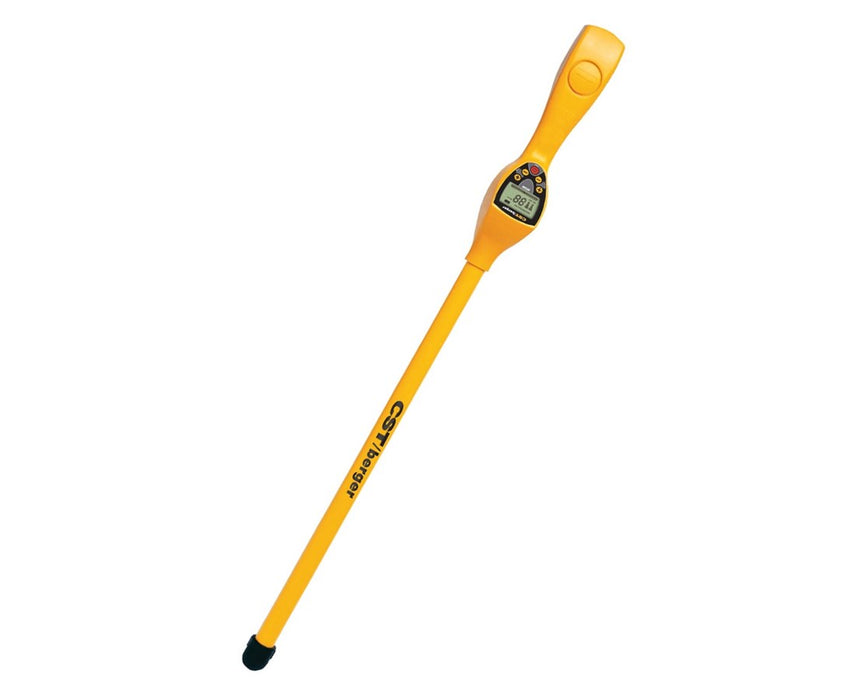

Magna-Trak MT200 Magnetic Locator

MFR#: 19-200SC
TIGER#: TS9273
Original price List Price: $886.84
You Save: $287.84 -32%
Original price $886.84 - Original price $886.84
Original price List Price: $886.84
Current price $599.00
$599.00 - $599.00
Current price $599.00
Magna-Trak MT200 Magnetic Locator
Magna-Trak MT200 Magnetic Locator - $599.00
$599.00
*Must Purchase 1 for Magna-Trak MT200 Magnetic Locator

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 5 - 7 Business Days Shipping Date By: 6/30/2024

One of our Sales Experts will be in touch!

  • Depth detection up to 20 inches
  • Quick-change battery compartment
  • Magnetic speaker with waterproof Mylar cone
  • Adjustable sensitivity
  • Audio & visual alerts
  • LCD display with graph
  • Power line warning
  • Battery life up to 100 hours

The CST/berger Magna-Trak 200 magnetic locator 19-200SC detects magnetic fields emitted by underground ferrous and ferromagnetic objects. Ferrous objects contain iron while ferromagnetic objects contain iron, cobalt, or nickel. On the LCD display, users can see a peak response and hear an audio signal through the speaker. Both of these signals let you know when your Magna-Trak magnetic locator has located an object within a 20" depth. With its rust-proof aluminum and plastic construction, this waterproof magnetic locator is built for detecting objects in rain, snow, and other wet environments. With power line indication, single-hand operation, and adjustable sensitivity, the MT200 serves as an asset to any ferromagnetic locating job. And the MT200’s carrying case protects it as you travel from one job site to the next.

Selective Magnetic Location

The CST/berger MT200 detects only ferromagnetic objects. This means you do not have to worry about erroneous objects affecting your location accuracy. Such interruption can occur with objects made of aluminum, brass, or copper.

Two-Way Visual and Audio Response

When the Magna-Trak 200 finds an object, it gives off a digital, numeric response as well as a bar graph on the LCD display. Higher numbers and a wider graph indicate a stronger signal. The CST/berger MT200 also produces a deep tone audio signal that can be adjusted at any time.

Functional Keypad for Managing Features

The MT200’s ergonomic handle makes it easy to manage its functions with the push of a button. This keypad includes a power button, two buttons to increase or decrease sensitivity, and two buttons to increase or decrease the audio alert volume. There is also an optional "Erase" function button that prevents nearby magnetic interference from affecting your location (available in the MT202 only). You can monitor your battery life and the presence of power lines right on the display. A quick-change battery compartment makes switching out dead batteries fast and easy.

Waterproof and Portable

Rugged aluminum and lightweight plastic keep the MT200 both waterproof and lightweight. You can even submerge your magnetic locator underwater up to its plastic casing to locate objects. And when the job is complete, pack the Magna-Trak 200 magnetic locator into its padded carrying case.

MT200 Package

With this package, you will receive the CST/berger MT200 magnetic locator, soft case, and a 7-year warranty.

  • Locates iron, cobalt, and nickel
  • 20" depth detection
  • Adjustable sensitivity
  • Ergonomic handle
  • Audio and visual alerts
  • Magnetic speaker with waterproof Mylar cone
  • Signal volume control
  • LCD display with graph
  • Optional anti-magnetic interference "Erase" function (MT202 only)
  • Uses 6 "AA" batteries
  • Power line warning
  • Low battery indicator
  • Quick-change battery compartment
  • Magnetic toroidal sensors and sophisticated electronic balancing circuitry
  • Hard rubber tip
  • Water resistant
  • 0°F to 120°F operating temperature
  • Up to 100 hours battery life
  • Detector length: 42 3/4”
  • Detector weight: 3 lbs
  • 7-year warranty

What’s in the Box

  • CST/Berger Magna-Trak MT200 Magnetic Locator with Soft Case 19-200SC
  • 7-year warranty

Available Product Options

  • Model: MT200 or MT202
  • Magnetic Interference Erase: Optional

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges and a 15% Handling Fee. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Applications
Detects Cobalt
Yes
Detects Iron
Yes
Detects Nickel
Yes
Battery/Power
Alkaline Battery/Life
6 x AA / Up to 100 hours
Low Battery Alert
Yes
Features
Audio Alert
Yes with volume control
Display
LCD
Power Line Alert
Yes
Visual Alert
Yes
General
Depth Detection
Up to 20 inches (0.5 m)
Dimensions
43" L (109 cm)
Operating Temperature
0 to 120 °F (-18 to 49 °C)
Protection Class
Water resistant
Sensitivity
Adjustable
Warranty
7-year
Weight
3 lbs (1.3 kg)
