LR20 Machine Control Laser Receiver

TIGER#: TS25424
Original price $1,073.26 - Original price $1,073.26
Original price List Price:
$1,060.00
$1,073.26 - $1,073.26
Current price $1,060.00
LR20 Machine Control Laser Receiver
LR20 Machine Control Laser Receiver - $1,060.00
$1,060.00
*Must Purchase 1 for LR20 Machine Control Laser Receiver

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 2 - 4 Business Days Shipping Date By: 6/26/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
Magnetic Mount
Magnetic Mount
Details
$255.16
  • Detection accuracies: 3
  • 360-degree reception angle
  • Built-in plumb indicator
  • Display channels: 5
  • Center and offset on-grades
  • 8-inch capture height
  • Super bright LED indicators
  • Battery life up to 35 hours

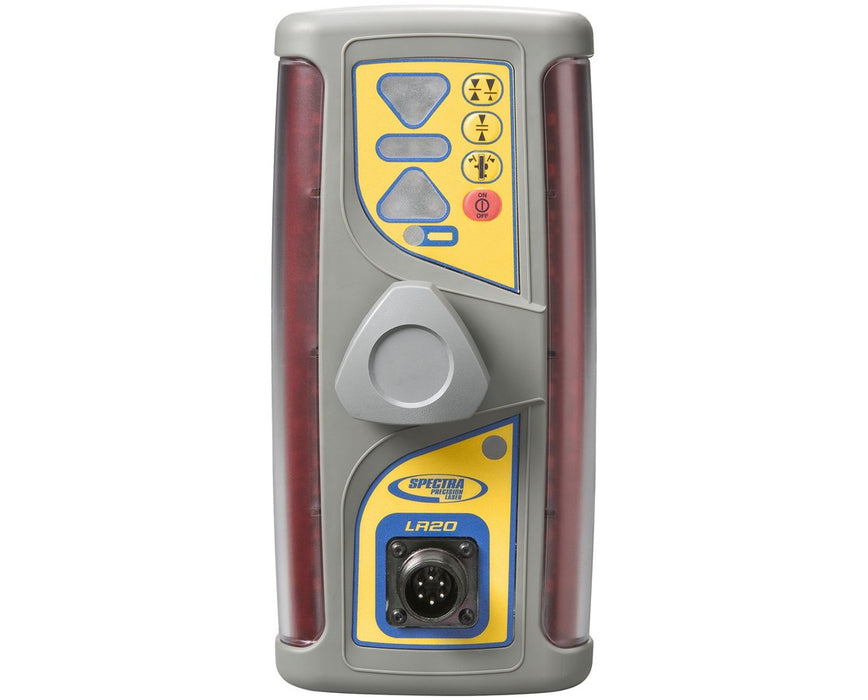

The Spectra LR20 Machine Control Laser Receiver allows compact machines to achieve tighter tolerances without the need for a grade checker. It is perfect for landscaping, building pods, sports fields, concrete flatwork, storm drains, general construction grading and depth control applications. This machine control receiver features a built-in plumb indicator and a 360-degree reception angle to ensure maximum laser control across the job site. Also, it provides three detection accuracy settings to meet job site requirements.

The LR20 offers five display channels that aid in grading applications. With an eight-inch capture height, the laser reception provides increased working area and range. Also, this laser receiver comes with super bright LED indicators that give superior depth and elevation indication. It includes an easy push button setup for ease of use and application flexibility. Plus, it comes with a center and offset on-grades are ideal for both grading and excavation applications.

The Spectra LR20 is powered by NiMH batteries that can operate up to 35 hours. To save battery, it has an auto shut-off function that immediately shuts off after 75 minutes of inactivity. Rugged and water resistant, the LR20 is made of polycarbonate housing and elastomer over molding that is designed to last for years.

Configuration Options

The Spectra LR20 Machine Control Laser Receiver offers two packages with an optional mount. Both are supported by a two-year manufacturer’s warranty. Please choose from the drop-down menu above.

  • LR20: Receiver Only

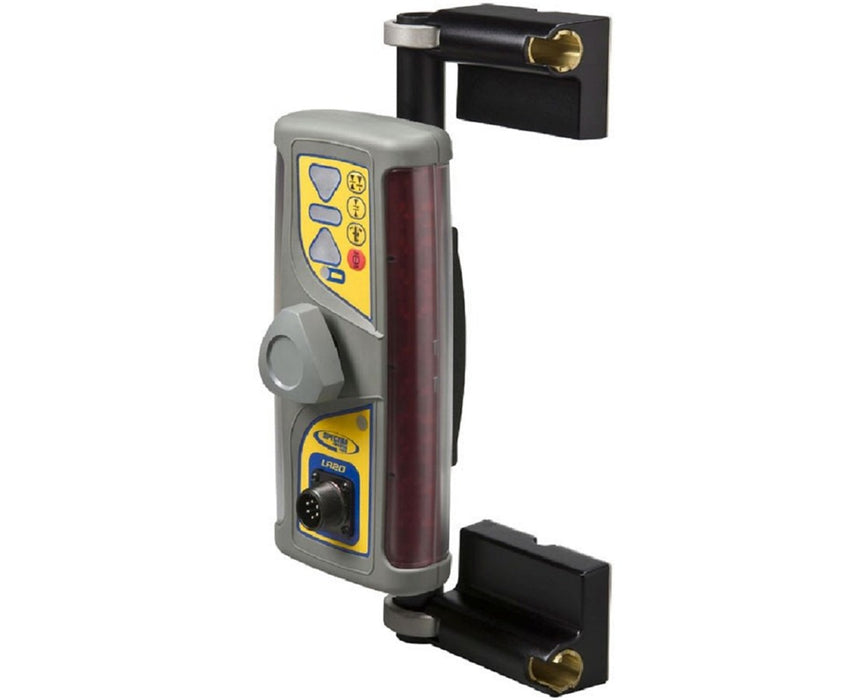

  • LR20-1: With Mini Magnetic Mount
  • Optional magnetic mount
  • 3 detection accuracies
  • 360-degree reception angle
  • Built-in plumb indicator
  • 5 display channels
  • 8-inch capture height
  • Super bright LED indicators
  • Easy push button setup
  • Center and offset on-grades
  • Powered by NiMH batteries
  • 35-hour battery life
  • Auto shut-off
  • Polycarbonate housing and elastomer over molding

What’s in the Box

  • Spectra LR20 Machine Control Laser Receiver
  • Hard Carry Case
  • 5x NiMH Batteries
  • Charger 220V AC & Adapter
  • User Manual
  • 2-Year Manufacturer’s Warranty

Available Package Options

  • MMM Magnetic Mount: Optional

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Coarse
20 mm (grading); 50 mm (excavating)
Fine
5 mm (grading); 12 mm (excavating)
Medium
10 mm (grading); 25 mm (excavating)
Battery/Power
Battery Life
Up to 35 hours (alkaline) or 45 hours (NiMH)
Low Battery Indicator
Yes
Power Source
AA Alkaline or Rechargeable NiMH
Features
Automatic Shutoff
After 75 minutes
Channels
5
Laser Detection Height
8 inches
LED Indicators
On-grade, Above, Below
Plumb Indicator
±0.5°, ±1.5°, ±2.5°
Reception Angle
360 degrees
General
Dimensions
9.5" L x 4.38" W x 1.87" H
Housing
Aluminum-cast
Type of Attachment
Magnetic (optional)
Warranty
2-year
Weight
3 lbs (1.4 kg)
