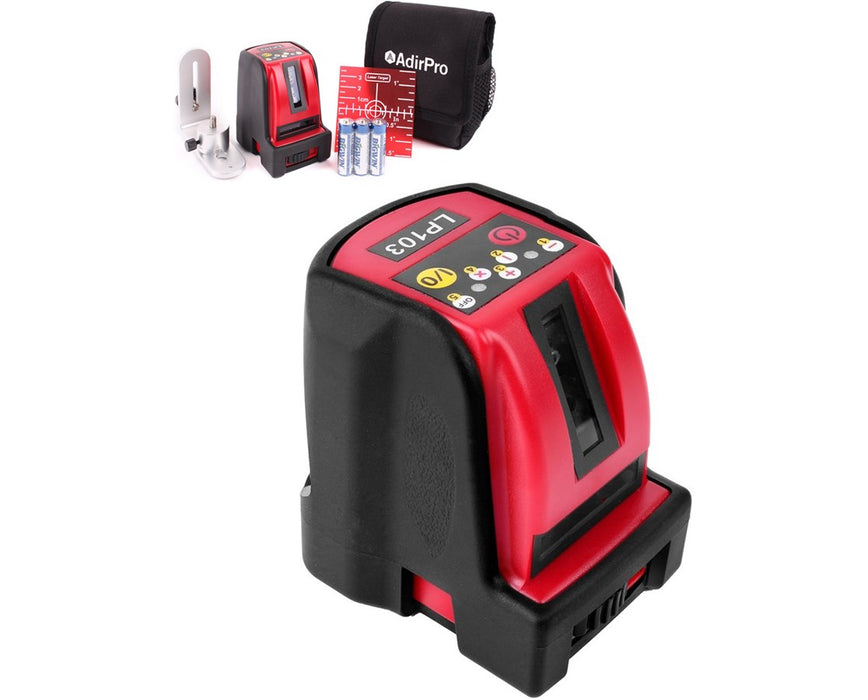

LP-103 Cross Line Laser Level

MFR#: 790-10
TIGER#: TS29698
Original price $129.00 - Original price $129.00
Original price List Price: .
$129.00
$129.00 - $129.00
Current price $129.00
LP-103 Cross Line Laser Level
LP-103 Cross Line Laser Level - $129.00
$129.00
*Must Purchase 1 for LP-103 Cross Line Laser Level

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 10 - 14 Business Days Shipping Date By: 5/8/2024

California Proposition 65 Warning. This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

One of our Sales Experts will be in touch!

  • Horizontal & vertical cross line beams
  • Self-leveling within ±3°
  • ±1/8" at 10 feet accuracy
  • Out-of-leveling range indicator
  • Four operation modes
  • Compact and lightweight
  • Built-in lock for compensator

AdirPro’s LP103 Cross Line Laser is a self leveling horizontal and vertical alignment tool with an accuracy of within 3 degrees. The two, independent line beams are generated from 10mw 635nm laser diodes. The beams generated have an accuracy of ±1/8 inch at 10 feet (±3mm at 3m).

Design

Small, and compact, this cross line laser is easy to handle. Weighing just 10 oz, this unit can fit in the palm of your hand. It’s easy to transport and has a minimal storage footprint.

The LP103 has a user friendly operation. The laser is operated with just one button (in addition to the power button) to switch between the 4 operation modes.

The heavy duty plastic is trimmed with a thick rubber casing to protect the model against standard bumps that occur during transportation and on a jobsite.

Leveling

The unit uses a magnetic damping compensator to provide a quick leveling. Once the unit levels itself, the highly visible horizontal and vertical beams stabilize, allowing you to use it for alignment almost immediately.

So long as the laser beam is a constant line you know that the laser is leveled. The unit will indicate that it is out of self-leveling range by changing the laser beam from being a constant line to a blinking one.

Additionally, there is a built-in locking system to ensure that the compensator does not shift during transportation due to vibrations.

Mounting Options

The threading of the LP103 Cross Line Laser nut is ¼”. It comes with a coordinating standard L-shaped mounting bracket. The laser can be mounted directly to the bracket (once it’s secured to the wall) or onto a tripod that has a ¼” threading (or if you have a 5/8” to ¼” male adapter). As an extra bonus, there is a ¼” adapter included so that you can secure the bracket to a tripod and the unit to the bracket.

Accessories

The LP103’s standard outfit includes laser, wall mount, securing adapter, soft, red target, and a soft carrying case. Your first set of 3 AA batteries is included as well.

Click here to compare all AdirPro's line lasers

  • Horizontal & vertical cross line beams
  • Self-leveling within ±3°
  • ±1/8 inch at 10 feet accuracy
  • Out of leveling range indicator
  • Compact and lightweight
  • Built-in lock for compensator
  • Batteries included
  • Accessories included (mount, adapter, target, & case)

What’s in the Box

  • AdirPro LP-103 Cross Line Laser 790-10
  • Soft bag
  • Wall mount
  • Adapter
  • Target
  • (3) AA batteries
  • User manual
  • 2-year manufacturer's warranty

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Applications
Diagonals and Footings for Patios
Yes
Flooring and Tile Layout
Yes
Installing Drop Ceilings and Lights
Yes
Installing Windows and Partition Walls
Yes
Stud Plumbing and Alignment
Yes
Transferring Points from Wall to Wall
Yes
Battery/Power
Operating Time
up to 10 hours
Power Source
(3) AA batteries
Features
Self-Leveling
Yes
Tripod Thread
1/4"
Functions
Aligning at an Angle
Yes
Horizontal Leveling
Yes
Setting out Right Angles
Yes
Vertical Aligning
Yes
Vertical and Horizontal Aligning
Yes
General
Dimensions
3.75" x 2.75" x 4"
Laser Class
Class 2M
Warranty
limited lifetime
Weight
10 oz (without batteries)
Measuring Capabilities
Beam Direction
Horizontal & Vertical
Leveling Accuracy
± 1mm / 3m
Number of Lines (Planes)
2
Self-Leveling Range
±3°
