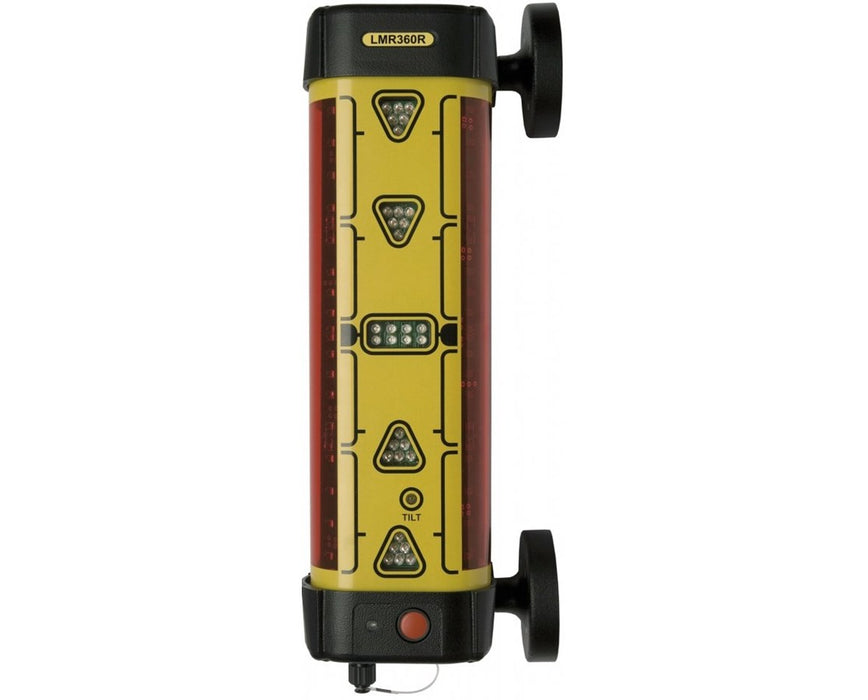

LMR-360R Machine Control Receiver

by Leica
MFR#: 6009892
TIGER#: TS22208
Original price $1,695.00 - Original price $1,695.00
Original price List Price: $1,695.00
$1,695.00
$1,695.00 - $1,695.00
Current price $1,695.00
LMR-360R Machine Control Receiver
LMR-360R Machine Control Receiver - $1,695.00
$1,695.00
*Must Purchase 1 for LMR-360R Machine Control Receiver

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Ships Out Within: 24 - 48 Hours Shipping Date By: 6/24/2024

One of our Sales Experts will be in touch!

Documents
  • Magnet and clamp mount
  • 360-degree reception angle
  • Built-in vertical indicator
  • Two detection accuracies
  • LED indicators
  • 9.75-inch capture window
  • Battery life of 30 hours
  • IP67 dustproof & water immersible

With accurate grade control, built-in vertical indicator and the option of clamps or magnetic mounting brackets, the Leica LMR-360R Machine Control Receiver is the perfect for all visual machine control applications. When used with a rotating laser, this machine mounted receiver detects the beam through a 360-degree reception angle, picking up the laser from any angle. Also, it provides two detection accuracies for a quick on-grade operation.

The LMR-360R features LED indicators that show the position of cutting edge in relation to the laser reference beam. Also, it comes with seven display channels in coarse mode and nine display channels in fine mode. Featuring a 9.75-inch capture window, it aides for a quick on-grade operation. Plus, this machine control receiver stores the memory of the last beam signal.

This Leica machine control laser receiver uses rechargeable NiMH batteries that give a long 30-hour battery life. To save battery, it features an auto shut-off function. Having an IP67 rating, the LMR-360R is dustproof and water resistant. In addition, it includes built-in shock mounts that minimize machine vibrations.

Configuration Options

The Leica LMR-360R Machine Control Receiver offers two packages that offer an optional LMD360R remote display. All are backed up with one-year manufacturer’s warranty.

  • 6009892: LMR360R Receiver Only
  • 773556: LMR360R Receiver (868MHz) w/ Clamps
  • 6009893: LMR360R Receiver w/ LMD360R Remote Display
  • 773557: LMR360R Receiver (868MHz) w/ Magnetic Brackets
  • 6003352: LMR360R Receiver (868MHz) w/ Clamps & Remote Display
  • 6003353: LMR360R Receiver (868MHz) w/ Magnetic Brackets & LMD360R Remote Display

The LMD360R Remote Display is a clear remote display panel that mounts to the windshield with a heavy-duty suction cup and displays nine channels of the receiver without blocking the operator’s view.

  • Optional remote display
  • Magnet and clamp mount
  • 360-degree reception angle
  • Built-in vertical indicator
  • Two detection accuracies
  • LED indicators
  • 7 display channels (coarse mode)
  • 9 display channels (fine mode)
  • 9.75-inch capture window
  • Memory of last beam signal
  • Auto shut-off
  • 30-hour battery life
  • Rechargeable NiMH battery
  • Built-in shock mounts
  • Dustproof and water resistant, IP67 rating

What’s in the Box

  • Leica LMR-360R Machine Control Receiver
  • Carrying case
  • Clamps
  • Magnets
  • Charger
  • NiMH rechargeable batteries
  • User manual
  • 1-year manufacturer’s warranty

Available Package Options

  • LMD360R Remote Display: Optional

Leica Geosystems products are special order only.

We do not accept returns or cancellations for special ordered items.

Accuracy
Coarse
±12 mm
Fine
±6 mm
Battery/Power
Battery Life
Up to 30 hours
Charging Time
Up to 12 hours
Low Battery Indicator
Yes
Power Source
NiMH rechargeable battery
Features
Channels
9 - Fine, 7 - Coarse
Laser Detection Height
9.75 inches
Last Beam Memory
Yes
LED Indicators
Blinking (for accuracy settings and out-of-beam indication)
Plumb Indicator
±5 degrees
Reception Angle
360 degrees
Remote Display
Optional; 100 ft frequency range
General
Dimensions
14.75" L x 3" W x 4.25" H
Protection Class
IP67 dustproof & water immersible up to 3 feet (1 m)
Type of Attachment
Magnet and clamps (included)
Warranty
1-year
Weight
4 lbs (1.81 kg)
