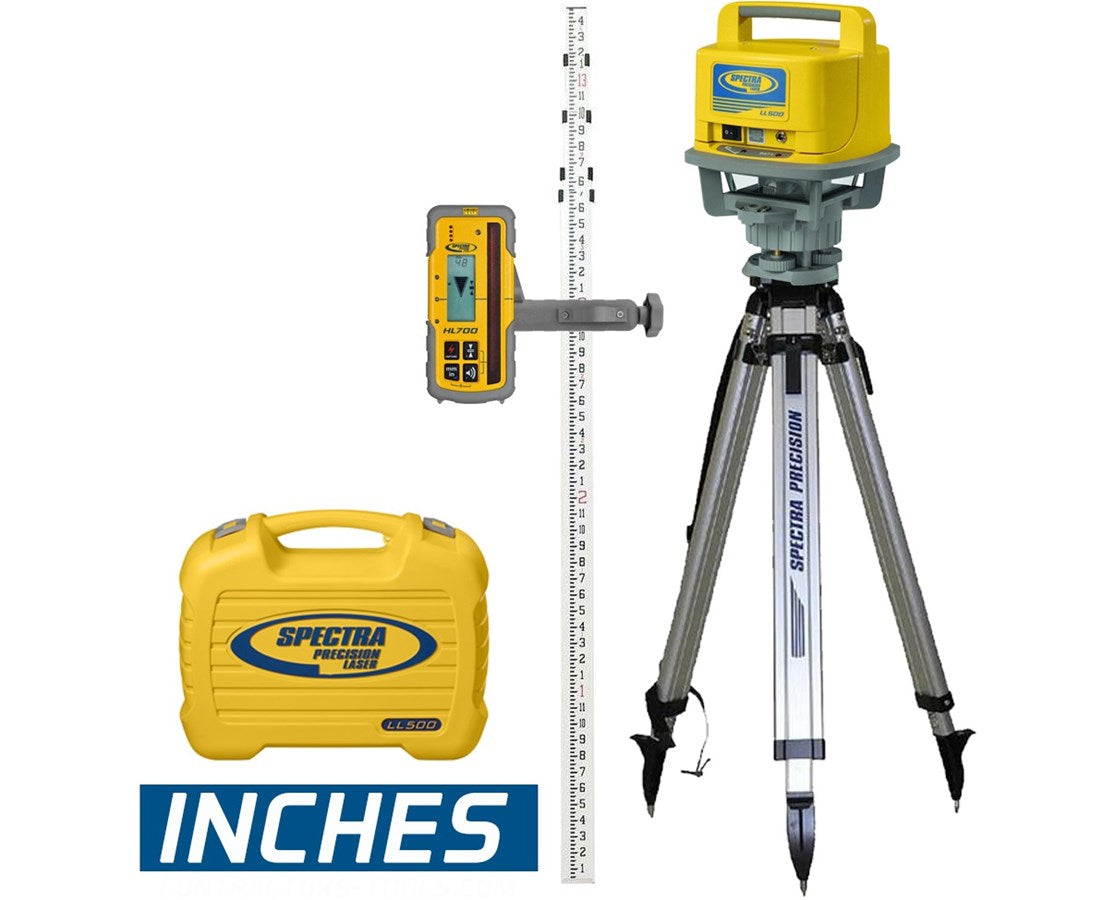

LL500 Self-Leveling Rotary Laser w/ HL700 Receiver, Alkaline Battery, Tripod & 15' Grade Rod (Feet/8ths) & Tripod Case

The Spectra Precision LL500 Laser Level is self-leveling within ±11 arc minutes – less than one degree. The highly visible beam automatically locates the laser plane and the automatic leveler helps level the instrument on a tripod. Transmitting a 360-degree laser reference, the LL500 is accurate up to ±1/16 inch at 100 feet and has a working range of up to 1,600 feet.

With an easy one-button operation, the Spectra LL500 self-leveling laser is ideal for digging septic tanks, checking foundations or elevations, taking grade shots, or setting forms. It also has an out-of-level alert that automatically shuts off the beam if it is bumped out of level.

The Spectra LL500 laser level features temperature compensation that enables the laser to adjust and work despite temperature changes. In addition, the housing is rugged enough for daily use on construction sites. The LL500 laser level works up to 100 hours using the rechargeable batteries and up to 175 hours with alkaline batteries.

Configuration Options

The Spectra LL500 comes with an optional HL700 receiver that locates the laser beam outdoors or in limited visibility. It features an anti-strobe sensor and a digital readout of elevation that is switchable in millimeters, centimeters, feet, inches, or fractional inch.

The optional Spectra CR600 laser detector can be machine mounted or rod mounted to allow more flexibility on the job site. It features wrap-around receiver cells with an operating range of 270 degrees which greatly reduces dead spots. Please select your preference from the menu above.

• LL500: With HL700 Receiver & Alkaline Battery
• LL500-1: With HL700 Receiver, Alkaline Battery, Aluminum Tripod & GR151 15' Grade Rod (Feet/10ths)
• LL500-2: With HL700 Receiver, Alkaline Battery, Aluminum Tripod & GR152 15' Grade Rod (Feet/8ths)
• LL500-3: With HL700 Receiver, Alkaline Battery, Aluminum Tripod & GR153 15' Grade Rod (Metric)
• LL500-4: With HL700 Receiver & Rechargeable Battery
• LL500-10: With CR600 Receiver & Alkaline Battery
• LL500-14: With CR600 Receiver & Rechargeable Battery

	No Cost 5-Year Warranty offers no repair charge for parts and labor of the laser.
	A hard-shelled, portable System Case.
	Active Temperature Compensation gives accurate, stable results regardless of temperature changes.
