LL500 360-Degree Self-Leveling Rotary Laser

TIGER#: TS12322
Original price List Price: $1,600.00
You Save: $304.00 -19%
Original price $1,600.00 - Original price $1,600.00
Original price List Price: $1,600.00
Current price $1,296.00
$1,296.00 - $1,296.00
Current price $1,296.00
LL500 360-Degree Self-Leveling Rotary Laser
LL500 360-Degree Self-Leveling Rotary Laser - $1,296.00
$1,296.00
*Must Purchase 1 for LL500 360-Degree Self-Leveling Rotary Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 6/20/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$43.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$651.60
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Range up to 1,600 feet with laser receiver
  • Self-leveling range ±11 arc minutes
  • Accuracy ±1/16 inch at 100 feet
  • Temperature compensation
  • Out-of-level alert
  • 360-degrees reference
  • IP66 dustproof & powerful water jet resistant
  • Thread 5/8-11

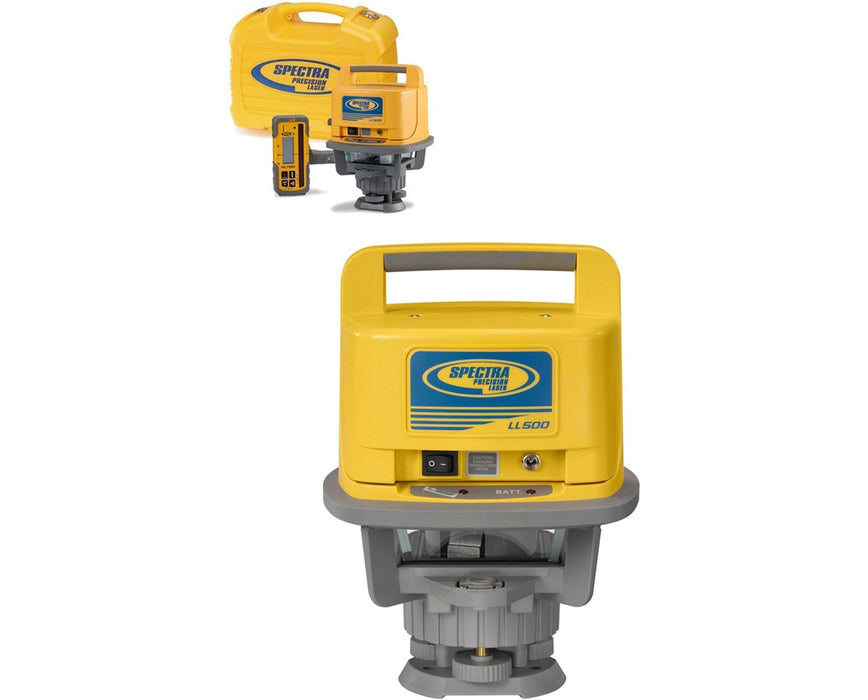

The Spectra Precision LL500 Laser Level is self-leveling within ±11 arc minutes – less than one degree. The highly visible beam automatically locates the laser plane and the automatic leveler helps level the instrument on a tripod. Transmitting a 360-degree laser reference, the LL500 is accurate up to ±1/16 inch at 100 feet and has a working range of up to 1,600 feet.

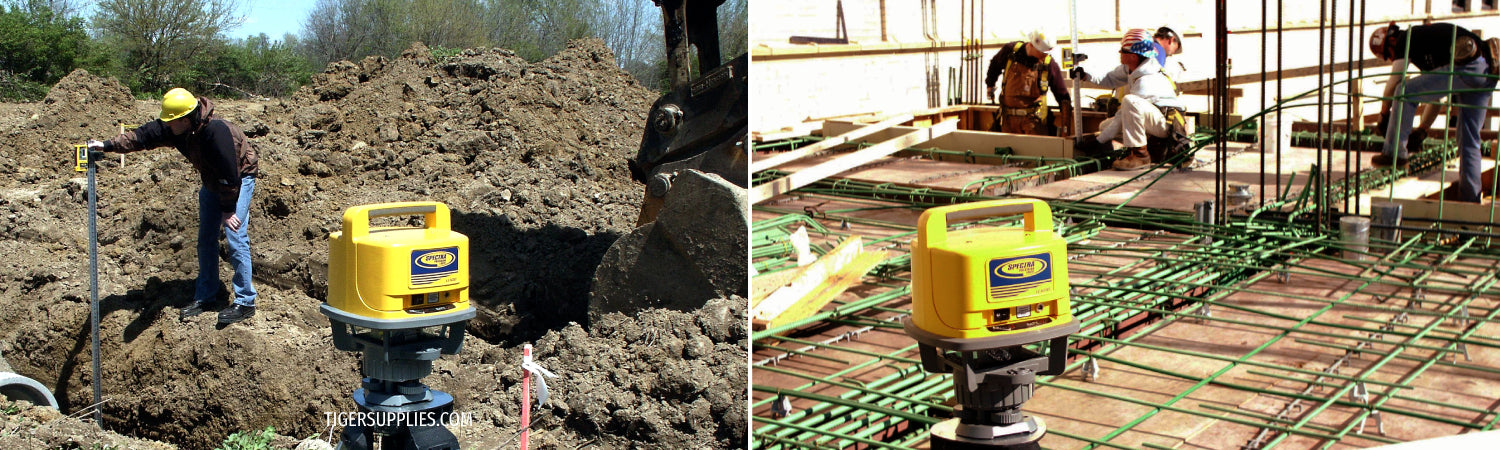

With an easy one-button operation, the Spectra LL500 self-leveling laser is ideal for digging septic tanks, checking foundations or elevations, taking grade shots, or setting forms. It also has an out-of-level alert that automatically shuts off the beam if it is bumped out of level.

The Spectra LL500 laser level features temperature compensation that enables the laser to adjust and work despite temperature changes. In addition, the housing is rugged enough for daily use on construction sites. The LL500 laser level works up to 100 hours using the rechargeable batteries and up to 175 hours with alkaline batteries.

Configuration Options

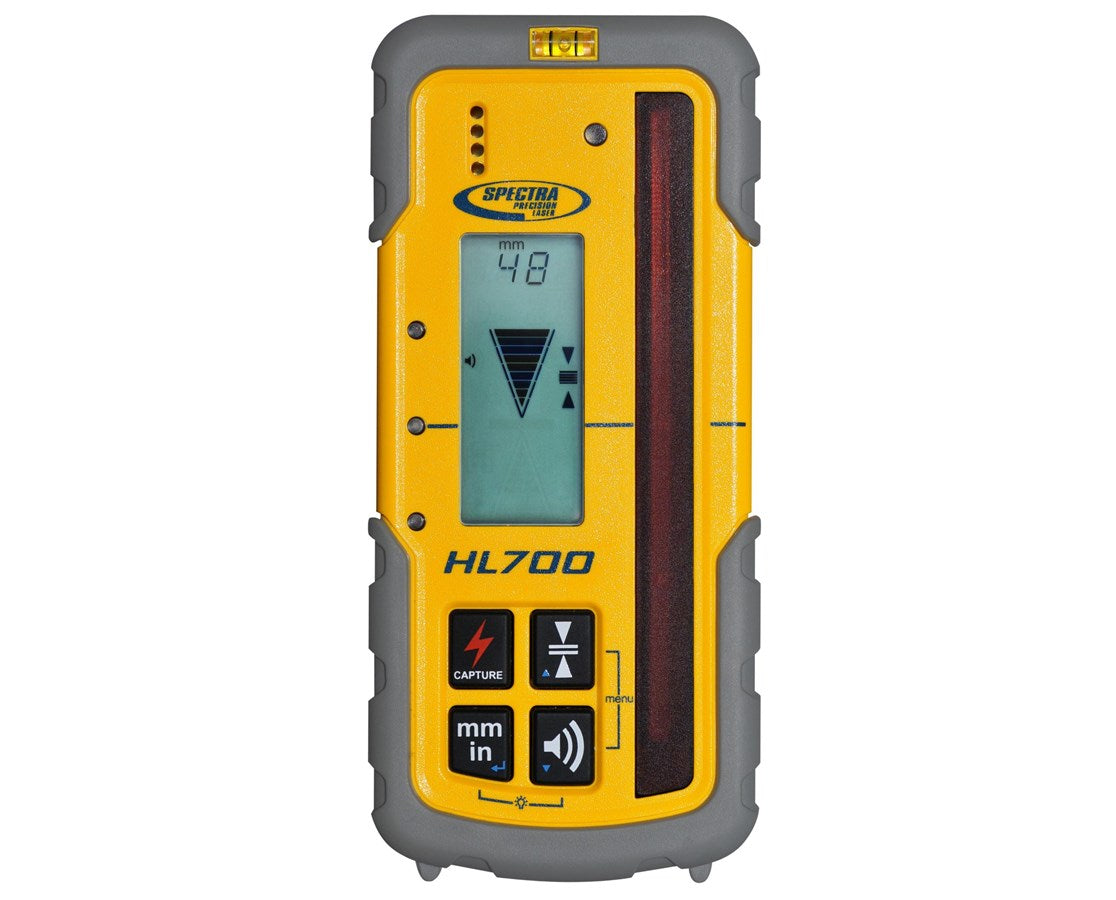

The Spectra LL500 comes with an optional HL700 receiver that locates the laser beam outdoors or in limited visibility. It features an anti-strobe sensor and a digital readout of elevation that is switchable in millimeters, centimeters, feet, inches, or fractional inch.

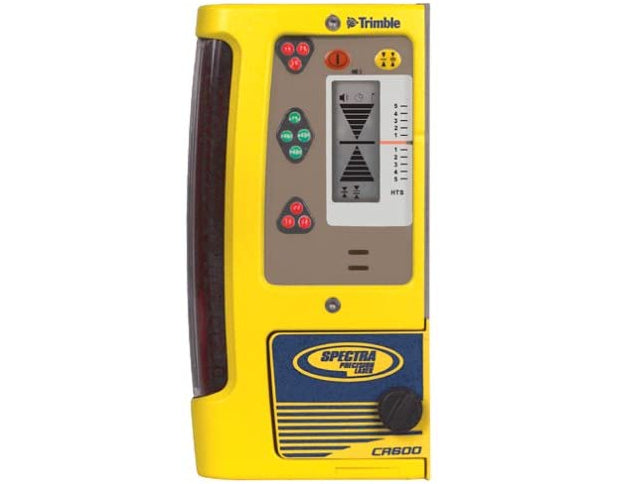

The optional Spectra CR600 laser detector can be machine mounted or rod mounted to allow more flexibility on the job site. It features wrap-around receiver cells with an operating range of 270 degrees which greatly reduces dead spots. Please select your preference from the menu above.

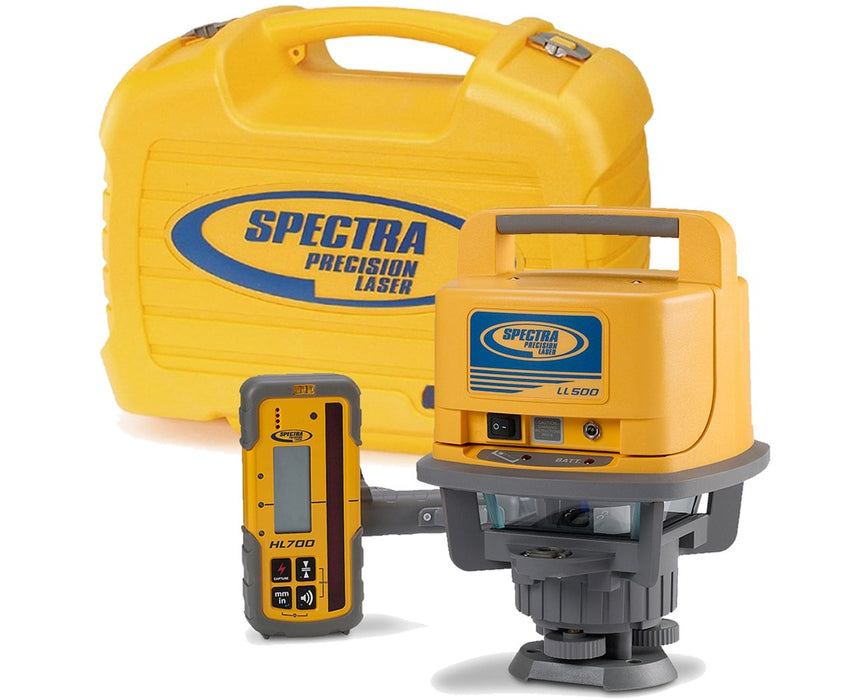

  • LL500: With HL700 Receiver & Alkaline Battery

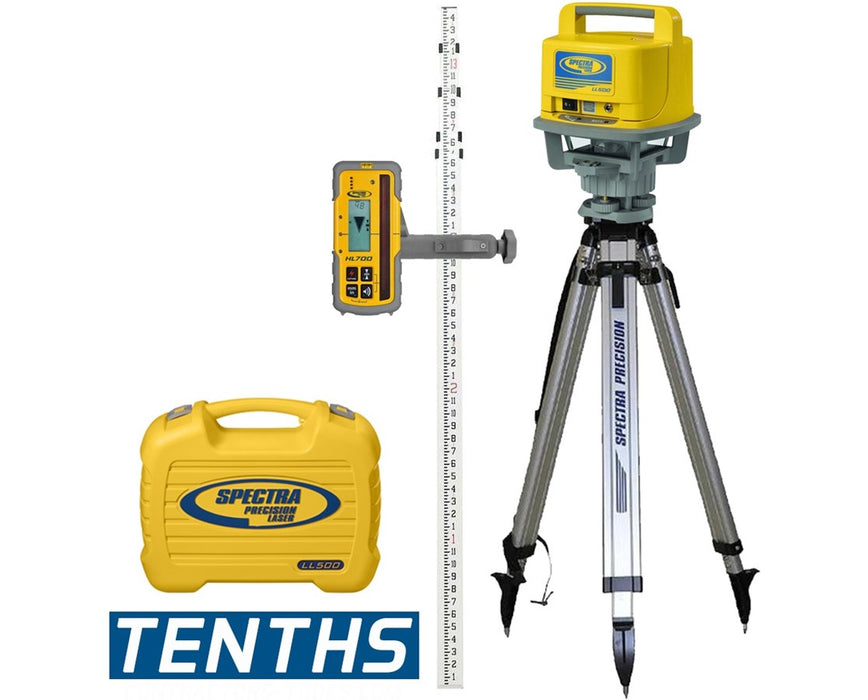

  • LL500-1: With HL700 Receiver, Alkaline Battery, Aluminum Tripod & GR151 15' Grade Rod (Feet/10ths)

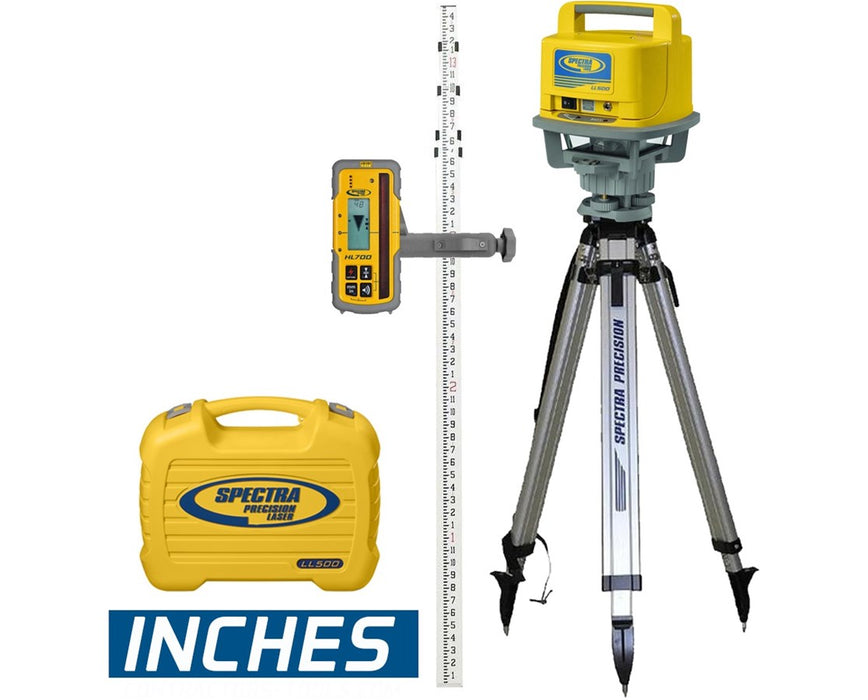

  • LL500-2: With HL700 Receiver, Alkaline Battery, Aluminum Tripod & GR152 15' Grade Rod (Feet/8ths)
  • LL500-3: With HL700 Receiver, Alkaline Battery, Aluminum Tripod & GR153 15' Grade Rod (Metric)

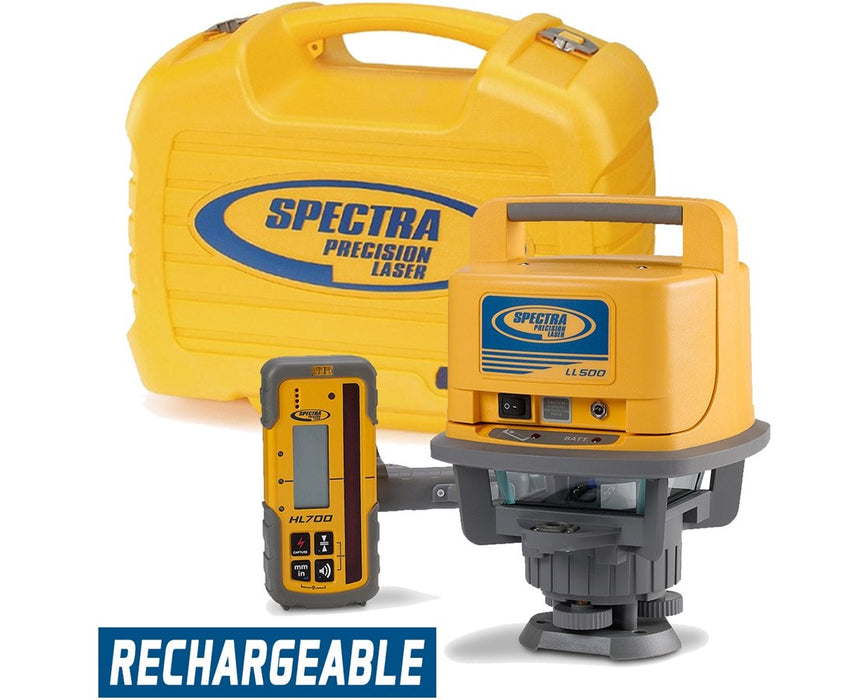

  • LL500-4: With HL700 Receiver & Rechargeable Battery
  • LL500-10: With CR600 Receiver & Alkaline Battery
  • LL500-14: With CR600 Receiver & Rechargeable Battery
No Cost 5-Year Warranty offers no repair charge for parts and labor of the laser.
A hard-shelled, portable System Case is available to house the laser, receiver, clamp, tripod, and grade rod.
Active Temperature Compensation gives accurate, stable results regardless of temperature changes.

Scroll back to Top

  • Choice of 7 packages
  • Up to 1,600-foot range with laser receiver
  • Self-leveling within ±11 arc minutes
  • ±1/16 inch accuracy at 100 feet
  • Out-of-level alert
  • 360-degrees reference
  • One rotation speed
  • Great for control, excavations, slopes on grade, leveling forms and footers, screeding, and more
  • Height of instrument alert, with automatic shut off and LED flash alert
  • Temperature compensation
  • Dustproof and water resistant to IP66
  • 5/8-11 tripod thread

What’s in the Box

  • Spectra LL500 360-Degree Self-Leveling Laser
  • Detector rod clamp
  • Hard carrying case
  • User manual
  • 5-year manufacturer’s warranty

Available Package Options

  • HL700 or CR600 Laser Receiver
  • Aluminum Tripod
  • GR151 15' (Feet/10ths), GR152 15' (Feet/8ths), or GR153 15' (Metric)
  • Alkaline or NiMH Rechargeable Battery

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±1/16 inch at 100 feet
Vertical
±1/16 inch at 100 feet
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Elevations of Sub-Base and Sub-Grade
Yes
Checking/Setting Elevations
Yes
Machine Control of Excavators, Graders, Dozers or Similar Equipment
Yes
Matching Existing Slope & Grade
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Battery/Power
Battery Life Alert
Yes
Battery Life with Alkaline Batteries
Up to 175 hours
Battery Life with Rechargeable Battery Pack
Up to 100 / 75 Ni-MH/Ni-CD not included
Power Source
4 x D-cell Alkaline, NiMH, NiCad
Charger
Charging Time
Up to 14 hours
Extra Technology
Detector/Receiver
HL700 / CR600
Remote Control
Optional RC601
Features
Adjustable Rotating Speed
600 RPM
Automatic Shut-Off
On detector
Built-in Bubble Vial
Yes
Bump Sensor (H.I./Out of Position Alert)
Yes
Display
LED
Drop Damage Protection
Yes
One-Touch Commands
Yes
Protection Class
IP66 dustproof and powerful water jet resistant
Removable Laser Cage (for exact beam spotting)
Yes
Tripod Adapter (Center Screw Thread)
5/8 x 11
Wall Mount Bracket
Yes (LL500-10 package)
Functions
Automatic Leveling
Yes
General
Maximum Power Output
<5 mW
Warranty
5-year
Weight
8 lbs (3.6 kg)
Laser
Classification
Class 2
Color
Red
Direction
Horizontal
Visibility
Highly Visible
Wavelength
670 nm
Range
Exterior
Up to 1,600 feet (500 m)
Self Leveling
±11 arc minutes
Temperature
Operating
-4 to 122 °F (20 to 50 °C)
Storage
-4 to 122 °F (20 to 50 °C)
