LL100N Self-Leveling Rotary Laser

TIGER#: TS12751
Original price List Price: $750.00
You Save: $150.00 -20%
Original price $750.00 - Original price $750.00
Original price List Price: $750.00
Current price $600.00
$607.51 - $607.51
Current price $600.00
LL100N Self-Leveling Rotary Laser
LL100N Self-Leveling Rotary Laser - $600.00
$600.00
*Must Purchase 1 for LL100N Self-Leveling Rotary Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 5/30/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$33.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$651.60
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Range up to 1,150 feet with laser receiver
  • Self-leveling within ±5 degrees
  • Accuracy ±1/8 inch at 100 feet
  • Rotation speed: 600 RPM
  • Single-axis manual slope
  • Height-of-instrument (H.I.) alert
  • IP54 dustproof and water resistant
  • Battery life up to 80 hours

The Spectra Precision LL100N Self-Leveling Laser is a fully automatic, self-leveling laser that can be used indoors or outdoors. With a range up to 1,150 feet with a laser receiver, this rotary laser allows the user to take accurate and self-leveled elevation measurements. The Spectra LL100N is self-leveling within ±5 degrees and has an accuracy of ±1/8 inches at 100 feet.

The Spectra LL100N construction laser features a simple one-button operation for a quick start-up. It also comes with 600 rotation speed per minute and a height-of-instrument alert to avoid erroneous readings. With the use of the optional Spectra RC601 remote control, this rotary laser can perform single-axis manual slope.

The included Spectra HR320 laser receiver features two on-grade sensitivities - fine and coarse. It is equipped with dual LCD displays and a 90-degree reception angle.

Having an IP54 rating, the LL100N is dustproof and water-resistant. Using two D-cell alkaline batteries, this construction laser can operate up to 80 hours. In addition, it comes with a 5/8-11 tripod thread for easy tripod attachment.

Configuration Options

The Spectra LL100N Self-Leveling Laser is available in various packages to suit your needs. Please select from the menu above.

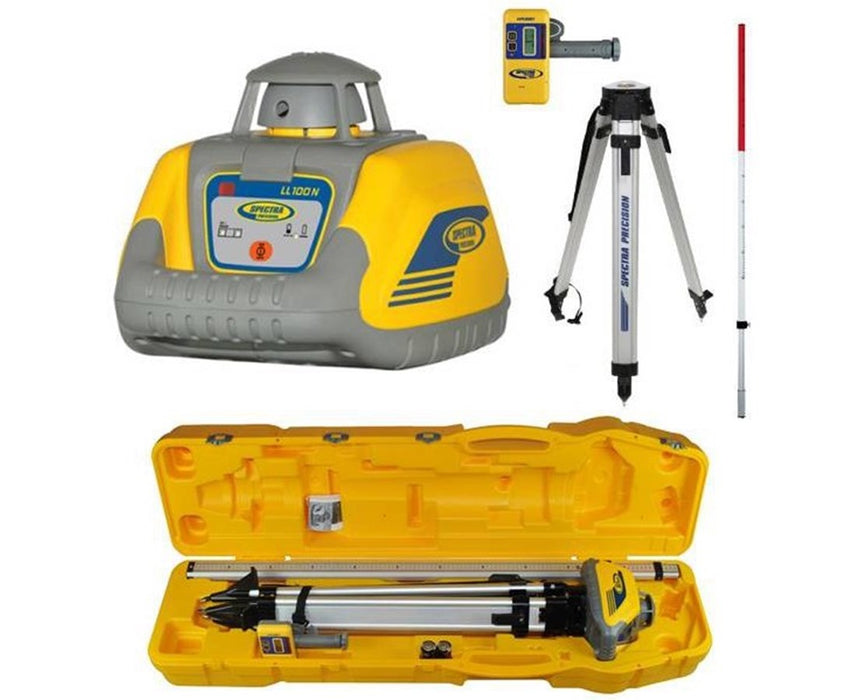

  • LL100N: With HR320 Receiver

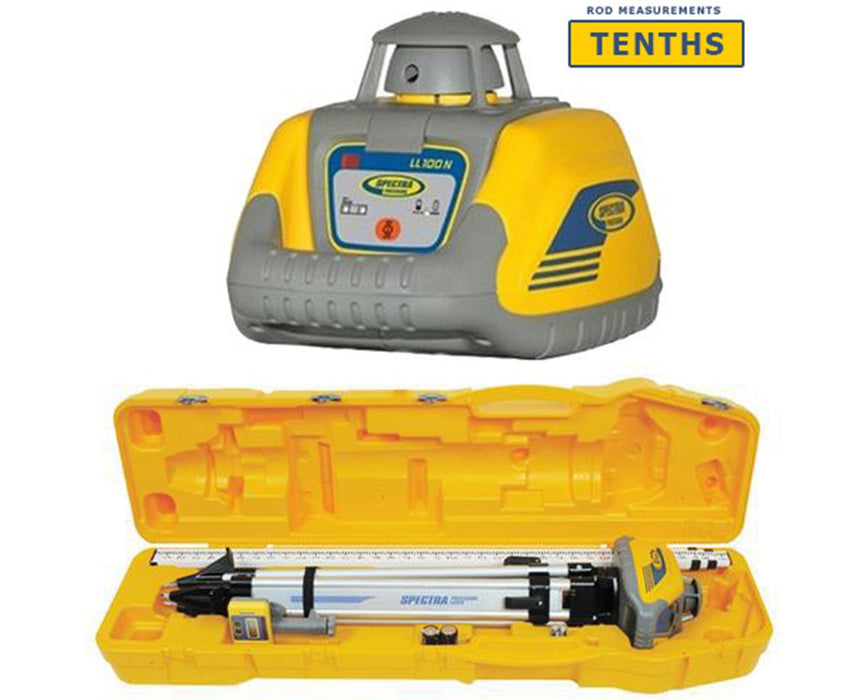

  • LL100N-1: With HR320 Receiver, Aluminum Tripod And GR151 15' Grade Rod (Feet/10ths)
  • LL100N-5: With HR320 Receiver, Aluminum Tripod And 15' Grade Rod (Cut-Fill Metric)

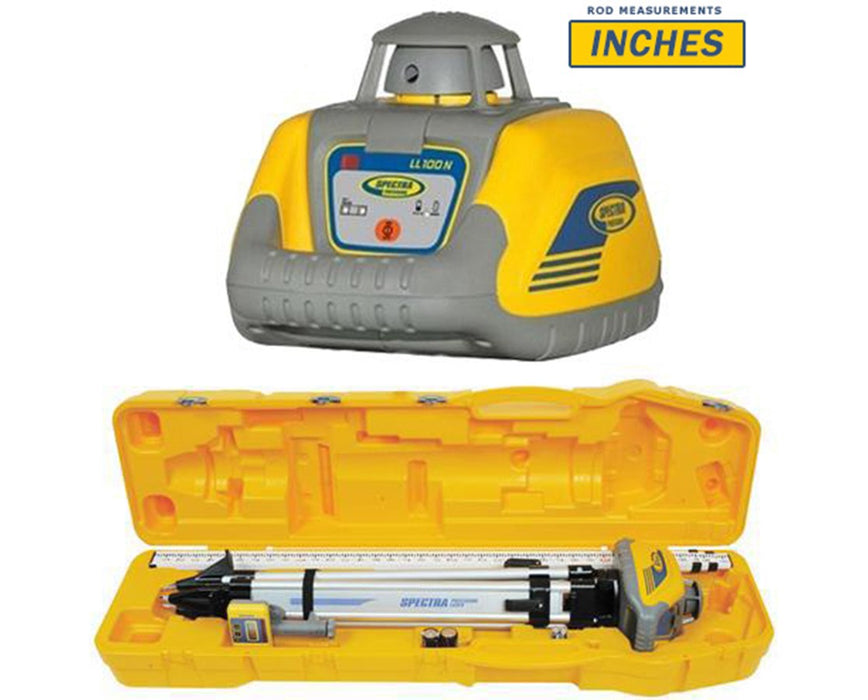

  • LL100N-2: With HR320 Receiver, Aluminum Tripod And GR152 15' Grade Rod (Feet/8ths)
  • LL100N-3: With HR320 Receiver, Aluminum Tripod And GR153 15' Grade Rod (Metric)
Shock Proof ensures this construction laser withstands a three feet drop onto concrete.
A hard-shelled, portable System Case is available to house the laser, receiver, clamp, tripod, and grade rod.
Optional Infrared Remote control allows the laser to be sloped whilst still remaining self-leveled in the cross axis. This is ideal for grade matching when working on driveways or patios.

Scroll back to Top

  • Choice of 5 packages
  • Up to 1,150 feet range with a laser receiver
  • Self-leveling within ±5 degrees
  • ±1/8-inch accuracy at 100 feet
  • Simple one-button operation
  • Single-axis manual slope
  • Rotation speed: 600 RPM
  • Height-of-instrument (H.I.) alert
  • IP54 dustproof and water resistant
  • D-cell alkaline battery
  • Up to 80 hours of battery life
  • 5/8-11 tripod thread

What’s in the Box

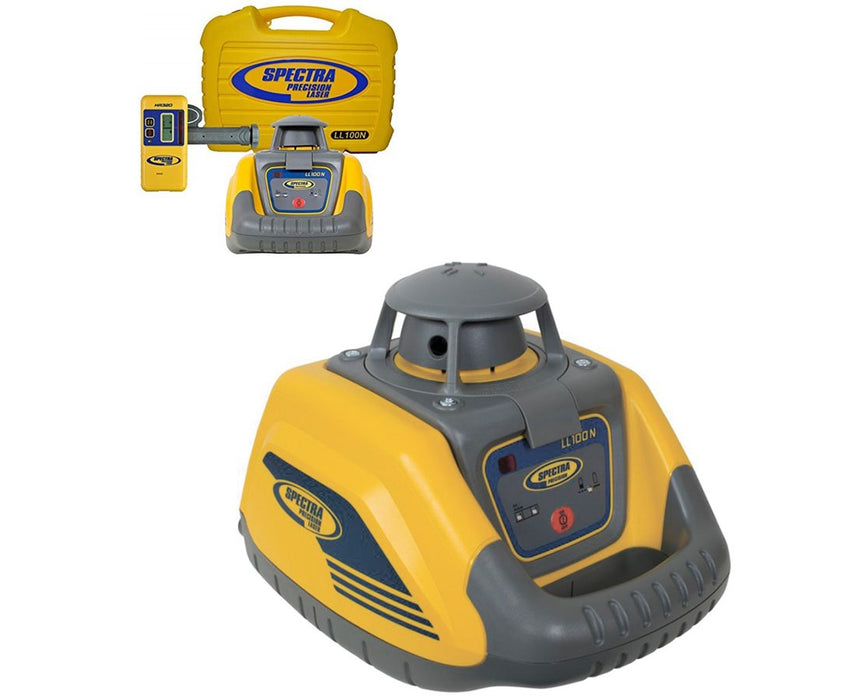

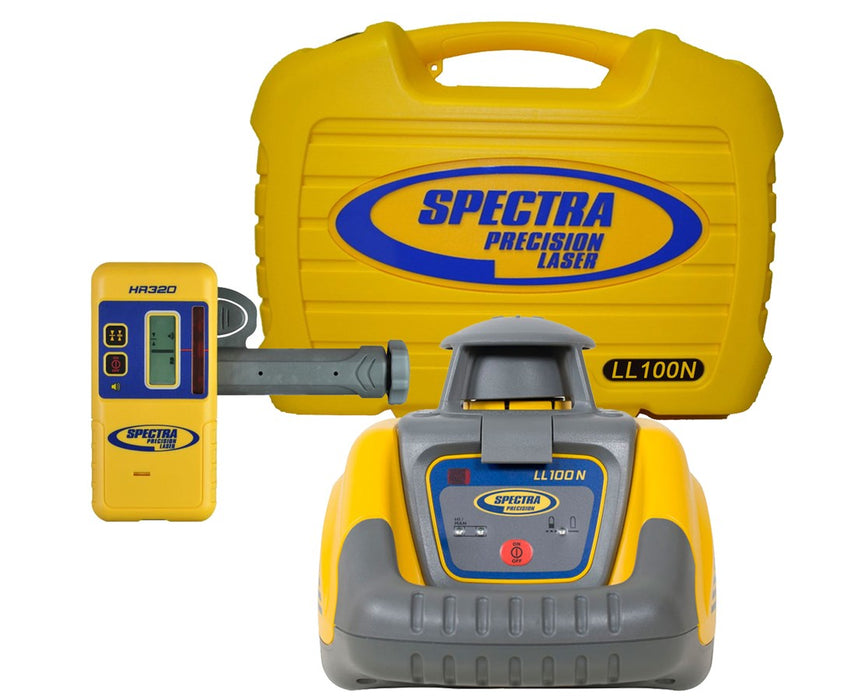

  • Spectra LL100N Self-Leveling Laser
  • HR320 Laser Receiver
  • C59 Detector Rod Clamp
  • Alkaline Batteries
  • Hard Carrying Case
  • User Manual
  • 3-Year Manufacturer's Warranty

Available Package Options

  • Grade Rod: GR151 15' (Feet/10ths), GR152 15' (Feet/8ths), GR153 15' (Metric), or 15' (Cut-Fill Metric)
  • Aluminum Tripod

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±1/8 inch at 100 feet
Vertical
±1/8 inch at 100 feet
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Elevations of Sub-Base and Sub-Grade
Yes
Checking/Setting Elevations
Yes
Estimating Cut & Fill
Yes
Matching Existing Slope & Grade
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Battery/Power
Battery Life with Alkaline Batteries
Up to 80 hours
Power Source
2 x D-cell Alkaline batteries
Extra Technology
Detector/Receiver
HR320 Receiver
Remote Control
RC601 Optional
Features
Adjustable Rotating Speed
600 RPM
Automatic Shut-Off
On Receiver after 30 minutes
Bump Sensor (H.I./Out of Position Alert)
Yes
Display
On Receiver
Drop Damage Protection
Yes
One-Touch Commands
Yes
Protection Class
IP54 dustproof and water splash resistant
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
Slope Match
Yes
General
Dimensions
8.5" L x 6.7" W x 6.0" H
Maximum Power Output
<5 mW
Remote Control Operating Distance
Up to 160 feet (50 m)
Warranty
2-year
Weight
3.3 lbs (1.5 kg)
Laser
Classification
Class 2
Color
Red
Direction
Horizontal and vertical
Visibility
Highly Visible
Wavelength
650 nm
Range
Exterior
up to 1,000 feet (300 m) with HR320 receiver
Remote
Up to 100 feet (30 m)
Self Leveling
±5 degrees
Temperature
Operating
23 to 113 °F (-5 to 45 °C)
Storage
-4 to 158 °F (-20 to 70 °C)
