Lino L4P1 Multiline Laser Level

by Leica
MFR#: 834838
TIGER#: TS31065
Original price $650.00 - Original price $650.00
Original price List Price: $650.00
$650.00 - $650.00
Current price $650.00
Lino L4P1 Multiline Laser Level
Lino L4P1 Multiline Laser Level - $650.00
*Must Purchase 1 for Lino L4P1 Multiline Laser Level

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 6/2/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
5/8" Tripod Adapter for Lino L4P1 Laser Level

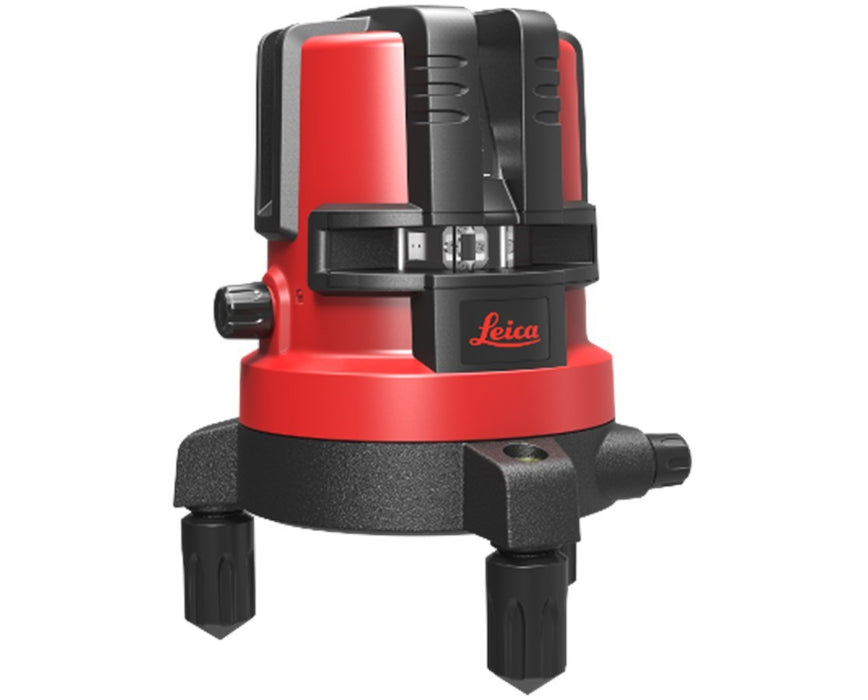

The Leica Lino L4P1 Multiline Laser Level is a point and cross-line laser that works as the ultimate 90 degrees layout laser level. It projects one horizontal and 3 vertical lines that are at 90 degrees from each other with 180 degrees coverage. This makes aligning and transferring points easier and with the laser plumb point, leveling precision is increased at ±1/16 inches at 30 feet. It automatically compensates for any misalignments within ±3 degrees. This laser level has a working range of up to 50 feet and can reach up to 164 feet with a laser receiver.

The L4P1 Lino laser has a base with full 360 degrees mobility that allows it allows it to be positioned over a specific point and not have to move it regardless of the direction where the beams need to be projected. Its ¼-inch x 20 and a 5/8-inch x 11 tripod thread allows it to be mounted on most tripods and adapters. An easy-to-use fine adjustment knob allows the vertical lines to be moved in super small increments and provide higher accuracy.

This Lino point and cross-line laser level has durable construction and is dust and water resistant. It is powered by a Li-Ion battery pack that can be interchanged with four AA batteries. From a single charge, the unit can be used for up to 24 continuous hours. This unit also comes with a Li-Ion battery, alkaline battery tray, charger, target plate, and a hard case.

Configuration Options

The Leica Lino L4P1 Multiline Laser Level comes in two package options. Please choose your preference from the menu above before adding to your cart.

  • L4P1 Laser Level
  • L4P1 Laser Level with Extra Li-Ion Battery Pack
  • Ultimate 90° layout laser level
  • 1 horizontal and 3 vertical lines
  • Lines projected 90° from each other with 180° coverage
  • Laser plumb point
  • Accuracy: ±1/16"
  • Automatic alignment adjustments
  • Working range: 50ft
  • Working range with a receiver: 164ft
  • Base with full 360° mobility
  • Easy-to-use fine adjustment knob
  • ¼" x 20 and a 5/8" x 11 tripod thread
  • 24hrs continuous use in one full charging

Leica Geosystems products are special order only.

We do not accept returns or cancellations for special ordered items.

Ceiling Joist and Rafter Alignment
Diagonals and Footings for Patios
Flooring and Tile Layout
Installing Drop Ceilings and Lights
Installing Windows and Partition Walls
Stud Plumbing and Alignment
Transferring Points from Floor to Ceiling
Transferring Points from Wall to Wall
Operating Temperature
50 to 122 °F (10 to 50 °C)
Operating Time
Up to 24 hours
Power Source
4 x AA Batteries or Li-ion Battery
Storage Temperature
-13 to 158 °F (-25 to 70 °C)
Environmental Class
IP54 dustproof and water spray resistant
Tripod Thread
5/8 x 11 or 1/4 x 20
Horizontal Leveling
Plumbing Up and Down
Setting out Right Angles
Vertical Aligning
Vertical and Horizontal Aligning
5" L x 5" W x 6.25" H
Laser Class
Class 2
Laser Type
620-690 nm
2-year limited
2.6 lbs (1.18 kg)
Measuring Capabilities
Beam Direction
Horizontal & Vertical
Leveling Accuracy
±1/16 inch at 30 feet (2mm @ 10m)
Number of Lines (Planes)
Number of Points
Range with Receiver
Up to 164 feet (50m)
Self-Leveling Range
±3 degrees
Working Range
Up to 50 feet (15m)
