Lino L4P1 Multiline Laser Level

by Leica
MFR#: 834838
Original price USD $650.00 - Original price USD $650.00
Original price List Price: USD
USD $650.00
USD $650.00 - USD $650.00
Current price USD $650.00
Lino L4P1 Multiline Laser Level
Lino L4P1 Multiline Laser Level - USD $650.00
USD $650.00
*Must Purchase 1 for Lino L4P1 Multiline Laser Level

The cart will thereforce automatically set Qty to 1 when you order this product

One of our Sales Experts will be in touch!

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 10/24/2024
  • Leveling Accuracy: ± 0.2 mm/m / ± 0.0079 in @ 33 ft
  • Self-Leveling Range: ± 3°
  • Number of Laser Dots: 1
  • Number of Laser Lines: 4
  • Laser Type: 635nm / Class 2
  • Protection Class: IP54

The Leica Lino L4P1 Multiline Laser Level is a point and cross-line laser that works as the ultimate 90 degrees layout laser level. It projects one horizontal and 3 vertical lines that are at 90 degrees from each other with 180 degrees coverage. This makes aligning and transferring points easier and with the laser plumb point, leveling precision is increased at ±1/16 inches at 30 feet. It automatically compensates for any misalignments within ±3 degrees. This laser level has a working range of up to 50 feet and can reach up to 164 feet with a laser receiver.

The L4P1 Lino laser has a base with full 360 degrees mobility that allows it allows it to be positioned over a specific point and not have to move it regardless of the direction where the beams need to be projected. Its ¼-inch x 20 and a 5/8-inch x 11 tripod thread allows it to be mounted on most tripods and adapters. An easy-to-use fine adjustment knob allows the vertical lines to be moved in super small increments and provide higher accuracy.

This Lino point and cross-line laser level has durable construction and is dust and water resistant. It is powered by a Li-Ion battery pack that can be interchanged with four AA batteries. From a single charge, the unit can be used for up to 24 continuous hours. This unit also comes with a Li-Ion battery, alkaline battery tray, charger, target plate, and a hard case.

Configuration Options

The Leica Lino L4P1 Multiline Laser Level comes in two package options. Please choose your preference from the menu above before adding to your cart.

  • L4P1 Laser Level
  • L4P1 Laser Level with Extra Li-Ion Battery Pack
  • Ultimate 90° layout laser level
  • 1 horizontal and 3 vertical lines
  • Lines projected 90° from each other with 180° coverage
  • Laser plumb point
  • Accuracy: ±1/16"
  • Automatic alignment adjustments
  • Working range: 50ft
  • Working range with a receiver: 164ft
  • Base with full 360° mobility
  • Easy-to-use fine adjustment knob
  • ¼" x 20 and a 5/8" x 11 tripod thread
  • 24hrs continuous use in one full charging

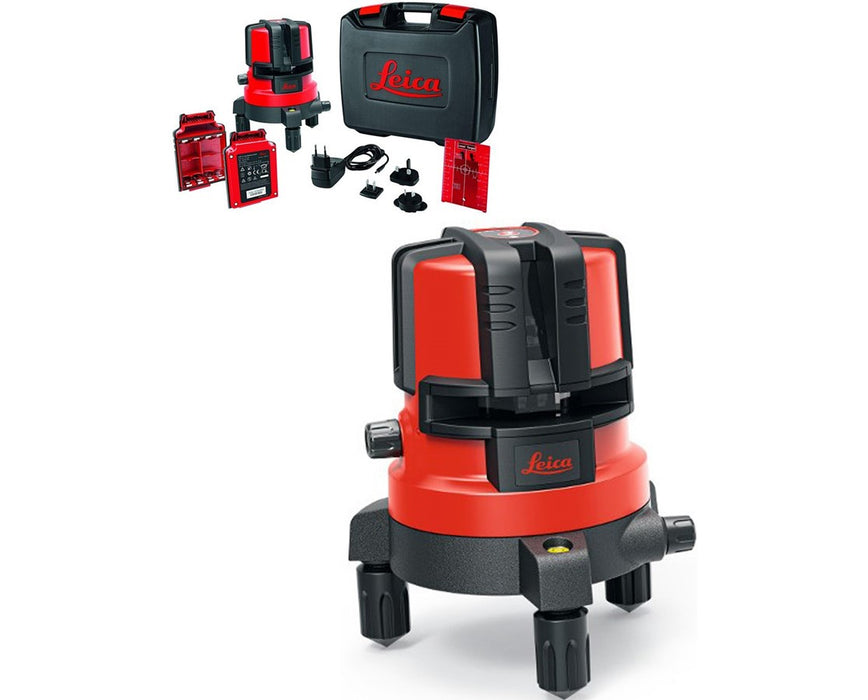

What’s in the Box

  • Lino L4P1 Multi-Line Laser
  • Rugged Case
  • Li-Ion Battery Pack, Charger and Plugs
  • Alkaline Battery Tray
  • Laser Target
  • Quickstart Guide
  • Safety Instructions
  • Calibration Certificate
  • Warranty Card

3-year manufacturer’s warranty.

Leica Geosystems products are special order only.

We do not accept returns or cancellations for special ordered items.
