Lino L2 Cross-Line Laser Level

by Leica
MFR#: 848435
TIGER#: TS52822
Original price $215.00 - Original price $215.00
Original price List Price: $215.00
$215.00
$215.00 - $215.00
Current price $215.00
Lino L2 Cross-Line Laser Level
Lino L2 Cross-Line Laser Level - $215.00
$215.00
*Must Purchase 1 for Lino L2 Cross-Line Laser Level

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 5/1/2024

One of our Sales Experts will be in touch!

Documents
  • High-precision optics
  • Up to 25m laser visibility
  • 180° laser projection angle
  • Self-leveling range of ± 4 °
  • Leveling accuracy of ± 0.2 mm
  • Vertical and horizontal beam direction
  • IP54 dustproof and water splash resistant
  • Visual alert for level errors

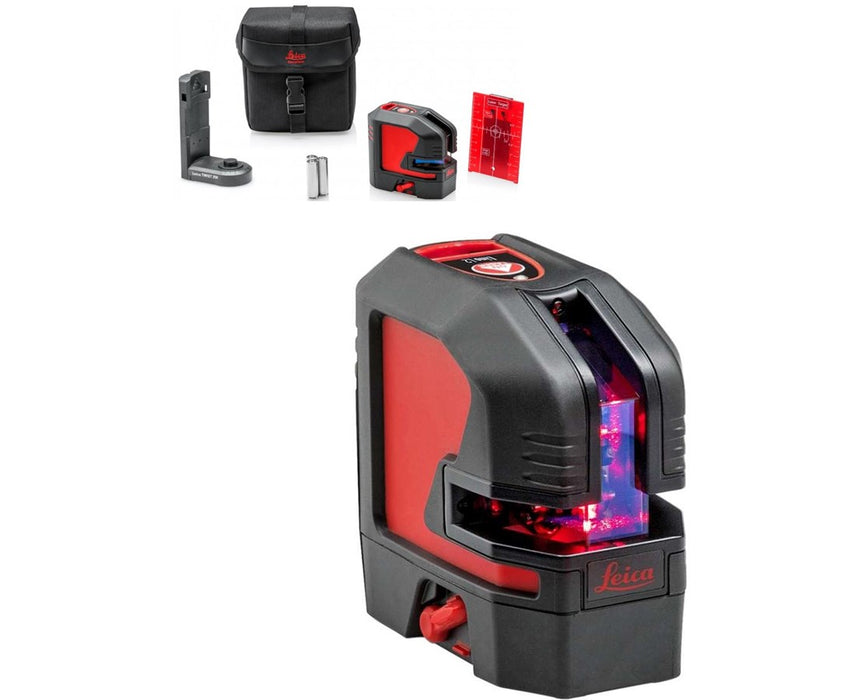

The Leica Lino Cross-Line Laser is a robust self-leveling laser with a red laser line that has outstanding visibility and high accuracy. It features high-precision optics that ensure laser visibility up to 25 meters and laser lines are projected to floors, walls, and ceilings at more than 180 degrees. This device automatically adjusts its positioning if it is slightly out of level up to ± 4 degrees and a visual alert is activated when the level exceeded the limit.

With a receiver, the Lino line laser can measure up to 80 meters. Its leveling accuracy is ± 0.2 millimeters with a self-leveling time of less than three seconds. It has two laser lines that beam in vertical and horizontal directions.

The Leica Lino cross-line laser is made of high-grade fiberglass-reinforced materials and has a protection class of IP 54. Its optics are protected by a high-grade aluminum frame and impact-absorbing rubber components. This device can be operated with rechargeable Li-Ion or alkaline batteries or connected to the power supply.

Configuration Options

The Leica Lino L2 Cross-Line Laser is available in two package options. Please select your preference from the drop-down menu above.

  • 848435: Leica Lino L2s Cross-Line Laser w/ Alkaline Batteries & Pouch
  • 864413: Leica Lino L2 Cross-Line Laser w/ Rechargeable Li-Ion Battery & Hard Case
  • Choice of 2 packages
  • High-precision optics
  • Up to 25m laser visibility
  • 180° laser projection angle
  • Self-leveling range of ± 4 °
  • Leveling accuracy of ± 0.2 mm
  • Visual alert for level errors
  • Vertical and horizontal beam direction
  • IP 54 Protection class
  • Runs on battery or connected via cable

What’s in the Box

  • Leica Lino L2 Cross-Line Laser
  • Quickstart Guide
  • 3-Year Manufacturer's Warranty

Available Product Options

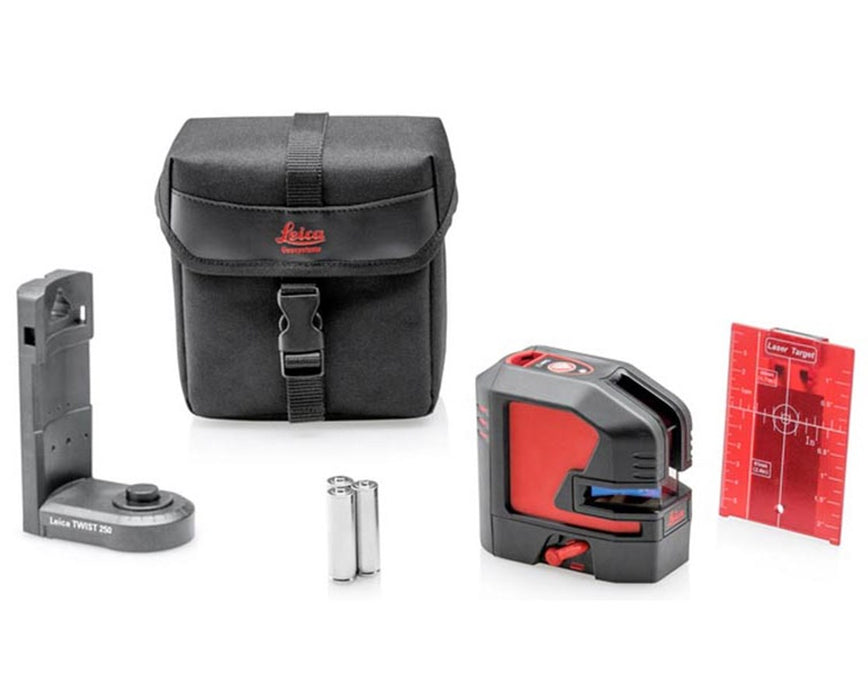

Leica Lino L2s Cross-Line Laser 848435

  • Twist 250 Adapter
  • Red Target Plate
  • 3 AA Batteries
  • Pouch
  • Calibration Certificate Blue

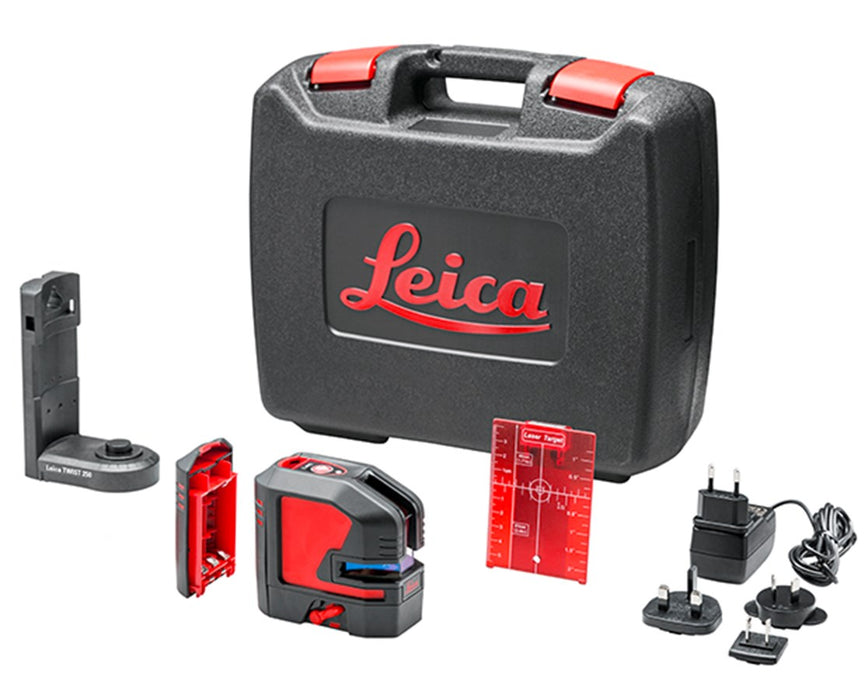

Leica Lino L2 Cross-Line Laser 864413

  • Twist 250 Adapter
  • Red Target Plate
  • Li-Ion Battery
  • Alkaline Battery Tray
  • Charger
  • Hard Case
  • Calibration Certificate Blue

Leica Geosystems products are special order only.

We do not accept returns or cancellations for special ordered items.

Applications
High Rise Jobsites
Yes
Installing Windows and Partition Walls
Yes
Leveling and Excavation
Yes
Transferring Points from Floor to Ceiling
Yes
Battery/Power
Operating Temperature
14 to 122 °F (-10 to 50 °C)
Operating Time
Up to 44 hours
Power Source
Li-Ion rechargeable (or AA 3 x 1.5 V)
Storage Temperature
-13 to 158 °F (-25 to 70 °C)
Features
Environmental Class
IP54 dustproof and water spray resistant
Self-Leveling
Yes
Tripod Thread
5/8 x 11 or 1/4 x 20
Functions
Horizontal Leveling
Yes
Setting out Right Angles
Yes
Vertical Aligning
Yes
Vertical and Horizontal Aligning
Yes
General
Dimensions
4.4" L x 2.4" W x 4" H
Laser Class
2
Laser Type
635 nm
Warranty
3 years
Weight
1.17 lbs (0.5 kg)
Measuring Capabilities
Beam Direction
Vertical and horizontal
Horizontal Accuracy
±0.2 mm
Leveling Accuracy
±0.2 mm
Number of Lines (Planes)
2
Range with Receiver
Up to 260 feet
Self-Leveling Range
±4 degrees
Vertical Accuracy
±0.2 mm
Working Range
Up to 115 feet
