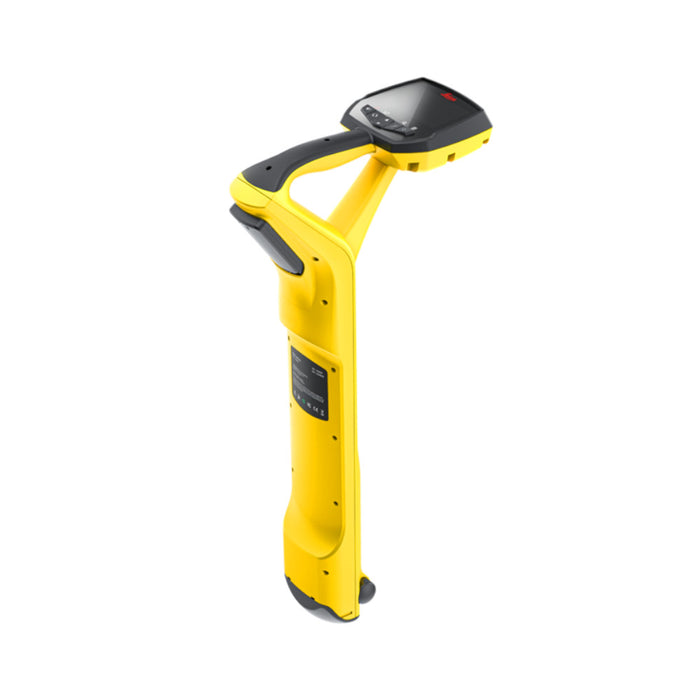

Leica DT100 Precision Locator Package

by Leica

SKU 6019362

List Price: USD $4,810^.00

You Save: USD $200^.42

USD $4,810^.00 - USD $15,125^.00

List Price: USD $4,810^.00

USD $4,609^.58

USD $4,609^.58 - USD $14,353^.19

USD $4,609^.58

Store Pickup: List of available stores available on the Checkout page.

Model No.: 6019362

Leica DT100 Precision Locator Package - USD $4,609^.58

USD $4,609^.58

*Must Purchase 1 for Leica DT100 Precision Locator Package

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 7 - 10 Business Days Shipping Date By: 7/22/2025

Documents

Product Manual Item Brochure

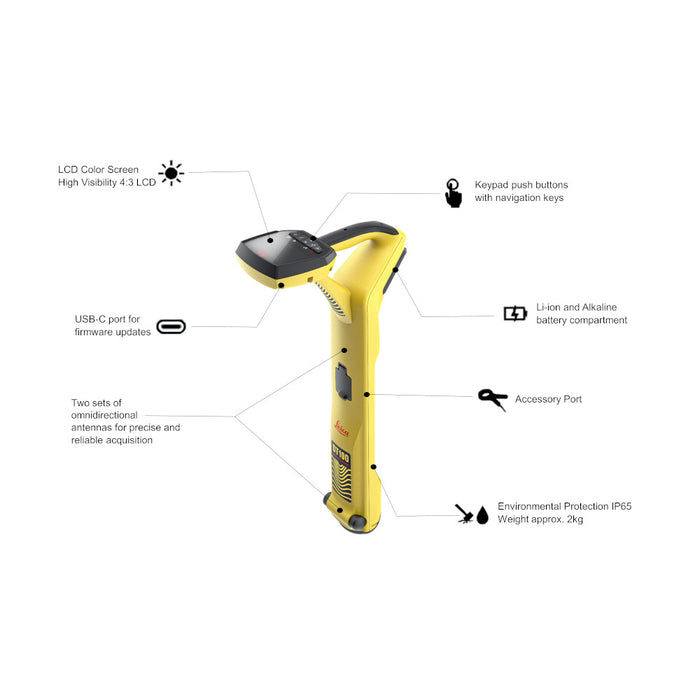

High Accuracy Utility Location: Detects power, radio, sonde, and active signals with ±5% depth accuracy.
User-Friendly Operation: Simple peak/null signal display and multi-language menu reduce training time.
Flexible Frequency Analysis: Choose optimal frequencies based on real-time environmental conditions.
DE100 Signal Transmitter: Dual output ports, 1A current output, and safety alerts for high-voltage detection.
Battery Life: Up to 15 hours (receiver) and 17 hours (transmitter) of continuous operation.
Multiple Packages: Choose from Standard (locator only), Lite, or Surveyor kits based on project needs.

The Leica DT100 is a next-generation utility locator built for professionals who demand precision, safety, and ease of use. Engineered to meet the needs of the construction, utility, and surveying industries, this high-performance system combines intelligent signal processing with a flexible user interface. When paired with the Leica DE100 10-watt transmitter, the DT100 delivers accurate, real-time detection of underground utilities—even in challenging environments. Its ergonomic build, extended battery life, and multilingual interface make it ideal for long field days and diverse job sites.

Available in four configurations—Standard, Lite, Surveyor and Utility mapping Packages—the DT100 adapts to a wide range of user needs. The Standard Package does not include a transmitter; the DE100 must be purchased separately.

Frequency Range: 50Hz – 200kHz
Sensitivity: 1μA @ 1m (33kHz)
Max Depth Range: Pushbutton depth up to 11m (36ft)
Accuracy: ±5% for in-line, sonde, and passive modes
Advanced Modes: Peak, Null, Twin Peak, and Omnidirectional Sweep
Signal Analyzer: Recommends the best frequency for each job site
Safety Alerts: Includes strike alert, swing warning, over-read cable warning
DE100 Capabilities: Shows real-time current, voltage, impedance, and hazardous voltage warnings
Environmental Protection: IP65 rated
Multilingual Support: Interface available in 22 languages
Battery Options: Rechargeable Li-ion or alkaline with adapter included
