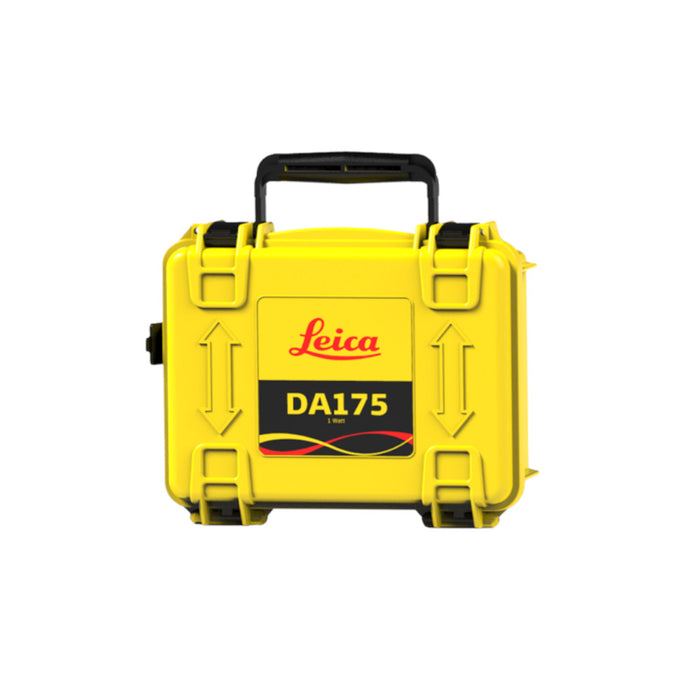

Leica DA175 1 Watt Signal Transmitter | 949370

by Leica

SKU 949370

List Price: USD $1,290^.00

You Save: USD $54^.00

USD $1,290^.00 - USD $1,290^.00

List Price: USD $1,290^.00

USD $1,236^.00

USD $1,236^.00 - USD $1,236^.00

USD $1,236^.00

Store Pickup: List of available stores available on the Checkout page.

Model No.: 949370

Leica DA175 1 Watt Signal Transmitter | 949370 - USD $1,236^.00

USD $1,236^.00

*Must Purchase 1 for Leica DA175 1 Watt Signal Transmitter | 949370

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 7 - 10 Business Days Shipping Date By: 6/18/2026

Output Power: 1 watt
Trace Frequencies: 512Hz, 640Hz, 8kHz, 33kHz, 8+33kHz combined
Modes: Induction mode (pulsed output); Connection mode (constant tone, pitch based on output level)
LED Display Panel: Power output indicator, Frequency indicator, Connection mode indicator, Battery status
Audio Output: 85 dBA at 30 cm
Battery Type: 4 x LR20 alkaline (included); Optional 7.4V Li-Ion pack
Battery Life: 15 hours
Operating Temperature: -4°F to +122°F
Humidity Resistance: 95% RH non-condensing
Protection Class: IP67 (lid open or closed)
Compliance: CE and FCC certified

The Leica DA175 is a compact, durable 1-watt signal transmitter designed to enhance the performance of Leica DD series utility locators. Built to trace underground cables and pipes that lack a naturally detectable signal, the DA175 applies a consistent, traceable signal across a wide range of frequencies, including 512Hz, 640Hz, 8kHz, 33kHz, and a combined 8+33kHz mode.

It is designed for reliability in demanding jobsite conditions, conforming to IP67 standards for dust and water resistance—even with the lid open. Simple to use and highly effective, the DA175 helps improve detection success, utility tracing, and depth or current measurements when paired with compatible Leica DD locators (DD120, DD130, and DD175).

Signal Transmission: Supports five key frequencies, including 512Hz and 33kHz
Compatible with DD Series Locators: Works seamlessly with Leica DD120, DD130, and DD175
Improves Utility Detection: Ideal for tracing utilities and performing depth or current measurements
Rugged Build: IP67-rated housing for all-weather operation
Dual Output Modes: Includes both induction and direct connection options
Audio and LED Feedback: Visual and audible alerts confirm output, connection quality, and battery status
