Stabila LA-5P 5-Point Green Beam Plumb Laser

MFR#: 03165
TIGER#: TS67221
Original price List Price: $385.00
You Save: $15.10 -4%
Original price $385.00 - Original price $385.00
Original price List Price: $385.00
Current price $369.90
$369.90 - $369.90
Current price $369.90
Stabila LA-5P 5-Point Green Beam Plumb Laser
Stabila LA-5P 5-Point Green Beam Plumb Laser - $369.90
$369.90
*Must Purchase 1 for Stabila LA-5P 5-Point Green Beam Plumb Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 7/3/2024

One of our Sales Experts will be in touch!

Documents
Essential Add-Ons:
BST-S Fixed Head Aluminum Survey Tripod
BST-S Fixed Head Aluminum Survey Tripod
Details
$141.62
$140.44
Stabila Laser Mounting Bracket For Batter Boards & Forms
Stabila Laser Mounting Bracket For Batter Boards & Forms
Details
$175.10
$171.90
Stabila Laser Wall Mount Bracket
Stabila Laser Wall Mount Bracket
Details
$171.90
  • Measuring range of up to 60 feet
  • Accuracy: ±3/32”, ±1/8”, ±1/16” at 30 feet
  • Self-leveling range of ±4.5 degrees
  • Highly visible 635nm green laser beams
  • Up and down plumb points for transferring measurements
  • Three horizontal laser points for 90° angle
  • Automatic pendulum lock on/off switch
  • V-groove magnetic mount for flexibility

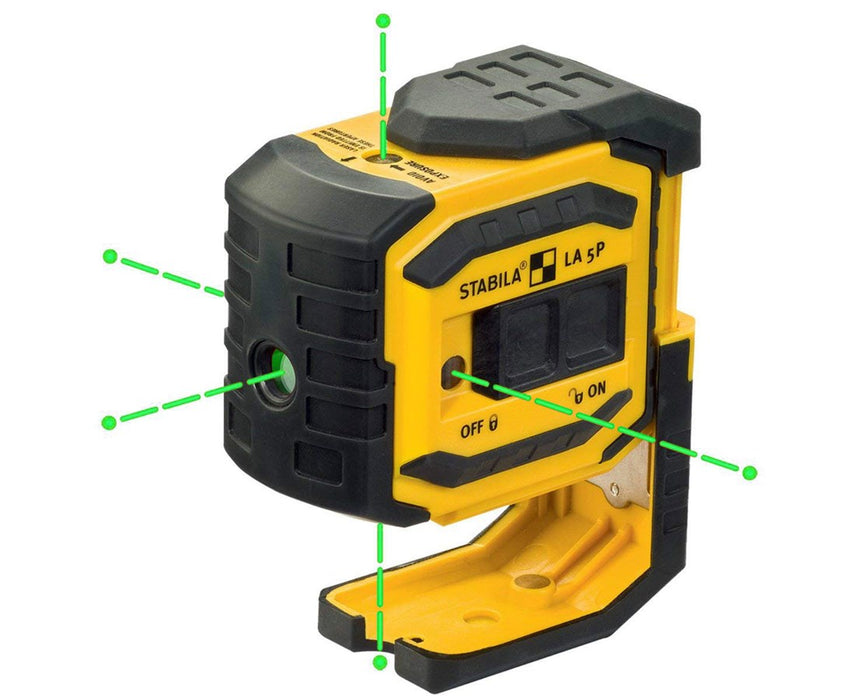

The Stabila LA-5P 5-Point Green Beam Plumb Laser is a functional and versatile laser designed for a wide variety of construction applications. It features five 635-nanometer green laser beams that are four times more visible than standard laser beams. The up and down plumb points allow transferring of measurements from floor to ceiling with accuracy of ±3/32-inch and ±1/8-inch at 30 feet. For easy layout and precise alignment of right angles and squares, its three horizontal laser points create 90-degree angles and offer an accuracy of ±1/16-inch at 30 feet.

Prefect for indoor use, this plumb laser by Stabila has a measuring range of up to 60 feet. It is self-leveling within ±4.5 degrees and maintains an accuracy of ±3/32-inch at 30 feet. To provide built-in protection and ensure accurate layout points, it permits 360-degree rotation inside its housing. It comes with a mechanical on/off switch with automatic pendulum lock for additional reliability. Its shock-absorbing, soft-grip rubber casing is rated IP54 to withstand dust, rain, and water spray.

The Stabila LA-5P 5-Point Green Beam Plumb Laser is flexible and easily mountable. It is equipped with a V-groove magnetic mount for quick attachment to metal surfaces and comes with standard 1/4-20 threading for tripod connection. It can be fastened to walls with the included wall bracket. It is supplied with three AA batteries and can operate for up to 20 hours. It also includes a target plate, a belt pouch, and a framing base.

  • Highly visible 635nm green laser beams (<1 mW output)
  • Measuring range of 60’ (with visible points)
  • Up and down plumb points for transferring measurements
  • Three horizontal laser points create 90° angles
  • Accuracy: ±3/32”, ±1/8”, ±1/16” at 30 feet
  • Self-leveling range of ±4.5 degrees
  • Allows 360° rotation inside the housing
  • Automatic pendulum lock on/off switch
  • Shock-absorbing soft-grip rubber casing
  • V-groove magnetic mount for flexibility
  • Standard 1/4-20 threading for tripod connection
  • Three AA batteries for up to 20-hour operation
  • Class 2 laser beams
  • Protection Class IP54 to resist dust, rain, and water spray
  • Includes target plate, wall bracket, framing base, and belt pouch
  • 2-year manufacturer’s warranty

What’s in the Box

  • Stabila LA-5P 5-Point Green Beam Plumb Laser
  • 3x AA Batteries
  • Target Plate
  • Wall Bracket
  • Framing Base
  • Belt Pouch
  • 2-Year Manufacturer's Warranty

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 15% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

Order Cancellations will incur a 15% fee.

For complete details of our return policy and process, please refer to our general return policy page.

Applications
Ceiling Joist and Rafter Alignment
Yes
Diagonals and Footings for Patios
Yes
Flooring and Tile Layout
Yes
Installing Drop Ceilings and Lights
Yes
Installing Windows and Partition Walls
Yes
Stud Plumbing and Alignment
Yes
Transferring Points from Floor to Ceiling
Yes
Transferring Points from Wall to Wall
Yes
Battery/Power
Operating Temperature
-14 to 122 °F (-10 to 50 °C)
Operating Time
Up to 20 hours
Power Source
3 x AA batteries (1.5V)
Storage Temperature
-4 to 140 °F (-20 to 60 °C)
Features
Environmental Class
IP54 dustproof and water spray resistant
Self-Leveling
Yes
Tripod Thread
1/4 x 20
Functions
Aligning at an Angle
Yes
Horizontal Leveling
Yes
Plumbing Up and Down
Yes
Setting out Right Angles
Yes
Vertical Aligning
Yes
Vertical and Horizontal Aligning
Yes
General
Dimensions
4" L x 4.5" W x 2" H
Laser Class
Class 2
Laser Type
635 nm
Warranty
2-year
Weight
1.2 lbs (0.54 kg)
Measuring Capabilities
Beam Direction
Horizontal and vertical
Horizontal Accuracy
±1/16-inch at 30 feet
Leveling Accuracy
±3/32”, ±1/8”, ±1/16” at 30 feet
Number of Points
5
Plumb Accuracy
Up: ±3/32” at 30 feet; Down: ±1/8” at 30 feet
Self-Leveling Range
±4.5 degrees
Vertical Accuracy
±3/32”, ±1/8” at 30 feet
Working Range
Up to 60 feet
