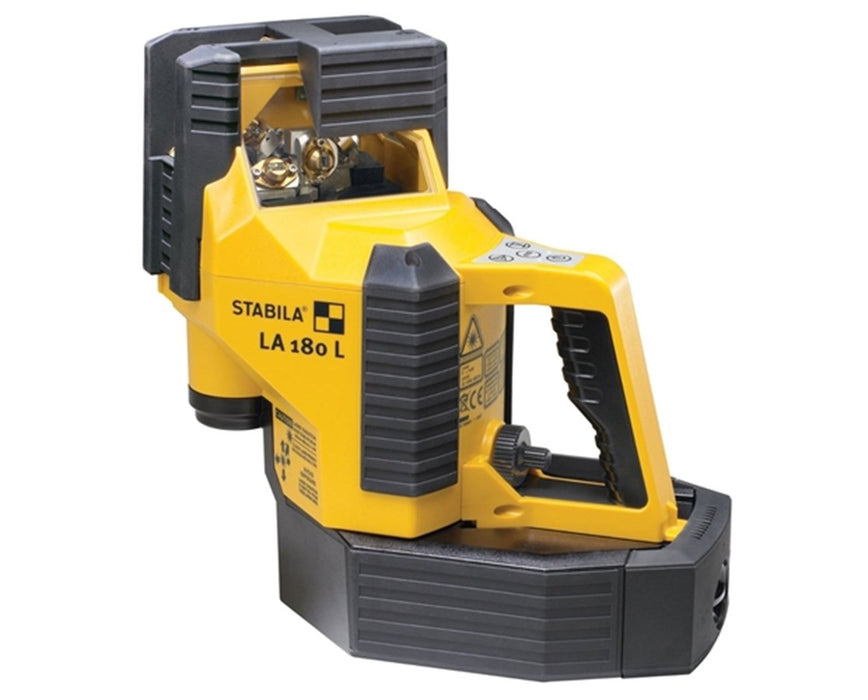

Stabila LA 180 L Multi-Line Laser

MFR#: 02180
Original price USD $2,000.00 - Original price USD $2,000.00
Original price List Price: USD $2,000.00
USD $2,040.76
USD $2,040.76 - USD $2,040.76
Current price USD $2,040.76

Store Pickup: List of available stores available on the Checkout page.

Stabila LA 180 L Multi-Line Laser
Stabila LA 180 L Multi-Line Laser - USD $2,040.76
USD $2,040.76
*Must Purchase 1 for Stabila LA 180 L Multi-Line Laser

The cart will thereforce automatically set Qty to 1 when you order this product

One of our Sales Experts will be in touch!

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 12/18/2024
  • Three vertical lines for right angle layout
  • Horizontal line and plumb point
  • Working range of 300 ft. w/ RF receiver
  • Motor-powered automatic fine adjustment
  • Self-leveling range: approx. ±5 degrees
  • Accuracy: ±3/32” over 100 ft. (±0.3 mm/m)
  • Red 635nm laser beams (<1 mW output)
  • Shock-absorbing soft-grip rubber casing

The Stabila LA 180 L Multi-Line Laser is a versatile and reliable laser designed for faster, more accurate, one-man layout works in any construction site. Ideal for both indoor and outdoor applications, it offers a working range of 60 feet that can be extended to as far as 300 feet when used with the included REC 410 Line RF receiver. It is equipped with a motor-powered fine adjustment that allows automatic angle alignment with just a touch of a button on the receiver. To adjust manually, it includes a rotating dial on its housing.

This multi-line layout laser by Stabila projects a 180-degree horizontal line for leveling, three vertical lines—two in line and one perpendicular forming two 90-degree angles—for right angle layout, and a downward plumb beam for point transfer. These 635-nanometer red laser lines are sharp and bright ensuring accuracy up to ±3/32-inch over 100 feet (±0.3 millimeter per meter). This laser is self-leveling within approximately ±5 degrees and enables manual leveling with a one-touch switch.

The Stabila LA 180 L Multi-Line Laser features an innovative housing design for easy positioning against walls or into corners making it useful for tiling and flooring jobs. Its shock-absorbing soft-grip rubber casing provides optimum protection while the accessible battery drawer permits quick battery changes even when mounted on a tripod. It operates for up to 20 hours with the supplied four D alkaline batteries. It also comes with a carrying case, two target plates, and laser goggles.

  • Three vertical lines for right angle layout
  • Horizontal line and plumb point
  • Working range of up to 300 ft. with RF receiver (included)
  • Motor-powered automatic fine adjustment
  • Self-leveling range: approx. ±5 degrees
  • Accuracy: ±3/32” over 100 ft. (±0.3 mm/m)
  • Red 635nm laser beams (<1 mW output)
  • Shock-absorbing soft-grip rubber casing
  • Housing design fits into any corner or against walls
  • Mountable to tripod with 5/8” threaded connector
  • Battery drawer allows quick battery changes
  • Four D alkaline batteries (1.5V) for 20-hour runtime
  • Class 2 laser beams
  • Includes laser goggles, target plates, and carrying case
  • 2-year manufacturer’s warranty

What’s in the Box

  • Stabila LA 180 L Multi-Line Laser
  • Stabila REC 410 Line RF Receiver w/ Bracket
  • 4x D Batteries (1.5V)
  • 2x Target Plates
  • Laser Goggles
  • Carrying Case
  • 2-Year Manufacturer's Warranty

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 15% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

Order Cancellations will incur a 15% fee.

For complete details of our return policy and process, please refer to our general return policy page.

Applications
Ceiling Joist and Rafter Alignment
Yes
Diagonals and Footings for Patios
Yes
Flooring and Tile Layout
Yes
Installing Drop Ceilings and Lights
Yes
Installing Plumbing Pipes and Conduit
Yes
Installing Windows and Partition Walls
Yes
Leveling and Excavation
Yes
Stud Plumbing and Alignment
Yes
Transferring Points from Floor to Ceiling
Yes
Transferring Points from Wall to Wall
Yes
Battery/Power
Battery Level Indicator
Yes
Operating Temperature
14°F to + 122°F (-10°C to +50°C)
Operating Time
20 hours
Power Source
Four 1.5V Monocells alkaline, size D, LR20
Storage Temperature
-13°F to + 158°F (-25°C to +70°C)
Features
Self-Leveling
Yes
Tripod Thread
5/8"x11
Functions
Aligning at an Angle
Yes
Horizontal Leveling
Yes
Plumbing Up and Down
Down
Setting out Right Angles
Yes
Vertical Aligning
Yes
Vertical and Horizontal Aligning
Yes
General
Dimensions
10.5"L x 10.25"W x 6"H (266.7 x 260.3 x 152 mm)
Laser Class
Class 2
Laser Type
635 nm (<1 mW output)
Warranty
2-year manufacturer’s warranty
Measuring Capabilities
Beam Direction
Horizontal, vertical, plumb down
Horizontal Accuracy
±3/32” over 100 ft. (±0.3 mm/m)
Leveling Accuracy
±3/32” over 100 ft. (±0.3 mm/m)
Number of Lines (Planes)
4
Number of Points
1
Plumb Accuracy
±3/32” over 100 ft. (±0.3 mm/m)
Range with Receiver
up to 300 feet
Self-Leveling Range
±5 degrees
Vertical Accuracy
±1/8" over 100 ft.
Working Range
up to 60 feet
