JLX Self-Leveling 180-Degree Green Beam Cross-Line Laser

MFR#: 40-6681
TIGER#: TS96465
Original price $545.00 - Original price $545.00
Original price List Price:
$545.00 - $545.00
Current price $545.00
JLX Self-Leveling 180-Degree Green Beam Cross-Line Laser
JLX Self-Leveling 180-Degree Green Beam Cross-Line Laser - $545.00
*Must Purchase 1 for JLX Self-Leveling 180-Degree Green Beam Cross-Line Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 7/3/2024

One of our Sales Experts will be in touch!

  • Features Green Beam w/c is 400% Brighter than Red Beam
  • Working range up to 200 feet
  • Self-leveling within ±3 degrees
  • Accuracy: ±1/8 inches at 35 feet
  • Projects 1 180-Degree Horizontal & Vertical or Cross-Line beam
  • Has Pulse Mode & Reliable Pendulum Lock
  • IP54 Dustproof & Water Resistant

The Johnson JLX Self-Leveling 180-Degree Green Beam Cross-Line Laser is a reliable device used by contractors and engineers in framing, flooring, and other leveling applications. It features the high-quality laser device that projects a cross-line, with a 180-degree coverage on its horizontal beam. This self-leveling laser can also be used in cabinetry, tiling walls, drywall track/stud wall installation, and other building jobs.

Durable & High-Quality: This Johnson Level Cross-Line Laser features the GreenBrite Technology, automatically emitting bright green beams that are 400% brighter, especially on sunny or highly-lit conditions, than the common red beams. It comes with a self-leveling range of ±3 degrees, an accuracy of ±1/8 inches at 35 feet, and can cover up to 200 feet of working range. It is designed with a pulse mode, that can be used with a line detector (sold separately), whenever the beams are not visible, and features a reliable pendulum lock for laser protection during transport

The laser has an IP54 Protection class, providing dust and water resistance for the laser device. Together with the 180-Degree Laser, this kit comes with a magnetic base that provides a strong and sturdy hold, a magnetic bracket, Li-ion rechargeable battery pack and charger, alkaline battery compartment (batteries sold separately), and a hard-shell case. It is covered with a 3-year warranty, providing durability needed in the field.

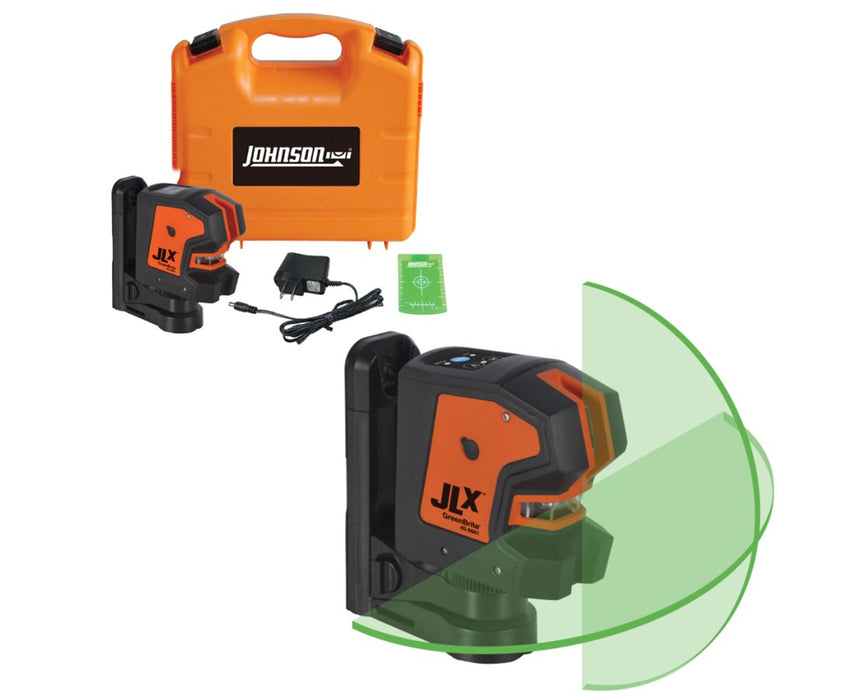

What’s in the Box

  • Johnson Self-Leveling Cross-Line Laser
  • (1) Magnetic Base
  • (1) Magnetic Bracket
  • (1) Li-Ion Battery Pack w/ Charger
  • (1) Alkaline Battery Compartment
  • (1) Hard Shell Case

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Ceiling Joist and Rafter Alignment
Flooring and Tile Layout
Installing Drop Ceilings and Lights
Installing Windows and Partition Walls
Leveling and Excavation
Stud Plumbing and Alignment
Operating Temperature
14°F to 113°F
Operating Time
6 Hrs.
Power Source
Lithium Ion Battery
Environmental Class
IP 54
Horizontal Leveling
Setting out Right Angles
Vertical Aligning
Vertical and Horizontal Aligning
6" x 6" x 2"
Laser Class
Class IIIa
Laser Type
520nm±10nm (Green)
3 Years
1.3 lbs.
Measuring Capabilities
Beam Direction
Horizontal & Vertical ( 180 Degrees)
Leveling Accuracy
Number of Lines (Planes)
Range with Receiver
Up to 75'
Self-Leveling Range
Working Range
Up to 200'
