Industrial Alignment Cross-Line Laser Level

MFR#: 40-6230
TIGER#: TS31000
Original price USD $629.20 - Original price USD $629.20
Original price List Price: USD
USD $629.20
USD $629.20 - USD $629.20
Current price USD $629.20

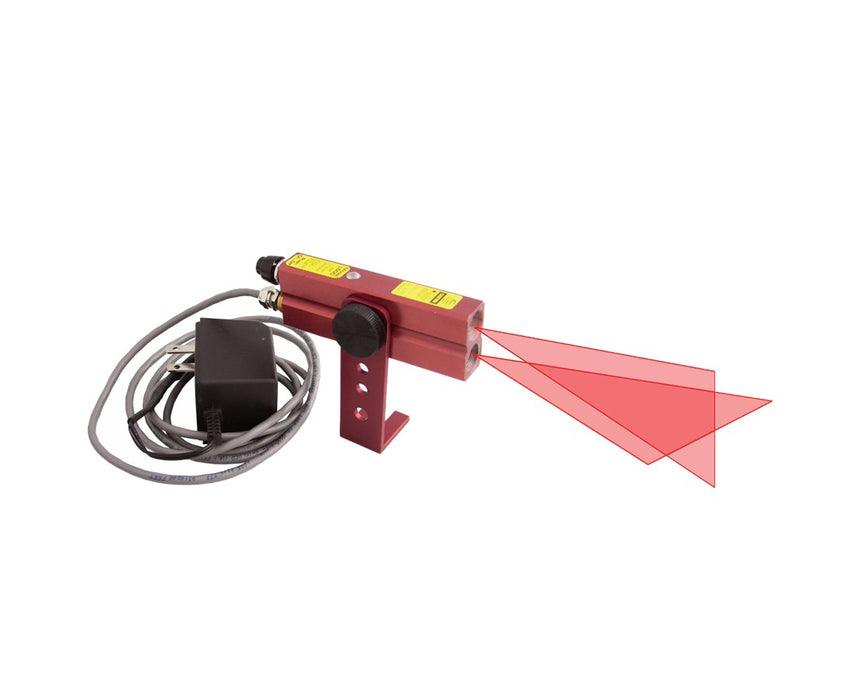

Industrial Alignment Cross-Line Laser Level
Industrial Alignment Cross-Line Laser Level - USD $629.20
USD $629.20
*Must Purchase 1 for Industrial Alignment Cross-Line Laser Level

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 7 - 10 Business Days Shipping Date By: 8/3/2024

One of our Sales Experts will be in touch!

  • Choice of Red or Green beam
  • Cylindrical lens technology
  • Line fan angle - 70 degrees
  • 1/16" line widths
  • Push on/off switch
  • Top & bottom beam indicators
  • Hard anodized, scratch resistant housing
  • Laser diode rated for 10,000 hours of operation

The Johnson Level Industrial Alignment Cross-Line Laser Level has a wide range of use. Ideal for centering parts on equipment - riveters, positioning parts on welders, drill press alignments, site layout, cross cut and break measurements. Its cylindrical lens technology comes with a solid glass optical system that draws a continuous line at any distance. The laser diode is rated for 10,000 hours of operation or equivalent to 5 years normal operating condition. It has line fan angle of 70 degrees that draws two 25-inch lines at 18 inches distance and a line width of 1/16-inch.

It comes with hard anodized scratch resistance housing and a push on/off switch that turn unit on and off without having to disconnect power. This Johnson Level Industrial Alignment Cross-Line Laser Level has two beam indicators for easy viewing, one on the top and one at the bottom. It comes in a Red beam with a laser wavelength of 635nm+/-10nm or Green beam with a laser wavelength of 532nm+/-10nm and includes 110V AC adapter, mounting bracket and instructions manual. It also comes with a 1-year warranty.

Configuration Options

The Johnson Level Industrial Alignment Cross-Line Laser Level is available in different beam colors. Select your preference from the drop-down menu above.

  • 40-6230: Red Beam (Range up to 100 ft.)
  • 40-6232: Green Beam (Range up to 150 ft.)
  • Range up to 100 ft. (Red beam) or 150 ft. (Green beam)
  • Cylindrical lens technology
  • Line fan angle - 70 degrees
  • Line widths - 1/16"
  • Push on/off switch
  • Beam on indicator - two indicators top & bottom for easy viewing
  • Hard anodized - scratch resistance housing
  • Laser diode - rated for 10,000 hours of operation

What’s in the Box

  • Johnson Level Industrial Alignment Cross-Line Laser Level
  • 110V AC adapter
  • Mounting bracket
  • User manual
  • 1-year warranty

Available Package Options

Beam Color: Red (Range up to 100 ft.) or Green (Range up to 150 ft.)

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Battery/Power
Operating Time
10,000 hours
Power Source
110 AC
Features
Environmental Class
IP67
General
Dimensions
4" x 0.75" x 1.375"
Laser Class
Il
Laser Type
635nm+/-10nm (Red) or 532nm+/-10nm (Green)
Warranty
1-year warranty
Weight
7.5 oz
Measuring Capabilities
Number of Lines (Planes)
2
