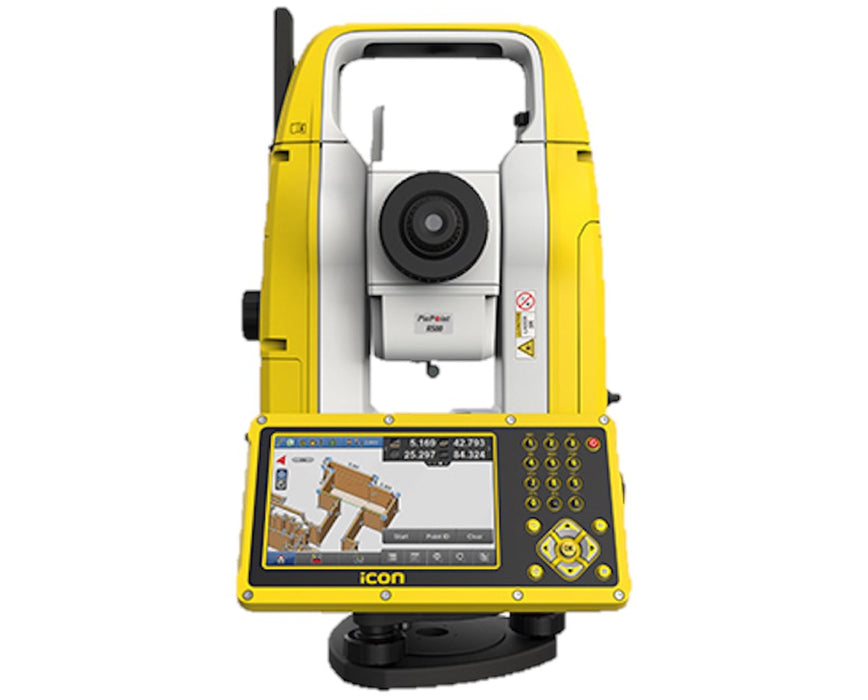

iCON Builder 70 Manual Total Station

by Leica
MFR#: 868588
TIGER#: TS70426
Original price $9,750.00 - Original price $9,750.00
Original price List Price: $9,750.00
$9,750.00
$9,750.00 - $9,750.00
Current price $9,750.00
iCON Builder 70 Manual Total Station
iCON Builder 70 Manual Total Station - $9,750.00
$9,750.00
*Must Purchase 1 for iCON Builder 70 Manual Total Station

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 6/16/2024
  • Accessories not included

One of our Sales Experts will be in touch!

Essential Add-Ons:



  • Angular accuracy options 1”, 2”, or 5”
  • Single-prism range up to 11,483 feet
  • Reflectorless range up to 1,640 feet
  • Internal memory up to 2 GB
  • Integrated iCON Build and iCON Build Plus onboard software
  • Built-in Bluetooth connectivity
  • One-year warranty
  • IP66 protection class
  • Battery life up to 18 hours

The Leica iCON Builder 70 Manual Total Station is a versatile measuring device that allows reflectorless and prism measurements to accommodate the needs of surveying and construction industries. It provides a working range of 1,640 feet, which can be extended up to 11,483 feet when using a prism. Available in three angular accuracies (one-second, two-second, or five-second), it can easily and accurately layout points, lines, and even complex structures.

This manual total station by Leica offers mobile data capability with its Bluetooth and WLAN connectivity, enabling direct transfer of data to and from the instrument. It also includes the iCON Build Plus onboard software for cut-and-fill, slope, and stake-out applications. For the user interface, the Leica iCB70 is equipped with a five-inch color touchscreen display with a full numeric keypad. It also includes 2 GB internal memory, USB stick, and RS232 serial port.

The Leica iCON Builder 70 Manual Total Station features a FineFocus telescope with up to 30 times magnification and a Laser class 2 laser plummet that generates a 2.5-millimeter laser point at 1.5-meter instrument height. It utilizes quadruple axis compensation with an accuracy of up to 0.5-second. With its IP66 protection class and Military Standard 810G compliance, it is highly durable and long-lasting.

Configuration Options

The Leica iCON Builder 70 Manual Total Station comes in three accuracy options to accommodate all surveying and construction needs. Please select your preference from the menu above.


Specifications

iCON Builder 50

iCON Builder 70

Angular Accuracy 2", 5" 1", 2", 5"
Accuracy 2 mm + 2 ppm (typical 3 - 6 s) 2 mm + 2 ppm (typical 3 - 6 s)
Reflectorless Range 1,640 ft. 1,640 ft.
Prism Measurement - Yes
Single Prism Distance - Up to 11,483 ft.
Distance with Reflective Tape - 820 ft.
Accuracy (Single Mode) - 1 mm + 1.5 ppm (typical 2.4 s)
Accuracy (Continuous) - 3 mm + 1.5 ppm (typical < 0.15 s)
Quadruple Axis Compensation Yes Yes
Compensator Range ± 4’ (± 0.07 gon) ±4’ (± 0.07 gon)
Compensator Setting Accuracy 0.5" / 1.5" 0.5" / 1.5"
Display Resolution 0.1" (0.1 mgon) 0.1" (0.1 mgon)
Electronic Level Resolution 2" 2"
Circular Level Sensitivity 6' / 2 mm 6' / 2 mm
Telescope Magnification 30x 30x
Resolving Power 3" 3"
Focusing Range 1.55 m / 5.08 ft. to infinity 1.55 m / 5.08 ft. to infinity
Field of View 1°30' / 1.66 gon / 2.7 m at 100 m 1°30' / 1.66 gon / 2.7 m at 100 m
Laser Plummet (Laser Class 2) Yes Yes
On-Board Software iCON Build (incl. Sketching, Layout Points, Layout Lines, Checks, As-built) iCON Build Plus (incl. Sketching, Layout Points, Layout Lines, Checks, As-built, Volumes, Cut/Fill, Slopes, Stakeout)
Display 5" color touchscreen 5" color touchscreen
Full Numeric Keypad Yes Yes
Key Illumination Yes Yes
Lithium-Ion Battery Yes Yes
Operating Time up to 18 hours up to 18 hours
WLAN Wireless Communication - Yes
Bluetooth Technology Yes Yes
Internal Memory 2 GB Flash 2 GB Flash
SD Memory Card Yes Yes
Serial Interface Yes Yes
USB Memory Stick Yes Yes
  • Choice of accuracy: 1-Second, 2-Second or 5-Second
  • Reflectorless range up to 1,640 feet
  • Range up to 11,483 feet (3,500 m) with prism
  • Bluetooth and WLAN connectivity
  • iCON Build Plus onboard software
  • Quadruple axis compensation
  • Laser class 2 laser plummet
  • Magnifies up to 30x
  • Memory: 2 GB
  • 5-inch color touchscreen display
  • Full numeric keypad
  • Exchangeable lithium-ion battery
  • Battery life up to 18 hours
  • Rated IP66 for dust and water resistance
  • Complies with Military Standard 810G
  • 1-year manufacturer’s warranty

What’s in the Box

  • Leica iCON Builder 70 Manual Total Station
  • iCON build and iCON build plus On-Board Software
  • USB Card
  • Carrying Case
  • Quick Guide
  • 1-Year Manufacturer’s Warranty

Available Package Options

  • Accuracy: 1-Second, 2-Second, or 5-Second

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Angle Measurement
Accuracy
1-Second, 2-Second or 5-Second
Detection Method
Quadruple axis compensation
Diameter of Circle
2 mm
Measuring Method/Reading System
Absolute, continuous, and diametrical
Minimum Reading
0.1" (0.1 mgon)
Applications
Accident Reconstruction
Yes
Archaeology
Yes
Environment Studies
Yes
Geomarking
Yes
Mapping and GIS (geographic information systems)
Yes
Surveying and Construction
Yes
Utilities
Yes
Battery/Power
Battery Life
up to 18 hours
Battery Life Alert
Yes
Power Source
Exchangeable Lithium-Ion battery
Voltage
13.0 V DC & 16 W max
Display and Keypad
Backlight
Yes
Keys
Full numeric keypad (22 keys)
Pixels
800 x 480 px
Touchscreen
Yes
Type
Color touchscreen display
Distance Measurement
EDM Accuracy (Precision)
1-Second, 2-Second or 5-Second
Minimum Reading
0 m
Unit of Measure (distance display)
m, ft.
Functions
Angle and Distance Stake Out
Yes
Area Calculation
Yes
Coordinate Measurement Point
Yes
Missing Line
Yes
Offsets
Yes
Real-Time Video Imaging
Yes
Remote Elevation
Yes
Resection
Yes
Stake Out Line
Yes
General
Guide Light
Yes
Internal Memory
2 GB
Protection Class
IP66
Software
iCON build and iCON build plus
Tribrach
Yes
Warranty
1-year manufacturer’s warranty
Weight
4.5 kg (10 lbs.)
Interface
Bluetooth
Yes
Pin Port
RS232 (5-pin)
USB
Yes
Laser Plummet
Accuracy
1.5 mm at 1.5 m instrument height
Class
2
Laser Pointer
Accuracy
1.5 mm at 1.5 m instrument height
Class
2
Measurement Range (under fair weather conditions)
No Prism
0 to 1,640 ft. (0 m to 500 m)
Reflective Tape
> 250 m (60 mm x 60 mm)
Single Prism
5 to 11,483 ft. (1.5 m to 3.500 m)
Optical Plummet
Field of View
1°30’ / 1.66 gon / 2.7 m at 100 m
Focus Range
1.55 m / 5.08 ft to infinity
Erect
Magnification
30x
Telescope
Diameter of Objective Lens (Aperture)
2.5 mm at 1.5 m instrument height
Field of View
1°30’ / 1.66 gon / 2.7 m at 100 m
Magnification
30x
Minimum Focus Distance
1.55 m / 5.08 ft
Reflectorless
0 m - 500 m: 2 mm + 2 ppm (typical 3 - 6 s)
Resolving Power
3”
Sight Distance Precision/Focus Range
1.55 m / 5.08 ft to infinity
Tilt Sensor/Compensator
Range
+/- 4’ (+/- 0.07 gon)
Setting Accuracy
0.5" / 1.5"
Type
Quadruple axis compensation
