Horizontal / Vertical Tracking Green Beam Rotary Laser Level Kit

MFR#: 40-6590
TIGER#: TS56973
Original price List Price: $3,028.16
You Save: $863.02 -28%
Original price $3,028.16 - Original price $3,028.16
Original price List Price: $3,028.16
Current price $2,165.14
$2,165.14 - $2,165.14
Current price $2,165.14
Horizontal / Vertical Tracking Green Beam Rotary Laser Level Kit
Horizontal / Vertical Tracking Green Beam Rotary Laser Level Kit - $2,165.14
$2,165.14
*Must Purchase 1 for Horizontal / Vertical Tracking Green Beam Rotary Laser Level Kit

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 7/4/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$43.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$648.00
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Ultimate in-slope control and layout
  • Simplifies long distance layout work
  • 400% more visible than red beam
  • Class 3 green beam laser
  • Horizontal and vertical self-leveling and tracking
  • Self-leveling range of up to ±5°
  • Exterior range of up to 1,500 feet
  • Accuracy of up to ±3/32 inch at 100 feet

The Johnson Level Horizontal / Vertical Tracking Green Beam Rotary Laser offers the ultimate in slope control and layout for indoor or outdoor job sites. It simplifies long-distance layout work and turns a two-person job into a single person job. It comes with GreenBrite Technology which is 400% more visible than a red beam. Its bright, class 3 green beam laser is the most visible laser for indoor work.

For a simple reference line layout, the Johnson Level Tracking Green Beam Rotary Laser automatically locks onto the detector.  It's horizontal and vertical self-leveling and tracking, and suitable for a variety of layout work including framing, drywall track, and tilt-up. The tilt indicator alerts the operator when the laser is bumped or moved and beyond the self-leveling range of up to ±5°. With detector, it has an exterior range of up to 1,500 feet and up to 200 feet diameter with a remote. This laser is accurate up to ±3/32 inch at 100 feet.

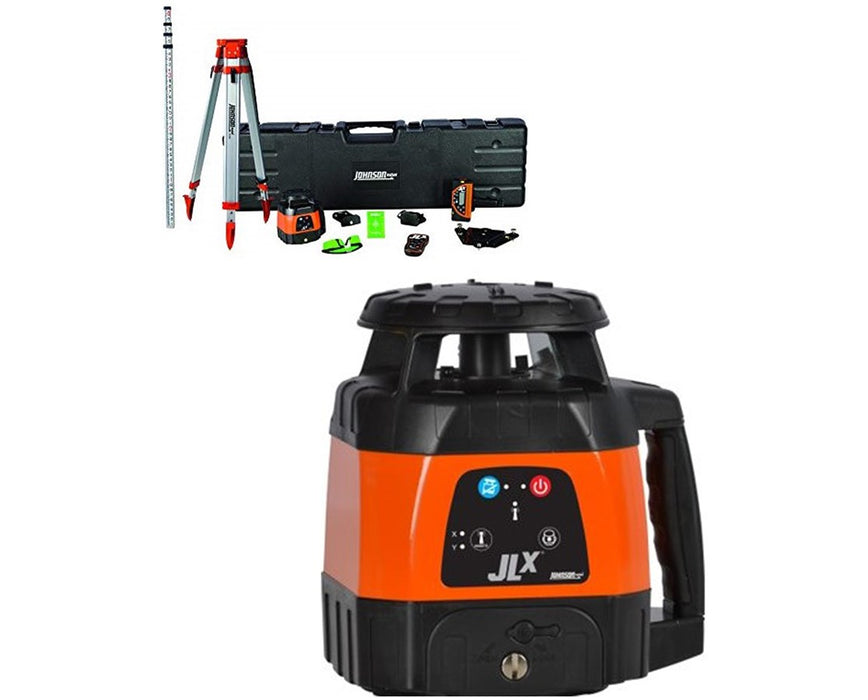

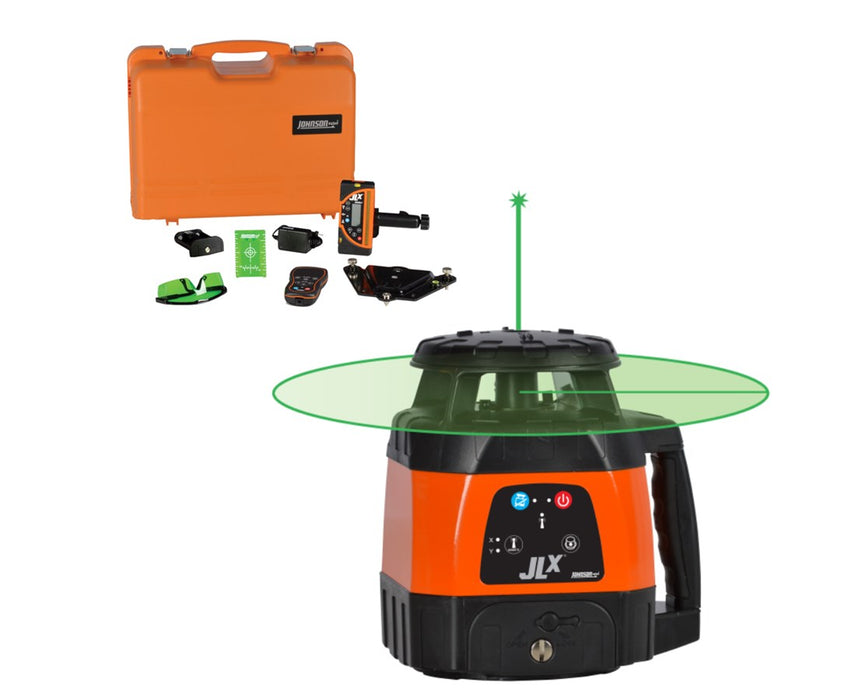

Available in a complete kit, this Johnson Level green beam rotary laser includes a tinted glasses, magnetic target, vertical bracket, NiMH battery and charger, four "C" alkaline battery compartment (batteries not included), a detector with clamp (four "AA" alkaline batteries included), remote control (two "AA" alkaline batteries included), instruction manual, and hard-shell carrying case. This rotary laser has an IP protection class of IP54 and has a high level of protection against dust and a fair amount of protection against water. It comes backed by a 3-year warranty.

Product Options

The Johnson Level Horizontal / Vertical Tracking Green Beam Rotary Laser comes in two variations that differ in their package inclusions. You can pick the standard option, which comes with all the included add-ons, or the option with all the add-ons, plus an additional Aluminum Tripod and a 13' Grade Rod (feet/8ths). Kindly choose your preference on the options menu above.

  • Standard Kit (40-6590I)
  • w/ Tripod & Grade Rod (40-6590)

What’s in the Box

  • Johnson Level Horizontal / Vertical Tracking Green Beam Rotary Laser
  • NiMH battery and charger
  • 4 "C" alkaline battery compartment
  • Detector with Clamp
  • 4 "AA" alkaline batteries
  • Remote control with 2 "AA" alkaline batteries
  • Tinted glasses
  • Magnetic target
  • Vertical bracket
  • Hard-shell carrying case
  • Instruction manual
  • 3-year manufacturer's warranty

Available Package Options

  • Kit Type: Standard or w/ 13' grade rod (feet/8ths) & Aluminum tripod

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±3/32 inch at 100 feet
Vertical
±3/32 inch at 100 feet
Applications
Installation/Leveling Ceiling Grids
Yes
Installation/Leveling Interior Walls
Yes
Squaring and Layout of Partitions, Walls & Tile Floors
Yes
Transferring Points from Floor to Ceiling
Yes
Battery/Power
Battery Life with Alkaline Batteries
Up to 16 hours
Battery Life with Rechargeable Battery Pack
Up to 18 hours
Power Source
NIMH or 4 x C-cell alkaline batteries
Extra Technology
Detector/Receiver
Yes
Remote Control
Yes
Features
Adjustable Rotating Speed
300 and 800 RPM
Protection Class
IP54 dustproof and water splash resistant
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
Slope Match
Yes
General
Dimensions
8.62" L x 6.29" W X 7.95" H
Maximum Power Output
<=5mW
Remote Control Operating Distance
Up to 200 feet with remote
Warranty
3-year
Weight
4.15 lbs (1.88 kg)
Laser
Classification
Class III
Color
Green
Direction
Horizontal/Vertical
Visibility
Highly Visible
Wavelength
520nm ±10nm
Range
Exterior
Up to 1,500 feet (457 m) with detector
Remote
Up to 200 feet with remote
Self Leveling
±5 degrees
Temperature
Operating
32 to 104 °F (0 to 40 °C)
