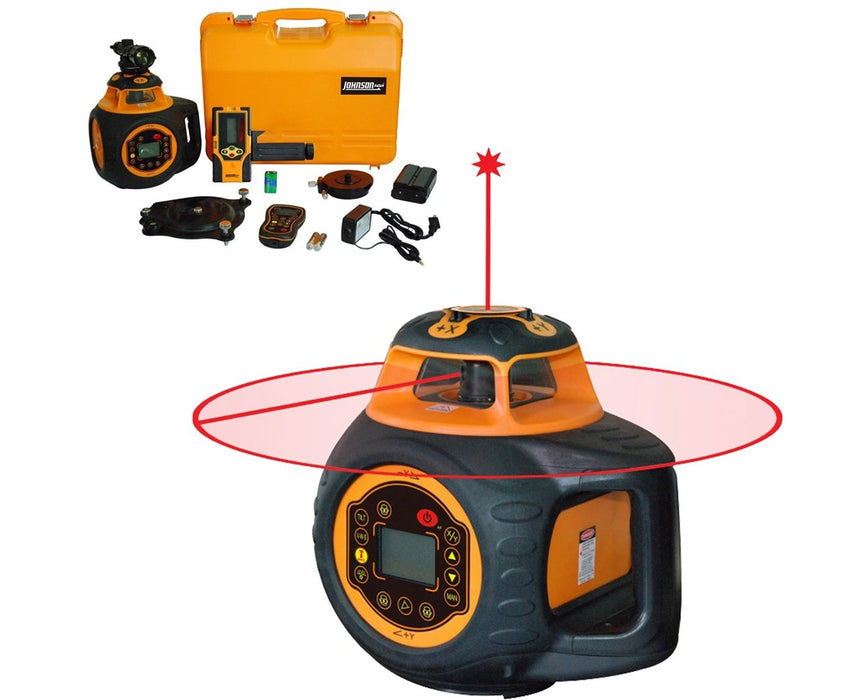

Horizontal/Vertical Electronic Dual Grade Laser

Johnson Level
by Johnson Level
MFR#: 40-6582
List Price: USD $2,891.42
You Save: USD $824.06 -29%
USD $2,891.42 - USD $2,891.42
List Price: USD $2,891.42
USD $2,067.36
USD $2,067.36 - USD $2,067.36
USD $2,067.36

Store Pickup: List of available stores available on the Checkout page.
Horizontal/Vertical Electronic Dual Grade Laser
Horizontal/Vertical Electronic Dual Grade Laser - USD $2,067.36
USD $2,067.36
*Must Purchase 1 for Horizontal/Vertical Electronic Dual Grade Laser

The cart will thereforce automatically set Qty to 1 when you order this product

One of our Sales Experts will be in touch!
Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 12/6/2024
Documents
Product Manual Item Brochure
Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$38.95
Universal Contractor's Tripod
Universal Contractor's Tripod
Details
$71.25
Fiberglass Rod
Fiberglass Rod
Details
$92.25
CR700 Combined Machine Control Receiver
CR700 Combined Machine Control Receiver
Details
$548.00
$685.00
  • Range up to 2,000 feet with laser receiver
  • Accuracy ±1/16 inch at 100 feet
  • Auto-leveling within ±8 degrees
  • Grade setting: Dual ±10%
  • Programmable dual slope
  • Scan angles: 0°, 10°, 45°, 90° & 180°
  • Tilt alarm
  • Adjustable rotation speed
  • IP66 dustproof and water resistant

Featuring a programmable dual slope function that allows the user to perform slope at different inclinations in both x and y-axis, the Johnson Horizontal/Vertical Electronic Dual Grade Laser is ideal for outdoor applications such as site preparation, excavating, landscaping-terracing, controlling concrete pours and the link. It features an operating range of up to 2,000 feet with laser receiver and has an accuracy of ±1/16-inch at 100 feet. Auto-leveling within ±8 degrees, this dual grade laser offers a grade setting of ±10 percent.

The Johnson 40-6582 includes a programmable dual slope function that can perform slope leveling at different inclinations in both x and y-axis. Featuring adjustable rotation speed, it also comes with four laser scan angles of 0, 10, 45, 90 and 180 degrees. Also, it has a tilt alarm function that ensures product accuracy by indicating if the laser has been moved.

This Johnson horizontal/vertical dual grade laser features a backlit LCD display and operates with radio frequency remote control. With an IP66 rating, it is dustproof and water resistant. This electronic grade laser uses 40 hours with rechargeable Li-ion battery and up to 100 hours with alkaline battery. In addition, it includes a 5/8-11 tripod screw for easy tripod mounting.

  • ±1/16 inch accuracy at 100 feet
  • Up to 2,000 feet range with laser receiver
  • Auto-leveling within ±8 degrees
  • Grade setting: Dual ±10%
  • Programmable dual slope
  • Scan angles: 0, 10, 45, 90 and 180 degrees
  • Rotation speed: 0, 300, 600, 110 RPM
  • Tilt alarm
  • Backlit LCD display
  • IP66 dustproof and water resistant
  • Up to 40 hours with rechargeable Li-ion battery
  • Up to 100 hours with alkaline battery
  • 5/8-11 tripod

What’s in the Box

  • Johnson Horizontal/Vertical Electronic Dual Grade Laser 40-6582
  • Li-ion rechargeable battery pack
  • Alkaline battery compartment (batteries sold separately)
  • Li-ion battery adapter
  • Hard carrying case
  • Remote control with 2 AA batteries
  • Laser receiver with 9V battery and clamp
  • Sighting scope
  • Vertical bracket
  • Fine adjustment plate
  • User manual
  • 3-year manufacturer's warranty

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±1/16 inch at 100 ft. (+/-1.5mm/30mg)
Vertical
±1/16 inch at 100 ft. (+/-1.5mm/30mg)
Applications
Concrete Forms, Footings and Foundations
yes
Checking Building Square & Area
yes
Checking Elevations of Sub-Base and Sub-Grade
yes
Checking/Setting Elevations
yes
Estimating Cut & Fill
yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
yes
Installation/Leveling Ceiling Grids
yes
Installation/Leveling Interior Walls
yes
Locating Finished Floor Levels
yes
Plumb Reference
yes
Short-Range Leveling for Decks, Patios & Swimming Pools
yes
Short-Run Vertical Alignment
yes
Squaring and Layout of Partitions, Walls & Tile Floors
yes
Transferring Points from Floor to Ceiling
yes
Battery/Power
Battery Life Alert
yes
Battery Life with Alkaline Batteries
Up to 100 hours
Battery Life with Rechargeable Battery Pack
Up to 40 hours
Power Source
Rechargeable Li-Ion or D alkaline batteries
Extra Technology
Detector/Receiver
Included
Remote Control
Included
Features
Adjustable Rotating Speed
0, 300, 600, 1100 rpm
Bump Sensor (H.I./Out of Position Alert)
yes
Display
Backlit, graphic LCD
Plumb Point
yes
Protection Class
IP66 (dustproof and protection against powerful water jets)
Tripod Adapter (Center Screw Thread)
5/8-11
Wall Mount Bracket
Included
Functions
Automatic Leveling
yes
Grade Operation
Automatic, manual
Scanning Modes
0, 10, 45, 90 and 180 degrees
General
Dimensions
9.25 x 7.08 x 9.76 in (23.5 x 18.0 x 24.8 cm)
Maximum Power Output
=5mw
Remote Control Operating Distance
200 ft. (60m)
Warranty
3-year
Weight
7.27 lbs. (3.3 kg)
Grade
Accuracy
±1/16 inch at 100 ft. (+/-1.5mm/30mg)
Percentage
± 10%
Type
Dual
Laser
Classification
Class Illa
Color
Red
Direction
Horizontal/vertical
Visibility
Visible
Wavelength
635nm ±10nm
Range
Exterior
2,000 ft. (600m)
Interior
200 ft. (60m)
Self Leveling
±8 degrees
Temperature
Operating
14°F to 113°F (-10°C to 45°C)
