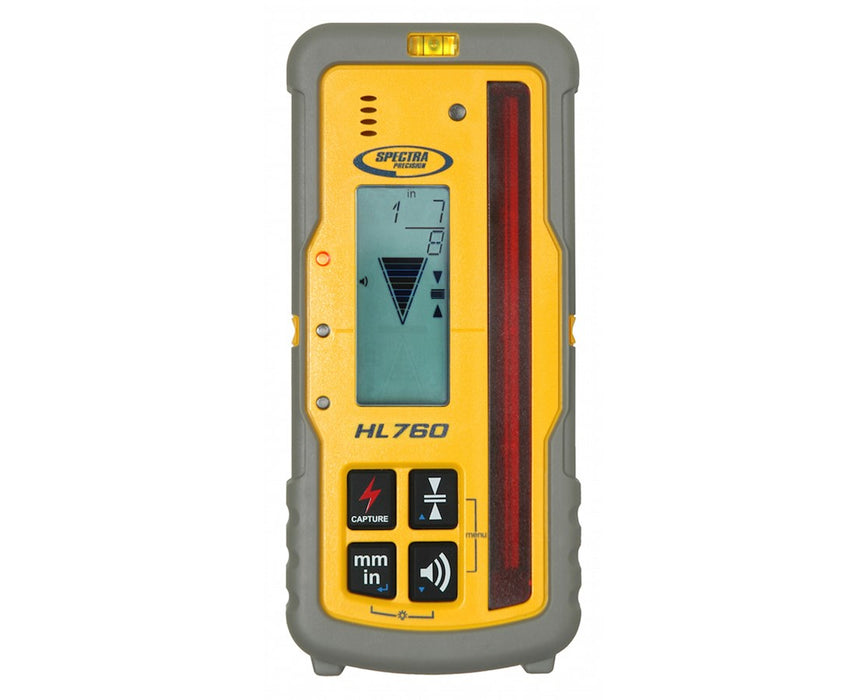

HL760 Laser Receiver

TIGER#: TS29414
Original price $384.76 - Original price $384.76
Original price List Price:
$384.76
$384.76 - $384.76
Current price $384.76
HL760 Laser Receiver
HL760 Laser Receiver - $384.76
$384.76
*Must Purchase 1 for HL760 Laser Receiver

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 6/28/2024

One of our Sales Experts will be in touch!

  • Working radius: 3 to 1,500 feet
  • Fingerprint functionality
  • Digital readout of elevation
  • Automatic Grade Match and PlaneLok
  • Six accuracy levels
  • Anti-strobe sensor
  • Battery life up to 60 hours
  • IP67 dustproof and water immersible

With a workingradius of up to 1,500 feet, the Spectra Precision HL760 features a digital readout of elevation and fingerprint functionality providing fast grade checking and accurate laser readings. This advanced laser detector includes all the functions of theHL750with the addition of grade matching and PlaneLok capabilities that are suitable while working with theLL400HV,HV302,GL412N, andGL422Nlasers.

Includes a rod clamp, the HL760 shows the exact distance from on-grade on its large front and rear LCDs. It also has six accuracy settings and selectable units of measure are displayed in millimeter, centimeter, feet,aninchor fractional inches. In addition, the HL760 can communicate with another HL760 for a longer range, wireless remotedisplay, and monitoring.

This Spectra laser detector has a 5-inch reception height for quick acquisition of the laser beam and an anti-strobe sensor that prevents false readings from strobe lights. A firmware update is also available which enhances the LED light rejection feature of the Spectra receiver. Itssensitivity is now more resistant from the influence of LED light frequencies for more efficient and undisturbed reception.

With an IP67 rating, the HL760 is dustproof, water-resistant and can withstand a drop of up to 10 feet high. Operates up to 60 hours using the included alkaline batteries, this Spectra laser receiver comes with a 3-year manufacturer's warranty.

  • Workingradius: 3 - 1,500 ft.
  • Fingerprint functionality detects only the laser beam of the paired transmitter
  • Digital readout of elevation
  • Works with Spectra lasers in automatic Grade Match and PlaneLok applications
  • Six accuracy levels
  • Anti-strobe sensor to prevent false reading from job site strobe lights
  • Large reception height to ease beam reception
  • LED light rejection firmware update
  • Automatic shut-off after 30 minutes
  • Drop-resistant up to ten feet
  • LCD screen
  • Up to 60-hour battery life
  • Water resistant and dustproof to IP-67
  • 3-year warranty

What’s in the Box

  • Spectra HL760 Laser Receiver
  • C70 rod clamp
  • 2 x AA alkaline batteries
  • User manual
  • 3-year manufacturer's warranty

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Calibration Mode
±3 15/16 inches (0.1 mm)
Coarse
±3/8 inches (10.0 mm)
Fine
±1/16-inch (2 mm)
Medium
±3/16 inches (5.0 mm)
Super Fine
±1/16-inch (1 mm)
Ultra Fine
±3 15/16 inches (0.5 mm)
Battery/Power
Battery Life
Up to 60 hours
Low Battery Indicator
Yes
Power Source
AA alkaline batteries
Features
Anti-Strobe Technology
Yes
Automatic Shutoff
After 30 minutes or 24 hours
Digital Readout
mm, cm, ft, in, frac. in
Display
Dual LCD
Internal Radio
Built-in; full 2-way communication
Laser Detection Height
5 inches
Last Beam Memory
Yes
LED Indicators
Green on-grade, Red Hi, Blue Low
Reception Angle
45 degrees
General
Bracket/Clamp
Included
Dimensions
6.6" L x 3.0" W x 1.4" L (168.0 x 76.0 x 36.0 mm)
Housing
Rubber over mold
Protection Class
IP67 dustproof and water immersible up to 3.3 feet (1 m)
Warranty
3-year
Weight
0.59 lbs (0.27 kg)
Temperature
Operating
-4 to 122 °F (-20 to 50 °C)
Volume Settings
Loud
110 dBA
Low
65 dBA
Medium
95 dBA
