Green-Beam Five-Point Self-Leveling Alignment Laser

by Bosch
MFR#: GPL100-50G
TIGER#: TS90429
Original price List Price: $359.00
You Save: $130.80 -36%
Original price $359.00 - Original price $359.00
Original price List Price: $359.00
Current price $228.20
$228.20 - $228.20
Current price $228.20
Green-Beam Five-Point Self-Leveling Alignment Laser
Green-Beam Five-Point Self-Leveling Alignment Laser - $228.20
$228.20
*Must Purchase 1 for Green-Beam Five-Point Self-Leveling Alignment Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 5 - 7 Business Days Shipping Date By: 5/3/2024

One of our Sales Experts will be in touch!

Documents
  • Range up to 125 feet
  • Accuracy up to ±1/4 inch at 100 feet
  • Self-Leveling up to ±5 degrees
  • 5-direction 90-degree angles
  • Smart Pendulum Leveling System
  • Quad Mirror Technology
  • IP65 dustproof
  • Magnetic mount with 1/4-20 tripod thread

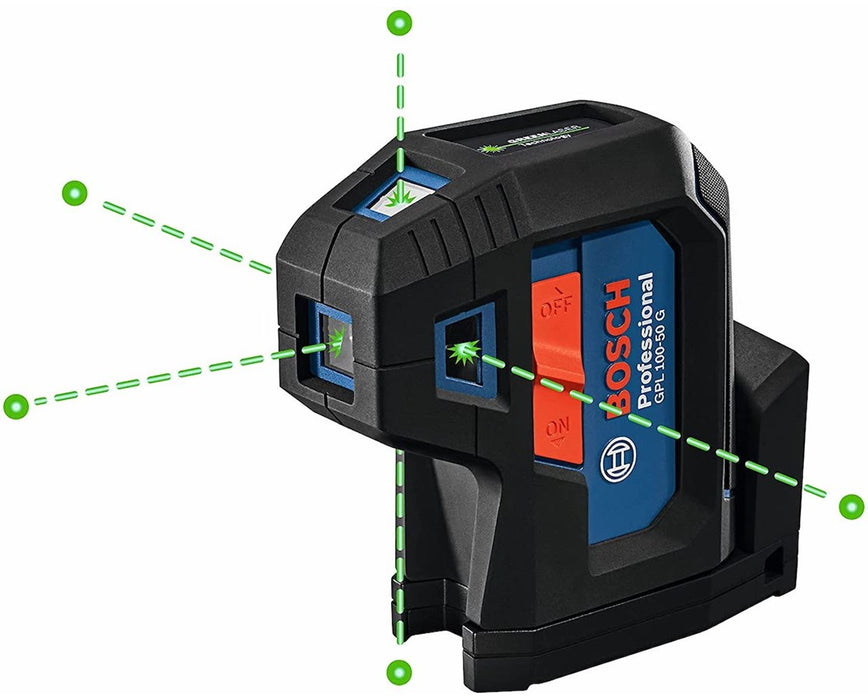

The Bosch GPL100-50G Green-Beam Five-Point is a self-leveling construction laser that projects 5 points up to 125 feet within ±1/4 inch accuracy. With quick completion of indoor applications, including layout and alignment, the Bosch GPL100-50G plumb laser provides all you need to efficiently do the job!

Smart Pendulum Leveling System

After turning on the laser instrument, the Bosch GPL100-50G's self-leveling function automatically compensates for any misalignments beyond ±5 degrees. If it is further out of level, the beams flash rapidly until the point laser is set within the self-leveling range. When the tool is shut off, automatic self-leveling is locked for safe transport.

Projection and Transfer of Points

The 5 beams on the GPL100-50G laser level allow for the accurate transfer and alignment of plumb, level and square points in all vertical and horizontal directions. For easy corner layout, the left and right beams sit at a 90-degree angle. In addition, the Bosch GPL5 is equipped with reference lines built into the housing ensure precise positioning and transfer of points.

Durable Housing

At only 4-inches tall, the Bosch GPL5 interior construction laser is built to last. There is a strong over-molded housing around the instrument that provides extra protection against potential damage, while its IP5X rating ensures resistance from dust, leaving your laser level to function properly in all conditions.

Construction professionals who require an efficient tool for layout and alignment tasks will enjoy the Bosch dot laser. With the projection of plumb and level points, as well as setting out right angles, the GPL100-50G exhibits all the features expected in a superior construction laser.

Click here to compare Bosch dot/plumb lasers

  • 5 laser beams project plumb, level, and 90-degree square points
  • Pocket-sized and lightweight
  • Working range up to 100 feet
  • Accurate within ±1/4 inch
  • Quad Mirror Technology provides accurate 90-degree angles in 5 directions
  • Smart Pendulum Leveling System automatically compensates for misalignments within ±5 degrees and signals when tool is further out of level
  • Self-leveling function locks when instrument is powered off
  • Included multipurpose attachment for mounting with magnets, strap, or threaded mounts
  • Integrated reference lines help to precisely position tool and transfer points
  • Easy field recalibration if necessary after being dropped
  • Durable housing with IP65 dust protection
  • Dual tripod thread
  • Limited 2-year warranty

What’s in the Box

  • (1) GPL100-50G Green-Beam Five-Point Self-Leveling Alignment Laser
  • (1) Built-In Multi-Purpose Mount
  • (2) AA Batteries
  • (1) Hard Carrying Case



Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges and a 15% Handling Fee. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Applications
Ceiling Joist and Rafter Alignment
Yes
Diagonals and Footings for Patios
Yes
Flooring and Tile Layout
Yes
Installing Drop Ceilings and Lights
Yes
Installing Plumbing Pipes and Conduit
Yes
Installing Windows and Partition Walls
Yes
Stud Plumbing and Alignment
Yes
Transferring Points from Floor to Ceiling
Yes
Transferring Points from Wall to Wall
Yes
Battery/Power
Operating Temperature
14°F ~ 113 °F –10 °C to +45 °C
Operating Time
8 h
Power Source
2 × 1.5 V LR6 (AA)
Storage Temperature
–4°F ~ 158 °F –20 °C to +70 °C
Features
Environmental Class
IP 65
Self-Leveling
Yes
Tripod Thread
1/4 In.-20
General
Dimensions
4.5” x 2” x 4.5” (115 × 50 × 113 mm)
Laser Class
2
Laser Type
500–540 nm, < 1 mW
Warranty
2-year limited warranty
Weight
77 lb (.35 kg)
Measuring Capabilities
Leveling Accuracy
±1/8 in. at 30 ft (±0.35 mm/m)
Number of Points
5
Self-Leveling Range
±4°
Working Range
125 ft (38 m)
