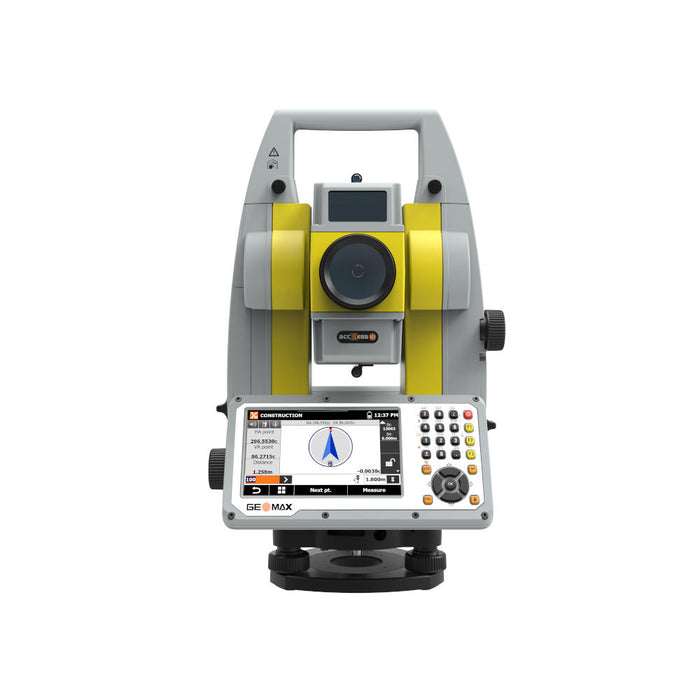

GeoMax Zoom75 Robotic Total Station (w/o 360° prism)

by Geomax

MFR#: 918648

USD $15,300^.00 - USD $20,800^.00

List Price: USD

USD $19,500^.00

USD $15,300^.00 - USD $20,800^.00

USD $19,500^.00

Store Pickup: List of available stores available on the Checkout page.

GeoMax Zoom75 Robotic Total Station (w/o 360° prism) - USD $15,300^.00

USD $15,300^.00

*Must Purchase 1 for GeoMax Zoom75 Robotic Total Station (w/o 360° prism)

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 6/6/2025

Documents

Item Brochure

Essential Add-Ons:

Universal Contractor's Tripod

Details

$54^.99

$95^.10

Aluminum Rod

Details

$38^.95

Fiberglass Rod

Details

$92^.25

Robotic Capability: Enables single-operator use with automatic prism tracking and high-speed motorization.
Choice of Reflectorless Tech: Select accXess5 (500m) or accXess10 (1000m) models based on project range needs.
Versatile Software Compatibility: Works with X-PAD Ultimate (Android/Windows), designed for CAD workflows and cloud connectivity.
High Measurement Precision:
- Angle accuracy options: 1", 2", 3", or 5"
- Distance (standard prism): up to 3500m with 1mm + 1.5ppm precision
- Reflectorless accuracy: 2mm + 2ppm (up to 1000m depending on version)
User Interface:
- 5” WVGA color touchscreen (800x480) with LED backlight
- Full alphanumeric keyboard (25 keys, optional second keyboard)
Motorization:
- GeoTRAil GNSS-based prism search
- AiM auto prism fine aiming (up to 1000m)
- TRack automatic prism tracking (up to 800m)
Data Management:
- 2 GB internal memory, supports USB stick and SD card
- Serial, USB, Bluetooth, WLAN, and long-range Bluetooth handle connectivity
Laser Plummet: Class 2 red dot with adjustable brightness (1.5mm accuracy at 1.5m)
Construction-Ready:
- IP55-rated housing for dust and water resistance
- Operating temperature: -22°F to 122°F
- Up to 8 hours battery runtime with removable Li-ion battery

Built for both newcomers and experienced users, the Zoom75 simplifies fieldwork while delivering high precision in angle and distance measurement.

With angular accuracies ranging from 1" to 5" and reflectorless range options of 500 or 1000 meters (depending on the model), it adapts to a variety of job site needs. Its 5" color touchscreen with LED backlight enhances visibility and usability in bright field conditions. The Zoom75 also integrates with GeoMax’s X-PAD Ultimate field software, which supports CAD files, cloud sync, and runs on Android or Windows-based controllers—offering a complete and intuitive field-to-office workflow.

The Zoom75 runs on a removable Li-ion battery with up to 8 hours of operation, and is housed in a weather-sealed IP55-rated body for durability. Additional technologies like AiM (automatic prism fine aiming), TRack (auto prism tracking), and GeoTRAil (GNSS-based search) streamline data capture, reduce errors, and enhance productivity—especially in single-operator workflows.

You can select between two reflectorless measurement technologies—accXess5 (up to 500m) and accXess10 (up to 1000m)—depending on your accuracy and range needs.

Robotic total station with fast prism tracking, automatic aiming, and digital data handling
Reflectorless range options: Choose between 500m (accXess5) or 1000m (accXess10)
5" color touchscreen with LED backlight for clear operation even in bright conditions
X-PAD Ultimate software compatibility supports full CAD integration and cloud sync
GeoTRAil, AiM, and TRack technologies for efficient and accurate one-person surveying
IP55 rating and rugged design withstand harsh environments and temperatures from -22°F to 122°F
8-hour removable Li-ion battery keeps you working longer in the field

What’s in the Box

(1) Zoom75 Total Station
Shipping Case
Quick Guide

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.
