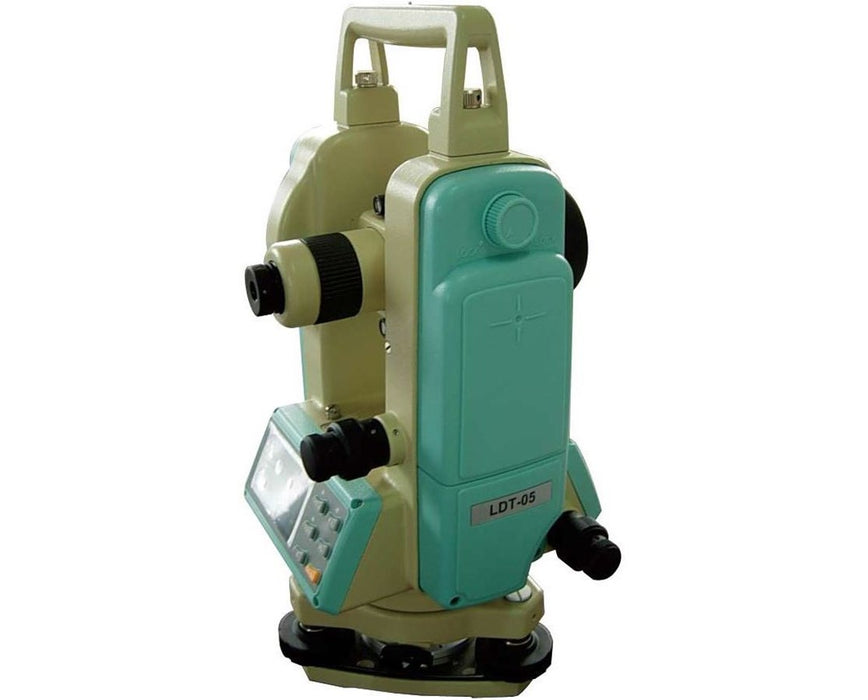

Leica Digital Electronic Theodolite LDT-05 - 6003830

Leica
by Leica
MFR#: 6003830
USD $1,495.00 - USD $1,495.00
List Price: USD
USD $1,495.00
USD $1,495.00 - USD $1,495.00
USD $1,495.00

Store Pickup: List of available stores available on the Checkout page.
Leica Digital Electronic Theodolite LDT-05 - 6003830
Leica Digital Electronic Theodolite LDT-05 - 6003830 - USD $1,495.00
USD $1,495.00
*Must Purchase 1 for Leica Digital Electronic Theodolite LDT-05 - 6003830

The cart will thereforce automatically set Qty to 1 when you order this product

One of our Sales Experts will be in touch!

Ghana
Free Shipping (USA) Ships Out Within: 4-6 Weeks Shipping Date By: 2/2/2025
Documents
Product Manual Item Brochure
Essential Add-Ons:
Universal Contractor's Tripod
Universal Contractor's Tripod
Details
$71.25
Aluminum Rod
Aluminum Rod
Details
$38.95
Fiberglass Rod
Fiberglass Rod
Details
$92.25
  • Angular accuracy of 5-sec
  • Magnification up to 30x
  • Wide aperture of 1.8”
  • Dual LCD display panels
  • Audible 90-deg beep for faster orientation
  • Automatic tilt warning

The Leica LDT-05 Digital Electronic Theodolite is a technologically advanced instrument for measuring angles and slope, offering excellent features at a great price. This theodolite offers a measuring angle of five-second accuracy and a three-second telescope resolving power. With a 30x magnification, it is ideal for mapping applications, determining elevation differences, setting out curves and similar jobs.

The Leica LDT-05 includes an automatic vertical compensation that ensures that accuracy is maintained if instrument shifts out of balance. It features a visible laser plummet that makes setting over a point faster than optical plummets. Also, it has an objective aperture of 1.8 inches. In addition, this instrument has a vertical angle measuring that includes percent of grade options.

With an option of rechargeable or alkaline batteries, it can run up to 36 hours without a laser. This survey tool has precision dual LCD panels with large, easy-to-read numbers. This economical and affordable theodolite features an audible 90-degree “beep” which emits an audible tone for each of the four right-angle directions for faster orientation.

  • 5-second angular accuracy
  • Telescope resolving power of 3 seconds
  • Magnification of 30x
  • Automatic vertical compensation
  • Visible laser plummet
  • Objective aperture of 1.8 inches
  • Vertical angle measuring
  • Option of rechargeable or alkaline batteries
  • Battery life up to 36 hours without a laser
  • Precision dual LCD panels
  • Large, easy-to-read numbers
  • Economical and affordable
  • Audible 90-degree "beep"
  • Dust proof and water resistant (IP54)

What’s in the Box

  • Leica LDT-05 Digital Electronic Theodolite
  • Plumb bob
  • Toolkit with screwdriver and 2 needles
  • 2 x drying agent bag
  • Rain cover
  • Carrying case
  • NiMH rechargeable battery pack
  • Battery charger
  • AA Alkaline battery holder
  • User manual
  • 1-Year warranty

1-year manufacturer’s warranty.

Leica Geosystems products are special order only.

We do not accept returns or cancellations for special ordered items.

Angle Measurement
Accuracy
5 second
Detection Method
Horizontal both sides, vertical single side
Display
Dual back-lit LCD
Measuring Method/Reading System
Incremental photoelectricity
Minimum Reading
1 second, 5 second, or 10 second
Unit of Reading/Measure
Degree / mil / gon / V%
Applications
90-Degree Layout
Yes
Alignment and Plumb
Yes
Anchor Bolt Positioning
Yes
Basic Grade Work
Yes
Checking Angles
Yes
General Construction
Yes
Setting Elevations
Yes
Setting Lines
Yes
Short-Range Leveling
Yes
Steel Column Placement
Yes
Battery/Power
Battery Life
Up to 36 hours (Alkaline)
Battery Life Alert
Visible alert
Power Source
NiMH rechargeable or 4 x AA alkaline batteries
Voltage
4.8V
Display and Keypad
Backlight
Yes
Keys
Six-button keypad
Sides
Dual
Touchscreen
No
Type
LCD
General
Auto Shut Off
After 30 minutes
Dimensions
13.4" L x 6.4" W x 6.1" H (340 mm x 164 mm x 154 mm)
Protection Class
IP54 dustproof and water spray resistant
Tribrach
Detachable
Tripod Thread
5/8 x 11
Warranty
1-year
Weight
10.14 lbs (4.6 kg)
Laser Plummet
Accuracy
1.5 mm
Wavelength
1 mW
Level
Circular Bubble Vial
8 minute / 2 mm
Plate/Tubular Bubble Vial
30 second / 2 mm
Telescope
Diameter of Objective Lens (Aperture)
1.7 in (45 mm)
Field of View
1°30'
Focus Distance
4.43 ft (1.35 m) to infinity
Erect
Magnification
30x
Quick Sites (Rough Sites)
Yes
Ratio of Stadia Lines
1/100
Resolving Power
3 seconds
Reticule Illumination
Yes, on/off button
Temperature
Operating
-4 to 122 °F (-20 to 50 °C)
Tilt Sensor/Compensator
Method
Automatic
Range
±3 minutes
Type
Verticle-axis
