DeWalt DWHT83192 6" Large Trigger Clamp

SKU DWHT83192

USD $15^.75 - USD $15^.75

List Price: USD

USD $15^.75

USD $15^.75 - USD $15^.75

USD $15^.75

Store Pickup: List of available stores available on the Checkout page.

DeWalt DWHT83192 6" Large Trigger Clamp - USD $15^.75

USD $15^.75

*Must Purchase 1 for DeWalt DWHT83192 6" Large Trigger Clamp

The cart will thereforce automatically set Qty to 1 when you order this product

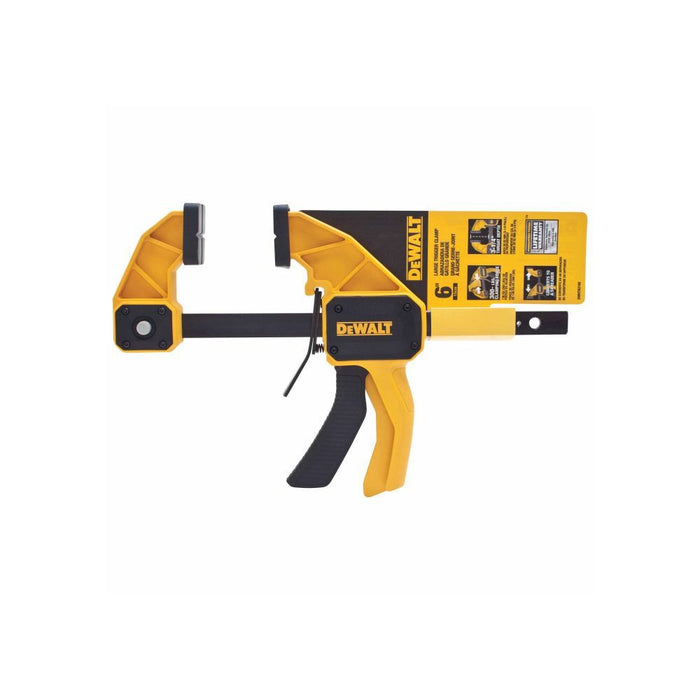

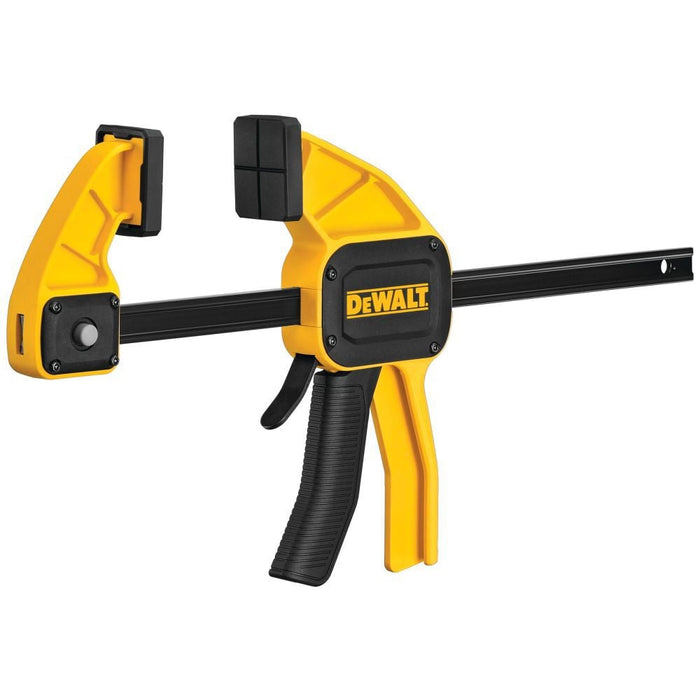

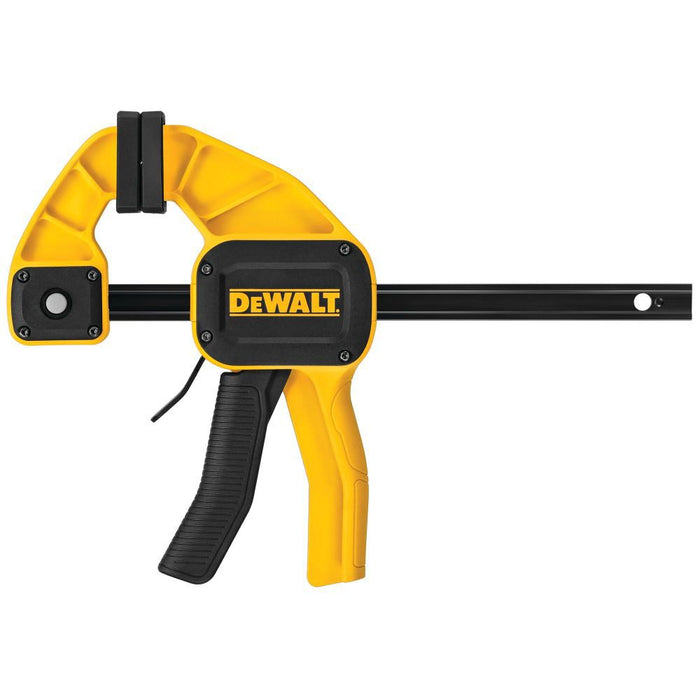

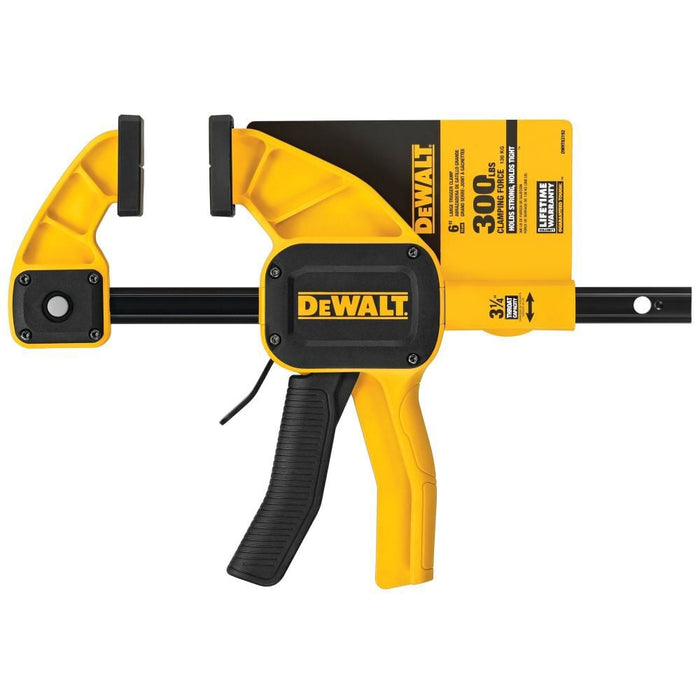

DeWalt DWHT83192 6" Large Trigger Clamp

This large clamp is versatile and easy to use. Its reinforced nylon body and heat-treated steel bar are strong and durable. With 300-pounds of clamping force, 3-1/4 in. throat depth, quick change button for easy conversion to a spreader, and removable jaw pads to help reduce marring, this clamp was built to exceed the expectations of professional contractors.

Applications

General Contractors
Cabinet Makers
Cabinet Installers
Carpenters

Specifications

Average Clamping Force [Kg]	135
Bar Length [mm]	150
Bar Material	Black Oxide Carbon Steel I-Beam
Bar Thickness [mm]	5
Body Material	Plastic
Clamping Capacity [mm]	165
Clamping Force [Kg]	135
Clamping Force [lbs]	300
Clamps and Vices Product Type	Trigger Clamp / One Handed Bar Clamp
Handle Material	Plastic
Has Quick Release Mechanism?	Yes
Has Safety Stop?	Yes
Jaw Depth [mm]	50
Jaw Pads Material	Non-Marring
Jaw Pad Type	Fix
Jaw Width [mm]	40
Max. Clamping Force [Kg]	135
Max. Jaw Opening [mm]	165
Packaging	Hang Tag
Pad Dimensions l x w x h [in]	50mm x40mm x9mm
Product Dimensions with Packaging l x w x h [in]	340mm x 250mm x 40mm
Product Dimensions w/o Packaging l x w x h [in]	340mm x 250mm x 40mm
Product Height [mm]	40
Product Length [mm]	340
Product Weight [g]	600
Product Weight [Kg]	0.6
Product Width [mm]	250
Spreading Capacity [mm]	330
Spreading Function	Yes
Sustained Clamping Force [Kg]	135
Throat Depth [in]	3-1/4
Throat Depth [mm]	80

Additional Features

One-handed operation for ease of use

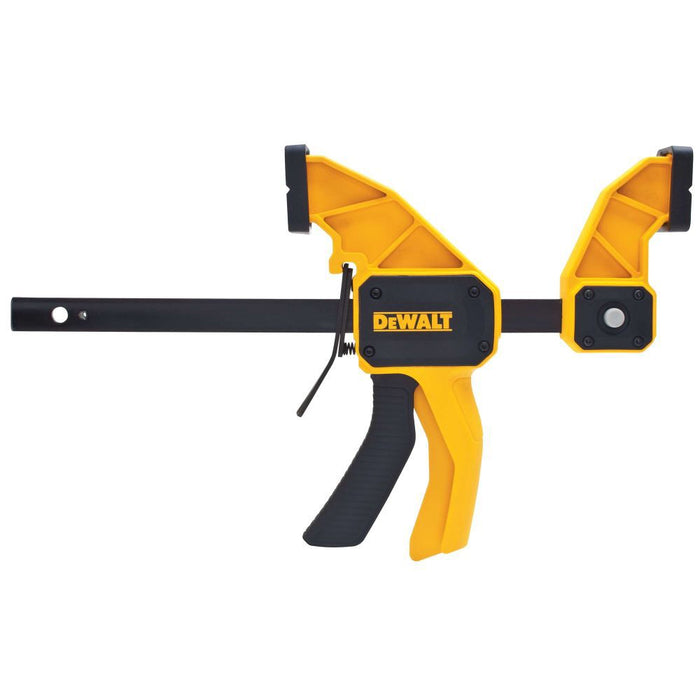

Quick change button allows for easy conversion to a spreader
Removable jaw pads help reduce marring

Includes

Clamp

Warranty Information

1 Year Limited Warranty

We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
