DeWalt DWHT83191 Small Trigger Clamp

SKU DWHT83191

USD $4^.85 - USD $4^.85

List Price: USD

USD $4^.85

USD $4^.85 - USD $4^.85

USD $4^.85

Store Pickup: List of available stores available on the Checkout page.

DeWalt DWHT83191 Small Trigger Clamp - USD $4^.85

USD $4^.85

*Must Purchase 1 for DeWalt DWHT83191 Small Trigger Clamp

The cart will thereforce automatically set Qty to 1 when you order this product

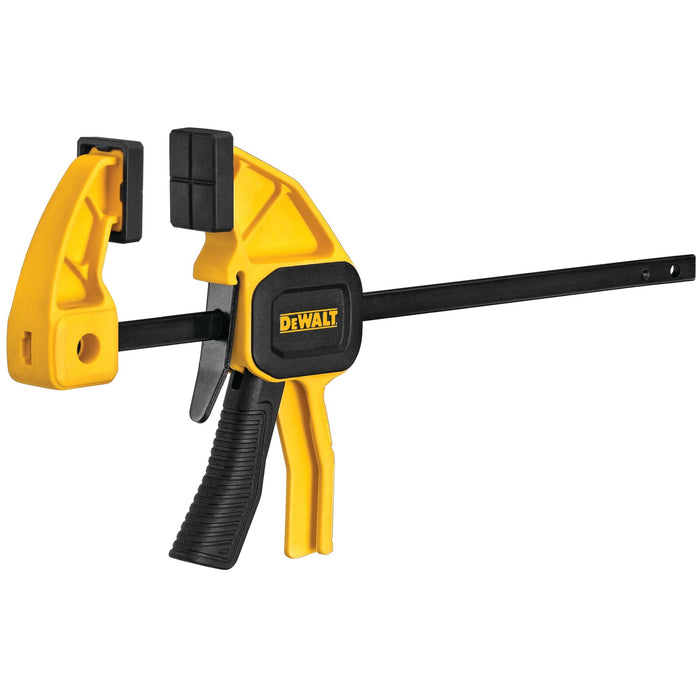

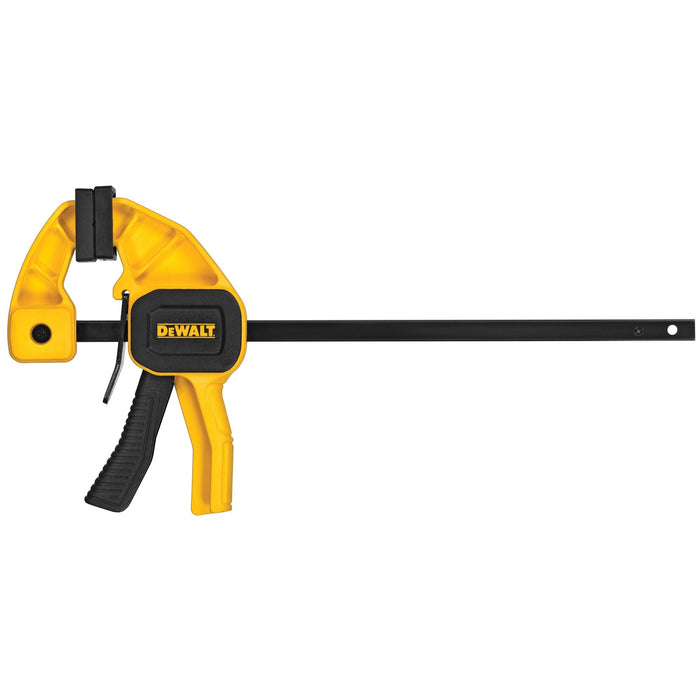

DeWalt DWHT83191 Small Trigger Clamp

The 4-1/2 inch small bar clamp is versatile and easy to use. Its reinforced nylon body and heat-treated steel bar are strong and durable. With 35-pounds of clamping force, 1-1/2" throat depth, quick change button for easy conversion to a spreader and removable jaw pads to help reduce marring, this clamp was built to exceed the expectations of professional contractors.

Applications

General Contractors
Cabinet Makers
Cabinet Installers
Carpenters

Specifications

Average Clamping Force [Kg]	15
Bar Length [mm]	110
Bar Material	Black Oxide Carbon Steel I-Beam
Bar Thickness [mm]	2
Body Material	Plastic
Clamping Capacity [mm]	120
Clamping Force [Kg]	15
Clamping Force [lbs]	35
Clamps and Vices Product Type	Trigger Clamp / One Handed Bar Clamp
Handle Material	Plastic
Has Quick Release Mechanism?	Yes
Has Safety Stop?	Yes
Jaw Depth [mm]	20
Jaw Pads Material	Non-Marring
Jaw Pad Type	Fix
Jaw Width [mm]	15
Max. Clamping Force [Kg]	15
Max. Jaw Opening [mm]	120
Packaging	Hang Tag
Pad Dimensions l x w x h [in]	20mm x 15mm x5mm
Product Dimensions with Packaging l x w x h [in]	205mm x 100mm x20mm
Product Dimensions w/o Packaging l x w x h [in]	205mm x 100mm x20mm
Product Height [mm]	20
Product Length [mm]	205
Product Weight [g]	54.43
Product Weight [Kg]	0.05443
Product Width [mm]	100
Spreading Capacity [mm]	90
Spreading Function	Yes
Sustained Clamping Force [Kg]	15
Throat Depth [in]	1-1/2
Throat Depth [mm]	40

Additional Features

One-handed operation for ease of use
Quick change button allows for easy conversion to a spreader
Removable jaw pads help reduce marring

Includes

Clamp

Warranty Information

1 Year Limited Warranty

We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
