DeWalt DWHT83185 12" Extra Large Trigger Clamp

SKU DWHT83185

USD $26^.81 - USD $26^.81

List Price: USD

USD $26^.81

USD $26^.81 - USD $26^.81

USD $26^.81

Store Pickup: List of available stores available on the Checkout page.

DeWalt DWHT83185 12" Extra Large Trigger Clamp - USD $26^.81

USD $26^.81

*Must Purchase 1 for DeWalt DWHT83185 12" Extra Large Trigger Clamp

The cart will thereforce automatically set Qty to 1 when you order this product

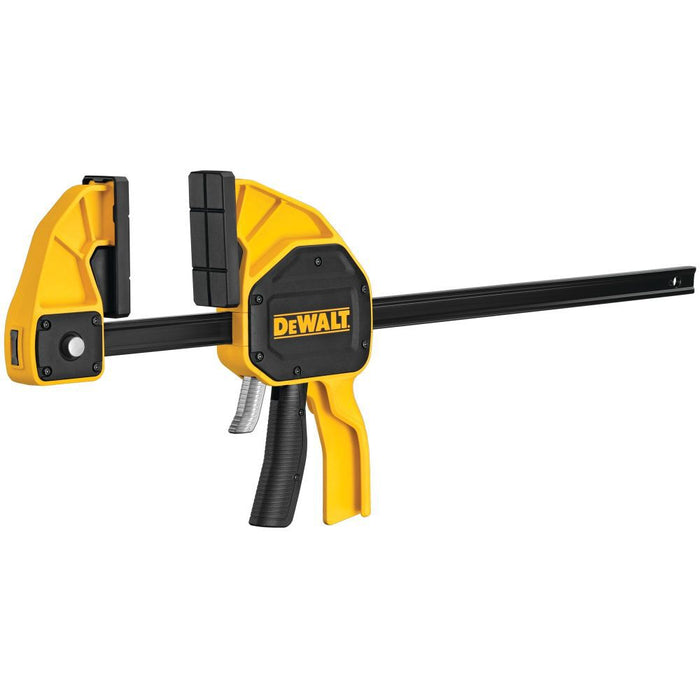

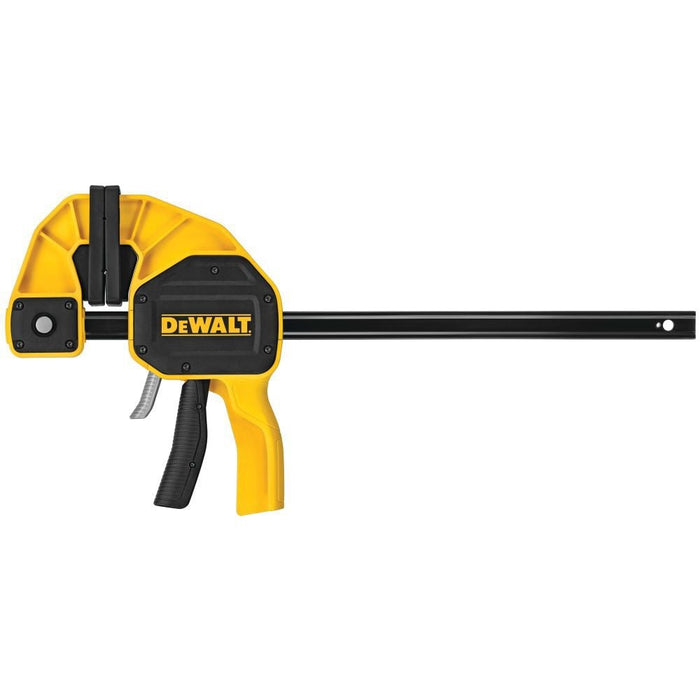

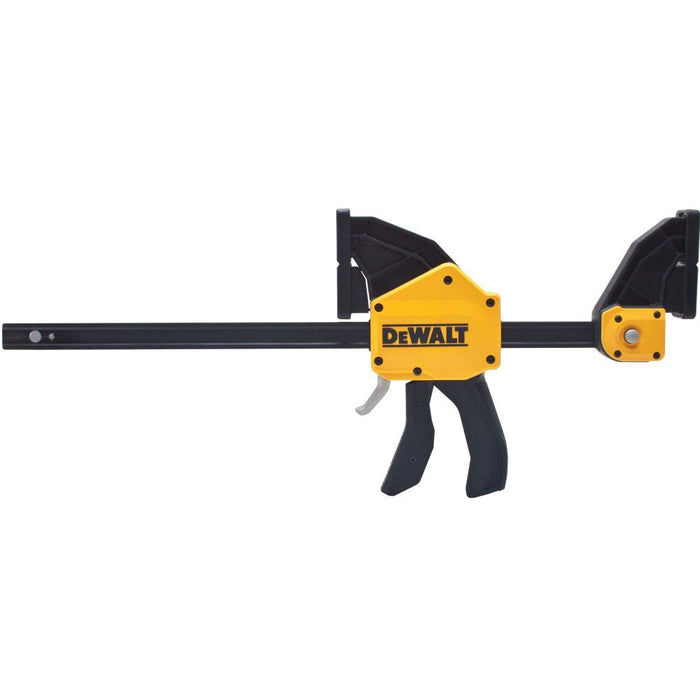

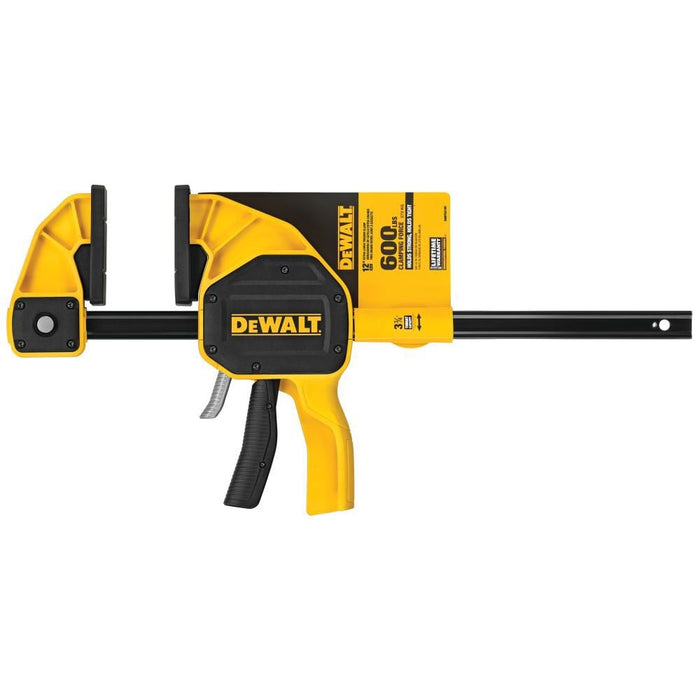

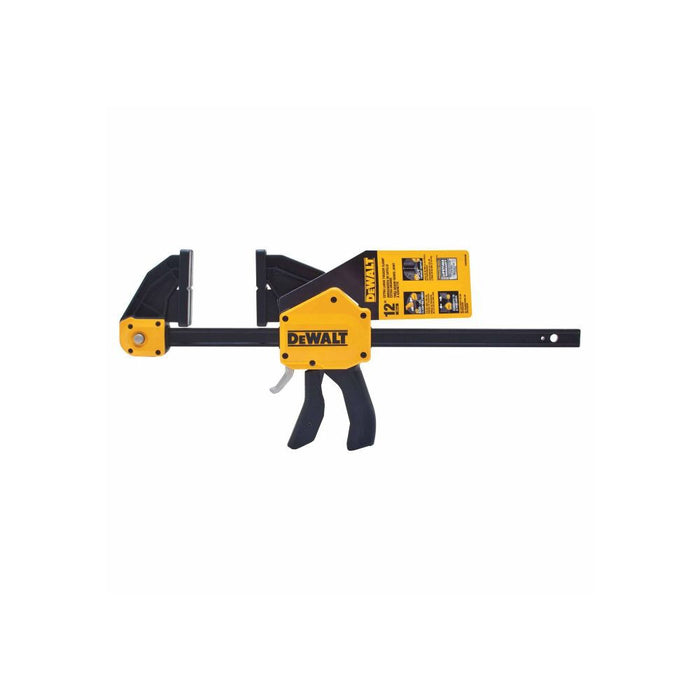

DeWalt DWHT83185 12" Extra Large Trigger Clamp

The 12-inch extra large bar clamp is versatile and easy to use. Its reinforced nylon body and heat-treated steel bar are strong and durable. With 600-pounds of clamping force, 3-3/4" throat depth, quick change button for easy conversion to a spreader and removable jaw pads to help reduce marring, this clamp was built to exceed the expectations of professional contractors.

Applications

General Contractors
Cabinet Makers
Cabinet Installers
Carpenters

Specifications

Average Clamping Force [Kg]	270
Bar Length [mm]	300
Bar Material	Black Oxide Carbon Steel I-Beam
Bar Thickness [mm]	7
Body Material	Plastic
Clamping Capacity [mm]	325
Clamping Force [Kg]	270
Clamping Force [lbs]	600
Clamps and Vices Product Type	Trigger Clamp / One Handed Bar Clamp
Handle Material	Plastic
Has Quick Release Mechanism?	Yes
Has Safety Stop?	Yes
Jaw Depth [mm]	90
Jaw Pads Material	Non-Marring
Jaw Pad Type	Fix
Jaw Width [mm]	40
Max. Clamping Force [Kg]	270
Max. Jaw Opening [mm]	325
Packaging	Hang Tag
Pad Dimensions l x w x h [in]	90mm x 40mm x10mm
Product Dimensions with Packaging l x w x h [in]	530x280x40
Product Dimensions w/o Packaging l x w x h [in]	530x280x40
Product Height [mm]	40
Product Length [mm]	530
Product Weight [g]	1300
Product Weight [Kg]	1.3
Product Width [mm]	280
Spreading Capacity [mm]	515
Spreading Function	Yes
Sustained Clamping Force [Kg]	270
Throat Depth [in]	3-3/4
Throat Depth [mm]	95

Additional Features

One-handed operation for ease of use
Quick change button allows for easy conversion to a spreader
Full face removable jaw pads help prevent marring

Includes

Clamp

Warranty Information

1 Year Limited Warranty

We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
