DD100 Utility Cable Locator

by Leica
MFR#: 872939
TIGER#: TS14094
Original price $1,420.00 - Original price $1,420.00
Original price List Price:
$1,420.00
$1,420.00 - $1,420.00
Current price $1,420.00
DD100 Utility Cable Locator
DD100 Utility Cable Locator - $1,420.00
$1,420.00
*Must Purchase 1 for DD100 Utility Cable Locator

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 7 - 10 Business Days Shipping Date By: 6/27/2024

One of our Sales Experts will be in touch!

  • Detects live underground cables & copper pipes
  • Detects up to 10 feet depth
  • Frequency modes: 4 operating
  • Automatic Pinpointing
  • Hazard function
  • LCD display with built-in sensor
  • IP54 dustproof and water resistant
  • Battery life up to 15 hours

Reliable and precise, the Leica DD100 Series Utility Cable Locator with depth indicator is the best solution for accurately detecting live electrical cables and copper pipes underground. It is ideal for excavation and repair contractors, builders, gas and electric companies, cable tv companies, utility installation, and more. This service locator is able to detect underground installations up to ten feet deep.

For precise detection, the DD100 Series offers up to four operating frequency modes that can track and locate power or radio signals depending on the selected mode. It features an Automatic Pinpointing that provides optimum sensitivity when detecting underground utilities. For additional safety, the DD100 comes with a Hazard Zone function that gives an extra warning to close proximity of buried services and alerts the contractor to any immediate danger.

With an IP54 rating, the Leica utility locator is dustproof and water resistant. It uses six AA alkaline batteries that power the device for up to 15 hours with intermittent use. Also, this underground utility detector features a highly visible LCD display with a built-in light sensor that is an important feature in dark conditions.

Configuration Options

The Leica DD100 Series Utility Cable Locator offers eight packages with varying bundles for your needs. Please select from the drop-down menu above.

  • 6014158: Leica DD120 Plumbers Package (50Hz)
  • 6014154: Leica DD120 Plumbers Package (50Hz)

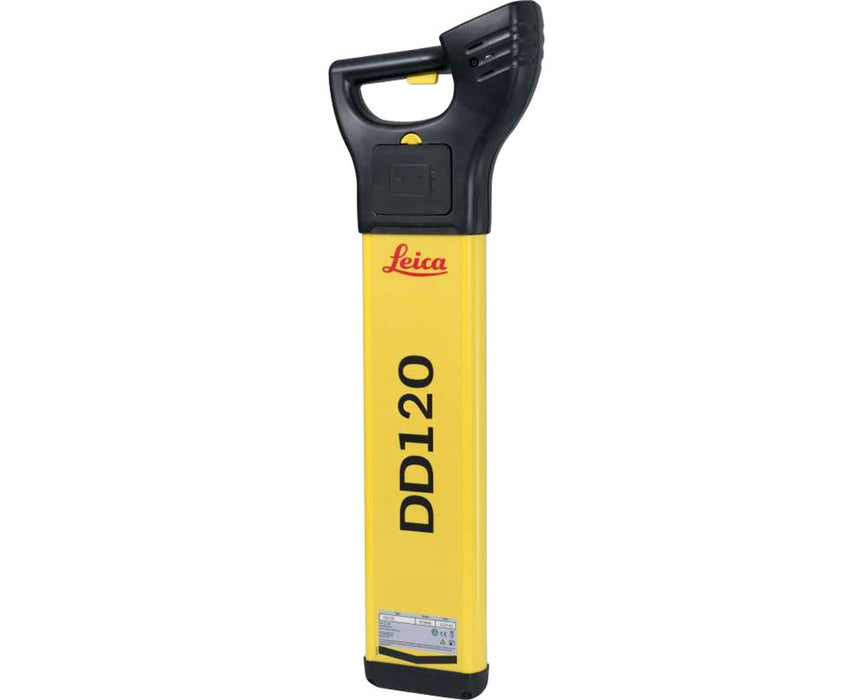

  • 872939: Leica DD120 Locator Basic Package (60Hz)
  • 6014159: Leica DD120 Plumbers Package (60Hz)
  • 6014155: Leica DD120 Depth Package (60Hz)
  • 6014156: Leica DD130 Depth Package (50Hz)

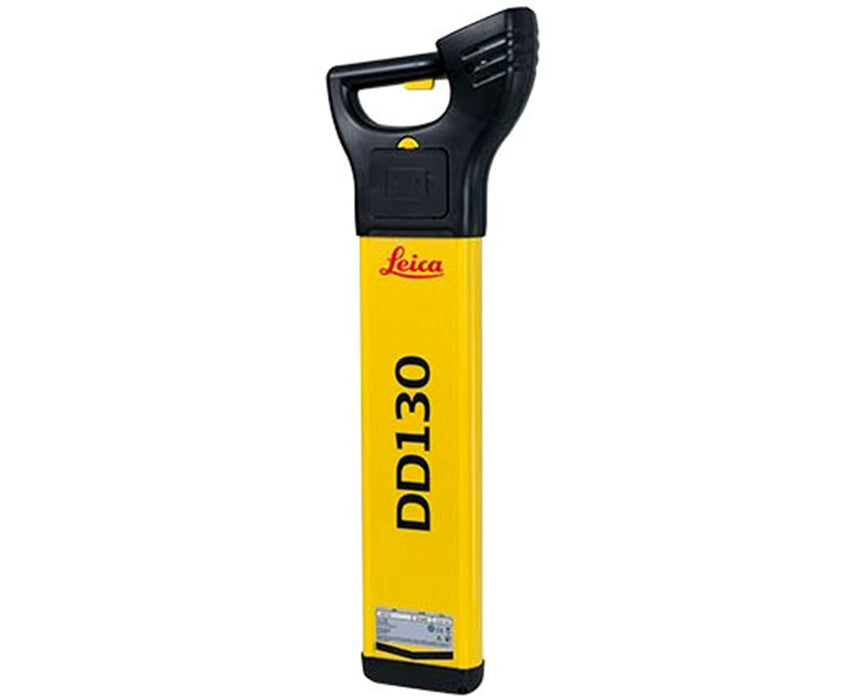

  • 872941: Leica DD130 Basic Package (60Hz)
  • 6014157: Leica DD130 Depth Package (60Hz)


Model #


DD120


DD130


Transmitter Modes


8 kHz, 33 kHz


8 kHz, 33 kHz, 512 Hz, 640 Hz


Depth Range


Line: 1' to 10'
Sonde: 1' to 10'


Line: 1' to 10'
Sonde: 1' to 32.77'


Power


50Hz or 60Hz


50Hz or 60Hz


Radio


15 kHz to 60 kHz


15 kHz to 60 kHz


Auto


Power, Radio


Power, Radio


Depth Accuracy


10%


10%


Operating Temperature


-4 °F to +122 °F (-20 °C to +50 °C)


-4 °F to +122 °F (-20 °C to +50 °C)


Storage Temperature


-40°F to +158°F (-40°C to +70°C)


-40°F to +158°F (-40°C to +70°C)


Battery


6 x LR6 AA Alkaline


6 x LR6 AA Alkaline


Battery Life


Up to 15 hours


Up to 15 hours


Dimensions


30" L x 10" W x 3.4" H


30" L x 10" W x 3.4" H


Weight


6 lbs (2.7 Kg)


6 lbs (2.7 Kg)


What's Included


DD120 Plumbers Package (50Hz)

  • Leica DD120 Utility Locator
  • Midi Sonde
  • Locator bag w/ alkaline batteries and manuals

DD120 (50Hz) Depth Package

  • Leica DD120 Locator (50Hz)
  • DA220 1 Watt Signal Transmitter
  • Locator bag w/ alkaline batteries and manuals

DD120 (60Hz) Basic Package

  • Leica DD120 Utility Locator (60Hz)
  • Alkaline Batteries

DD120 (60Hz) Depth Package

  • Leica DD120 Utility Locator (60Hz)
  • DA220 1 Watt Signal Transmitter
  • Extension Cable
  • Locator bag w/ alkaline batteries and manuals

DD120 (60Hz) Plumbers Package

  • Leica DD120 Locator (60Hz)
  • Midi Sonde
  • Locator bag w/ alkaline batteries and manuals


DD130 (60Hz) Basic Package

  • Leica DD130 Utility Locator
  • Alkaline Batteries

DD130 (50Hz) Depth Package

  • Leica DD130 Locator (50Hz)
  • DA220 1 Watt Signal Transmitter
  • Locator bag w/ alkaline batteries and manuals

DD130 (60Hz) Depth Package

  • Leica DD130 Utility Locator (60Hz)
  • DA220 1-Watt Signal Transmitter
  • Extension Cable
  • Locator bag w/ alkaline batteries and manuals

This product replaces the recently discontinued Digicat 550i and 550i xf

  • Choice of 8 packages
  • Accurately detects live cables and copper pipes underground
  • Detects up to 10' deep
  • 4 operating frequency modes
  • Automatic Pinpointing
  • Hazard function
  • IP54 dustproof and water resistant
  • AA alkaline batteries, 6 pcs
  • Up to 15 hours battery life
  • Highly visible LCD display with built-in sensor
  • Reliable and precise

What’s in the Box

  • Leica DD100 Series Utility Cable Locator
  • User manual
  • 1-year manufacturer's warranty

Refer to overview for the full list of accessories

Leica Geosystems products are special order only.

We do not accept returns or cancellations for special ordered items.

Applications
Cable Location
Yes
Drain Location
Yes
Pipe Location
Yes
Battery/Power
Battery Life
Up to 15 hours
Low Battery Alert
Yes
Power Source
6 x AA alkaline
Features
Audio Alert
Yes
Display
LCD with backlight
Security
Owner ID
Visual Alert
Yes
Frequency
Auto Mode
Power + Radio mode
Power Mode
50 Hz or 60 Hz
Radio Mode
15 kHz to 60 kHz
Transmitter Mode
8 kHz and 33 kHz
General
Depth Detection
Power to 3m, Radio to 2m, Transmitter mode dependant on signal transmitter or sonde
Operating Temperature
-4 to 122 °F (-20 to 50 °C)
Protection Class
IP54 dustproof and water spray resistant
Sensitivity
Automatic
Warranty
1-year
Weight
6 lbs (2.7 kg)
Wireless Capability
Bluetooth
Optional
