Bosch GRL4000-90CHVG Rotary Laser w/LR40G Receiver, Tripod & 13ft Grade Rod

by Bosch

SKU GRL4000-90CHVGK

List Price: USD $4,485^.87

You Save: USD $1,526^.45

USD $4,485^.87 - USD $4,485^.87

List Price: USD $4,485^.87

USD $2,959^.42

USD $2,959^.42 - USD $2,959^.42

USD $2,959^.42

Store Pickup: List of available stores available on the Checkout page.

Model No.: GRL4000-90CHVGK

Bosch GRL4000-90CHVG Rotary Laser w/LR40G Receiver, Tripod & 13ft Grade Rod - USD $2,959^.42

USD $2,959^.42

*Must Purchase 1 for Bosch GRL4000-90CHVG Rotary Laser w/LR40G Receiver, Tripod & 13ft Grade Rod

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 5 - 7 Business Days Shipping Date By: 7/17/2026

Laser Beam Color: Green
Laser Diode: Class 2, 500-540 nm
Working Range: Up to 4,000 ft. with laser receiver
Accuracy, Horizontal Mode: Up to ±1/16" at 100 ft.
Accuracy, Vertical Mode: Up to ±1/8" at 100 ft.
Leveling Type: Self-leveling, up to 5°
Slope Function: Dual Dial-In Slope on X- and Y-axes
Vertical Beam: Provides a 90° point for layout, squaring, and plumb applications
Electronic Self-Leveling: Yes
Disturbance Monitor: Indicates if tool position changes
Variable Speed: Yes
Scan-Angle Selection: Yes
Connected: Yes
Connectivity: Bluetooth® connectivity with Bosch Leveling Remote App
App Controls: On/off, sleep mode, Dual Dial-In Slope, and more
User Calibration: uCAL user-calibration guidance
IP Rating: IP68
Power Source: Bosch CORE18V® lithium-ion battery or alkaline battery adapter with four D-cell batteries
Battery: Lithium-ion battery
Compatible Batteries: Bosch CORE18V® 4 Ah and 8 Ah batteries
Mount Threading: 5/8-11
Operating Temperature: 14°F to 122°F (-10°C to 50°C)
Material: Plastic composite
Durability Features: Cage rubber overmold and durable handle design
Height: 11"
Length: 12.8"
Width: 7.4"
Works With: Bosch LR40G receiver, compatible tripods, grade rods, Bosch 18V batteries, Bosch 18V chargers, and compatible mounts and positioning devices
Application: Outdoor leveling, indoor leveling, grading, slope layout, long-range layout, concrete work, construction layout, vertical alignment, façade installation, squaring, and plumb applications

The Bosch 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser Kit is designed for precise indoor and outdoor leveling, grading, layout, squaring, and plumb applications. With a working range of up to 4,000 ft. when used with a laser receiver, this green-beam rotary laser supports long-range jobsite layout while delivering accuracy up to ±1/16" at 100 ft. in horizontal mode and ±1/8" at 100 ft. in vertical mode.

Dual Dial-In Slope allows slope angle adjustment on both the X- and Y-axes for grading applications. Bluetooth® connectivity links the laser to the Bosch Leveling Remote App, giving users control of functions such as on/off, Dual Dial-In Slope, sleep mode, and more from a compatible mobile device. The uCAL user-calibration feature guides users step by step to confirm tool status or calibrate the laser on the jobsite. Built for tough conditions, the rotary laser features IP68 dust and water protection, cage rubber overmold, and a durable handle design. The kit includes a remote control, 18V 4 Ah battery, charger, alkaline battery adapter, wall mount, laser receiver, aluminum tripod, grade rod, and hard carrying case.

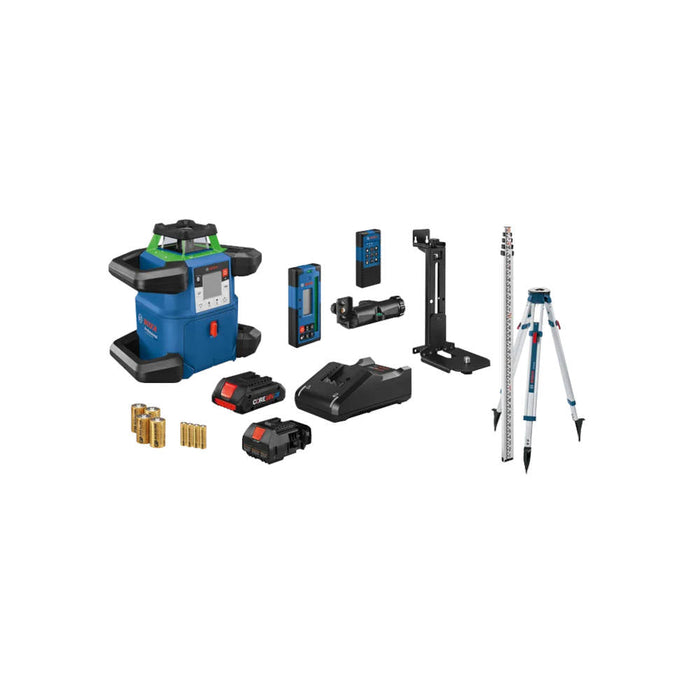

What’s in the Box

(1)x GRL4000-90CHVG 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser
(1)x LR40G Laser Receiver with Bracket
(1)x GBA18V40 18V CORE18V® Lithium-Ion 4 Ah Advanced Power Battery
(1)x 18V Battery Charger
(1)x BA1 Alkaline Battery Adapter
(4)x D Batteries
(4)x AA Batteries
(1)x BT170 Heavy-Duty Aluminum Tripod
(1)x GR13 13 Ft. Grade Rod
(1)x WM6 Wall Mount
(1)x RC5 Remote Control
(1)x Carrying Case

1-Year Manufacturer Warranty
