Model No.: GLL330-80CGN

Bosch GLL330-80CGN 360⁰ Green-Beam Three-Plane Leveling and Alignment Laser - USD $665^.56

USD $665^.56

*Must Purchase 1 for Bosch GLL330-80CGN 360⁰ Green-Beam Three-Plane Leveling and Alignment Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 5 - 7 Business Days Shipping Date By: 7/17/2026

Laser Beam Color: Green
Laser Diode: Class 2, <10 mW at 500-540 nm
Laser Planes: Three 360° laser planes
Laser Line Layout: One horizontal 360° line and two vertical 360° lines
Working Range Without Receiver: Up to 115 ft.
Working Range With Receiver: Up to 400 ft. with compatible receiver, sold separately
Accuracy: ±1/8" at 30 ft.
Leveling Type: Self-leveling, up to 4°
Connected: Yes
Connectivity: Bluetooth® connectivity with Bosch Leveling Remote App
App Controls: Remote setup, power-saving mode, brightness adjustment, and related setup controls
VisiMax™ Technology: Monitors temperature and power consumption to maximize line visibility and extend battery life
Power-Saving Mode: Yes
Brightness Adjustment: Yes
Smart Pendulum System: Self-levels, indicates out-of-level condition, and locks when switched off
Receiver Compatible: Yes
IP Rating: IP65, tool only
Power Source: Bosch CORE18V® battery or four C-cell alkaline batteries
Compatible Batteries: Bosch CORE18V® 2.0 Ah or 4.0 Ah batteries
Battery Included: Varies by selected option
Available Options: With CORE18V® battery or alkaline battery configuration
Alkaline Batteries: Included with select option only, if applicable
Mount Threading: 1/4-20 and 5/8-11
Mount: Integrated magnetic laser mount
Adjustment: Fine adjustment with pivot rotation
Housing: Full rubber overmold housing with foam-reinforced interior
Base: Rubber grip base
Operating Temperature: 14°F to 104°F (-10°C to 40°C)
Material: Plastic composite
Height: 5.125"
Length: 19.875"
Width: 16.125"
Works With: Bosch LR8 laser receiver, compatible tripods, telescoping pole system, telescoping leveling rods, grade rods, mounts, and positioning devices
Application: Leveling, alignment, wall layout, ceiling layout, framing, tile installation, cabinetry, interior finishing, and 360° layout applications

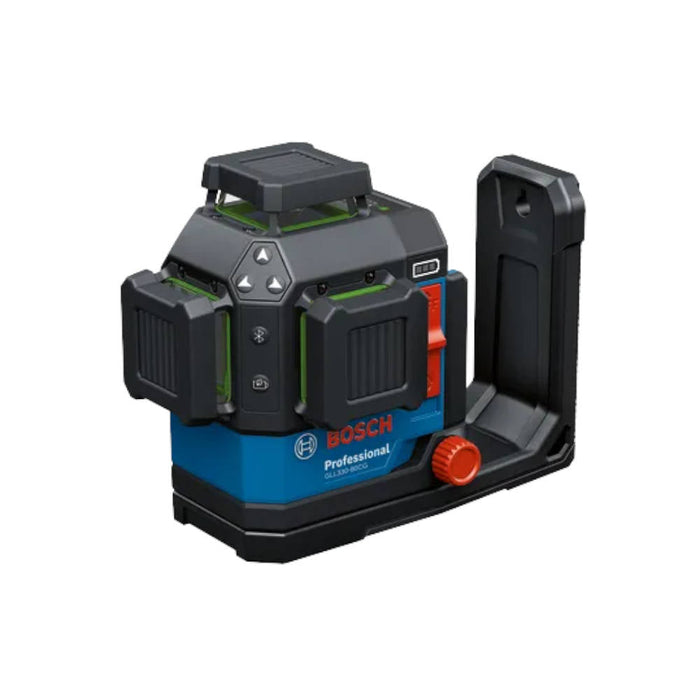

The Bosch 18V 360° Connected Green-Beam Three-Plane Leveling and Alignment Laser is designed for fast layout, leveling, and alignment from a single setup point. It projects three green 360° laser planes, one horizontal and two vertical, giving contractors and layout professionals a complete solution for wall layout, ceiling layout, framing, cabinetry, tile, and interior alignment work.

This connected laser offers power flexibility with CORE18V® battery compatibility and an option to use four C-cell alkaline batteries. Bluetooth® connectivity allows users to manage setup from a paired smartphone using the Bosch Leveling Remote App, including power-saving mode and brightness adjustment. Built-in VisiMax™ technology monitors temperature and power consumption to help maximize line visibility and battery life. The laser provides up to 115 ft. of working range without a receiver and up to 400 ft. with a compatible receiver, sold separately. It also includes a Smart Pendulum System, integrated magnetic laser mount with fine adjustment and pivot rotation, IP65-rated protection, full rubber overmold housing, rubber grip base, and 1/4-20 and 5/8-11 mounting threads.

What’s in the Box

GLL330-80CGL

(1)x GLL330-80CGL 18V 360º Connected Green-Beam Three-Plane Leveling and Alignment Laser
(1)x 18V 4.0 Ah Battery
(1)x 18V Battery Charger
(1)x BA18-C Alkaline Battery Adapter
(1)x DK20 Ceiling Clip
(1)x Laser Target Plate
(1)x Hard Carrying Case

GLL330-80CGN

(1)x GLL330-80CGN 18V 360º Connected Green-Beam Three-Plane Leveling and Alignment Laser
(1)x BA18-C Alkaline Battery Adapter
(1)x DK20 Ceiling Clip
(1)x Laser Target Plate
(1)x Hard Carrying Case

1-Year Manufacturer Warranty
