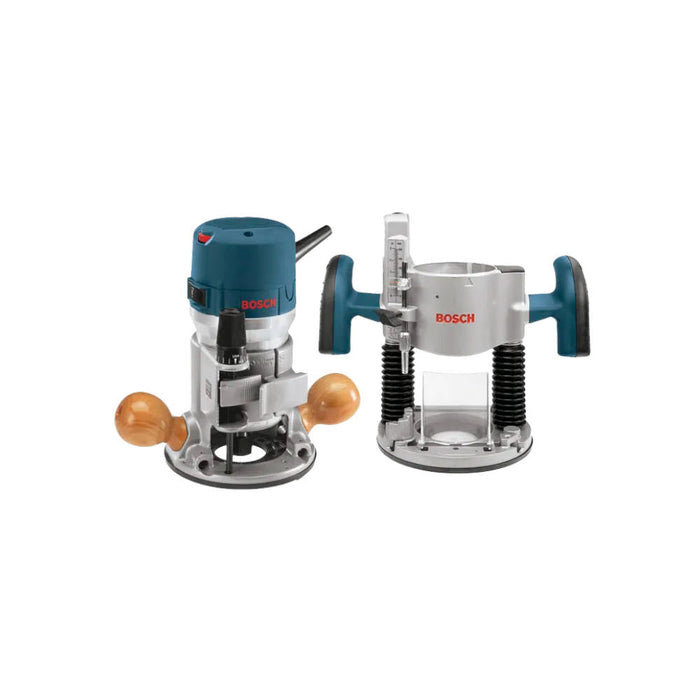

Bosch 2.25 HP Plunge and Fixed-Base Router Combo Kit | 1617EVSPK

by Bosch

SKU 1617EVSPK

List Price: USD $536^.42

You Save: USD $182^.53

USD $536^.42 - USD $536^.42

List Price: USD $536^.42

USD $353^.89

USD $353^.89 - USD $353^.89

USD $353^.89

Store Pickup: List of available stores available on the Checkout page.

Model No.: 1617EVSPK

Bosch 2.25 HP Plunge and Fixed-Base Router Combo Kit | 1617EVSPK - USD $353^.89

USD $353^.89

*Must Purchase 1 for Bosch 2.25 HP Plunge and Fixed-Base Router Combo Kit | 1617EVSPK

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 5 - 7 Business Days Shipping Date By: 7/17/2026

Motor Rating: 12 amps
Horsepower: 2.25 HP
Voltage: 120V
Rating: 120V AC
No-Load RPM: 8,000-25,000
Variable Speed: Yes
Speed Control: Variable-speed dial
Constant Response Circuitry: Helps stabilize startup torque and maintain speed under load
Included Bases: Plunge base and fixed base
Base Diameter: 6" fixed base / 6-11/16" plunge base
Fixed-Base Depth Range: 1-5/8"
Plunge Depth: 2-1/4"
Depth Adjustment: Microfine bit-depth adjustment
Router Table Adjustment: Fixed base supports bit-height adjustment from above a router table
Router Table Mounting: Threaded holes in common three-hole pattern
Collet Capacity: 1/4", 3/8", 1/2", 8 mm
Subbase Opening: 2"
Handles: Rounded hardwood handles
Power Switch: Dust-sealed power switch
Armature Shaft: One-piece armature shaft
Insulation: Double insulated
Dust Collection: No
Case Type: Hard plastic carrying case
Height: 11.625"
Length: 6"
Width: 11.5"
Weight: 10 lb.
Works With: Bosch router tables, router table base, offset bit-change wrench set, router guide, template guide systems, centering device, and dust collection attachments
Application: Edge forming, plunge routing, template routing, dovetail work, cabinetry, woodworking, router-table use, finish carpentry, and guided cuts

The Bosch 2.25 HP Combination Plunge- and Fixed-Base Router Kit is designed for woodworking, cabinetry, edge forming, template routing, dovetail work, and router-table applications. Its 12 amp motor delivers the power needed for clean cuts, while the variable-speed dial lets users adjust from 8,000 to 25,000 RPM to match the bit size, material, and application.

The kit includes both plunge and fixed bases, giving users flexibility for freehand routing, guided cuts, plunge cuts, and table-mounted work. Constant Response circuitry helps maintain speed under load and supports smoother startup, while microfine bit-depth adjustment allows precise setup. The fixed base includes threaded holes for common three-hole router table mounting and supports bit-height adjustment from above a router table. Rounded hardwood handles improve control, and the hard plastic carrying case keeps the router, bases, and accessories organized.

What’s in the Box

1/4" Self-Releasing Collet Chuck - 2 610 906 283
1/2" Self-Releasing Collet Chuck - 2 610 906 284
16mm Shaft Wrench - 2 610 991 388
24mm Collet Nut Wrench - 2 610 992 417
Carrying Case - 2 610 913 367
Fixed Base (RA1161)
Plunge Base (RA1166)
Fixed Base Chip Shield - 2 610 991 389
Plunge Base Chip Shield - 2 610 912 599
Motor
T-Handle Hex Height Adjustment Wrench - 2610923193
Pack of 3 10-24 Screws for Table Mounting - 2610925813
