High-performance Benchmark BM999 GNSS rover kit with IMU tilt and visual positioning
Includes dual cameras (front + downward) for real-time stakeout, video-based point capture, and 3D workflows
Full GNSS tracking with RTK accuracy: 8 mm + 1 ppm (H) / 15 mm + 1 ppm (V)
Built-in IMU supports ±60° tilt compensation—no need to level the pole
Dual-band UHF receiver: 410–470 MHz and 902.4–928 MHz (firmware activated)
Supports RTK via UHF or NTRIP network corrections with onboard LTE modem
Up to 10-hour battery life, with USB-C PD fast charging
Pre-loaded and fully licensed Cube-a v6.x survey software on S80 Android tablet
Up to 50 Hz positioning update rate for fast, fluid field workflows
Includes carbon fiber GPS pole, prism pole bipod, magnetic bracket, S80 tablet
Ideal for surveyors capturing hard-to-reach points, layout tasks and visual 3D data

The Benchmark BM999 Rover GNSS package is a smart, visual-ready surveying system that combines tilt compensation, visual stakeout, and photogrammetry tools into one compact and durable package. Built for surveyors who need flexibility, precision, and next-gen capability in the field, this rover kit arrives fully configured and ready to work.

At the heart of the system is the BM999 GNSS receiver, which supports all major satellite constellations (GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBAS) and delivers sub-centimeter RTK accuracy with an impressive 50 Hz update rate. With a built-in IMU sensor supporting ±60° tilt, users can quickly measure without leveling, saving time on rough or obstructed terrain.

What truly sets this rover apart are its dual cameras - a front-facing lens to guide stakeout visually, and a downward-facing camera for capturing precise ground shots or video. The camera system enables three powerful workflows:

Real-time visual stakeout via Cube-a
Image-based coordinate extraction from video in hard-to-reach areas
Photogrammetry-based 3D modeling, using software like Cube-3D, VScloud, or Cube-a v7

The BM999 supports RTK corrections over both UHF and cellular networks (NTRIP), with dual-band UHF firmware activated and a 4G LTE modem built in. Its USB-C PD fast charging and 13.6Ah internal battery provide up to 10 hours of continuous field operation.

Control is handled via the S80 Rugged Android Tablet, with Cube-a v6.x software pre-installed and fully licensed—no activation, no subscription. The software supports stakeout, DXF/CAD workflows, cloud sync, COGO tools, point projection, and more.

Rugged, powerful, and compact, the BM999 rover comes complete with a carbon fiber GPS pole, tripod, magnetic bracket, and controller—making this kit ideal for surveyors working solo or in crews who need accuracy, speed, and visual capability all in one.

Full Constellation Tracking: Supports GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, and SBAS for maximum satellite visibility and accuracy worldwide.
Visual Stakeout Made Easy: Dual cameras streamline navigation and alignment. Use the 2MP front camera (5 fps, 75° FOV) to approach points, and the 720p downward camera (30 fps) for precise on-the-ground capture.
Tilt Surveying: ±60° IMU-based tilt lets you collect accurate data without leveling the pole—great for terrain, ditches, or urban sites.
Sub-Centimeter RTK Precision: Horizontal: 8 mm + 1 ppm; Vertical: 15 mm + 1 ppm. Static survey accuracy: 2.5 mm + 0.1 ppm / 3.5 mm + 0.4 ppm.
Dual-Band UHF + LTE Support: Receive RTK corrections via UHF (410–470 MHz / 902.4–928 MHz) or cellular NTRIP. Nano SIM compatible for LTE/4G networks.
Preloaded and Fully Licensed Cube-a Software: Version 6.x comes pre-installed on the S80 tablet. Includes COGO, DXF, stakeout, point projection, GNSS monitoring, auto linework, and cloud sync—no activation or subscription required.
3D Modeling-Ready: Video exports compatible with Cube-3D, VScloud, or Cube-a v7 for point cloud and mesh model generation (advanced tools not included by default).
Rugged and Compact: Built for real-world field work: IP68 rating, drop-tested from 2 m, and operational from -40°F to 149°F.
Fast Refresh Rate: 50 Hz update rate provides smooth tracking for dynamic fieldwork.
All-Day Battery + Fast Charging: Integrated 13.6Ah battery supports up to 10 hours. Recharge quickly with USB-C PD fast charge.
Included Accessories: Comes with carbon fiber GPS pole, prism pole bipod, magnetic bracket, and pre-configured Android controller.

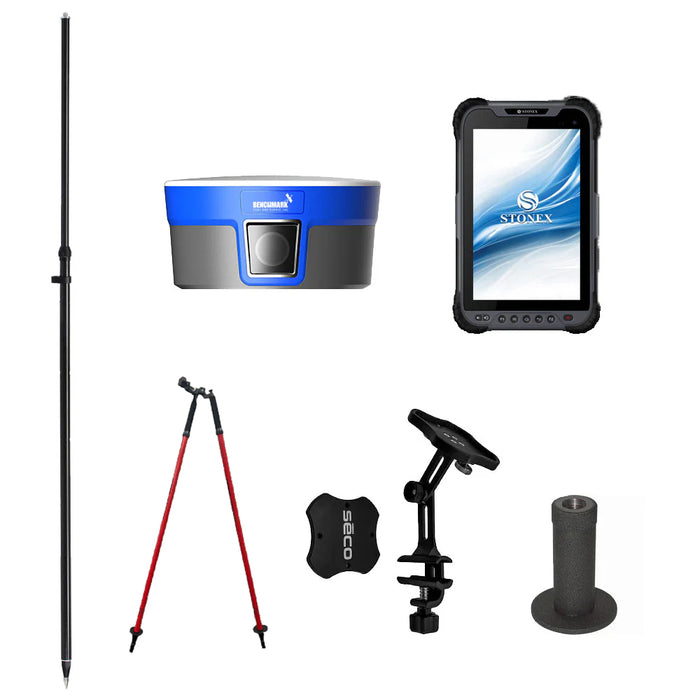

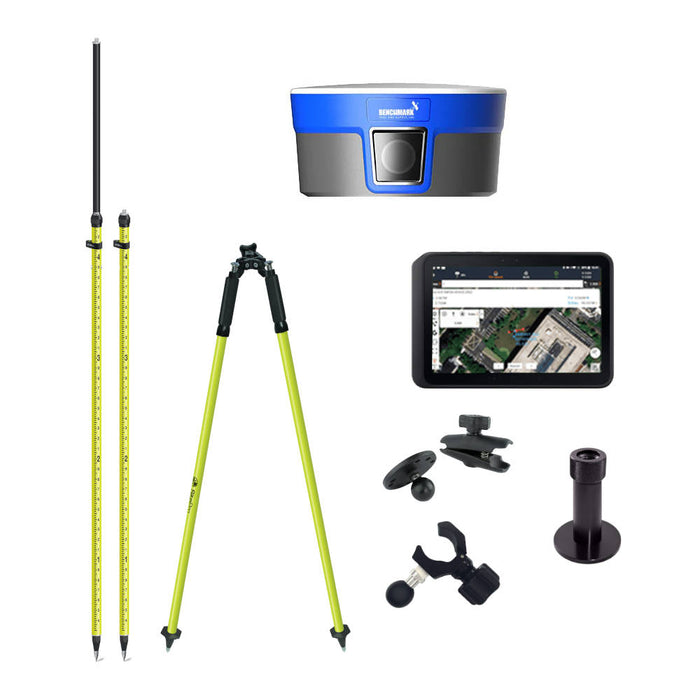

What’s in the Box

(1) BM999 GNSS Receiver
(1) BM999 UHF Dual firmware activation
(1) S80 Rugged Tablet
(1) C400 (small) MagPad Magnetic Pole Bracket, Short Arm
Cube-a GPS v6.x Data Collection Software
(1) Wide Base Topo Shoe
(1) 2M Carbon Fiber 2-Section GPS Pole w/ Snap Lock
(1) Aluminum Prism Pole Bipod - Red

2-year manufacturer’s warranty.
