Benchmark BM999 & BM980+ Base and Rover Surveying Package | BM999-980-BRSV

by Benchmark Tool & Supply

MFR#: BM999-980-BRSV

USD $16,279^.20 - USD $16,279^.20

List Price: USD

USD $16,279^.20

USD $16,279^.20 - USD $16,279^.20

USD $16,279^.20

Store Pickup: List of available stores available on the Checkout page.

Benchmark BM999 & BM980+ Base and Rover Surveying Package | BM999-980-BRSV - USD $16,279^.20

USD $16,279^.20

*Must Purchase 1 for Benchmark BM999 & BM980+ Base and Rover Surveying Package | BM999-980-BRSV

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Ships Out Within: 24 - 48 Hours Shipping Date By: 4/29/2025

Essential Add-Ons:

Training Per Hour - BM Office or Virtual Only

Details

$185^.00

BASE POLE 7' Tube Steel GPS Base Pole

Details

$97^.50

Mixed-model configuration: BM980+ as Base, BM999 as Rover—pre-configured for immediate deployment
BM980+ features a high-power 5-watt UHF radio, ideal for long-range correction broadcasts (up to 10 km)
BM999 offers dual cameras (front + downward) for visual stakeout and photogrammetry workflows
RTK accuracy (both): 8 mm + 1 ppm horizontal / 15 mm + 1 ppm vertical
IMU-based tilt compensation on both units: ±60° for efficient measurement in obstructed areas
BM999 includes dual-band UHF support (410–470 MHz & 902.4–928 MHz); firmware activated
Smart batteries: up to 15 hrs runtime (BM980+), 10 hrs (BM999); USB-C PD fast charging supported
Cube-a v6.x software pre-installed on S80 Rugged Android Tablet
LTE modem, Bluetooth, Wi-Fi, and USB on both receivers
Includes magnetic pole bracket, GPS pole and aluminum prism pole bipod

The Benchmark BM980+ Base and BM999 Rover GNSS survey package is a high-precision solution that combines powerful correction broadcast capabilities with advanced visual measurement tools. Designed for professionals tackling complex survey tasks, this package offers field-ready performance right out of the box.

The BM980+ GNSS receiver, serving as the base station, delivers full-constellation tracking with a built-in 5-watt UHF radio. It supports broadcast ranges up to 10 km and includes IMU tilt support and a smart battery system with LED indicators, offering up to 15 hours of continuous field operation.

On the rover side, the BM999 GNSS receiver delivers visual intelligence and accuracy. It includes both a front-facing and downward-facing camera, enabling surveyors to perform visual stakeout, record points via video, and generate 3D models and point clouds using software like Cube-a v7, Cube-3D, or VScloud. With RTK initialization under 5 seconds, ±60° IMU tilt support, and sub-centimeter performance in RTK and static modes, the BM999 boosts productivity.

The included S80 Rugged Tablet comes pre-configured with Cube-a v6.x software, offering complete field control—from COGO and stakeout to CAD layer management and DXF handling. Cloud connectivity and data sync ensure easy transfer between office and field.

With LTE modems, Bluetooth, Wi-Fi, and USB across both receivers, plus a full hardware kit (tripod, GPS poles, magnetic bracket), this system is ready to deploy immediately. Whether you're collecting inaccessible points, building 3D site models, or tackling advanced layout and boundary work, the BM980+/BM999 kit is a high-performance GNSS package engineered for visibility, versatility, and precision.

High-Output Base Station: BM980+ includes a 5W UHF radio (410–470 MHz) for reliable correction broadcasts up to 10 km in optimal conditions.
Photogrammetry-Enabled Rover: BM999's dual integrated cameras are ideal for visual stakeout, inaccessible point collection, and field-based point cloud capture.
3D Modeling Support: Capture video and generate 3D mesh and point cloud models using Cube-a v7, Cube-3D, or VScloud.
Full GNSS Support: Tracks GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, and SBAS. PPP and HAS support included.
Tilt Compensation on Both Units: IMU-based tilt sensors enable measurement up to ±60°, with quick initialization and high accuracy.
RTK Accuracy: Fixed RTK: 8 mm + 1 ppm (horizontal), 15 mm + 1 ppm (vertical).
Dual-Band UHF Radio (BM999): Supports 410–470 MHz and 902.4–928 MHz for flexibility across job sites and regions.
Cube-a v6.x Software: Installed on S80 Rugged Android Tablet. Offers GNSS monitoring, stakeout, COGO tools, DXF import/export, CAD layer control, point projection, linework automation, and cloud sync.
Fast RTK Initialization: BM999: <5 sec; BM980+: <10 sec; with signal reacquisition in under 1 sec
Smart Battery System: BM980+ includes built-in smart batteries with LED indicators; BMB999 offers PD fast charging via USB-C
Field-Proven Durability: BM999 rated IP68; BM980+ rated IP67
Standard Output Protocols: Supports RTCM 3.x, NMEA 0183 for third-party software integration
Complete Accessory Kit: Includes bipod, GPS pole, and magnetic bracket for efficient deployment

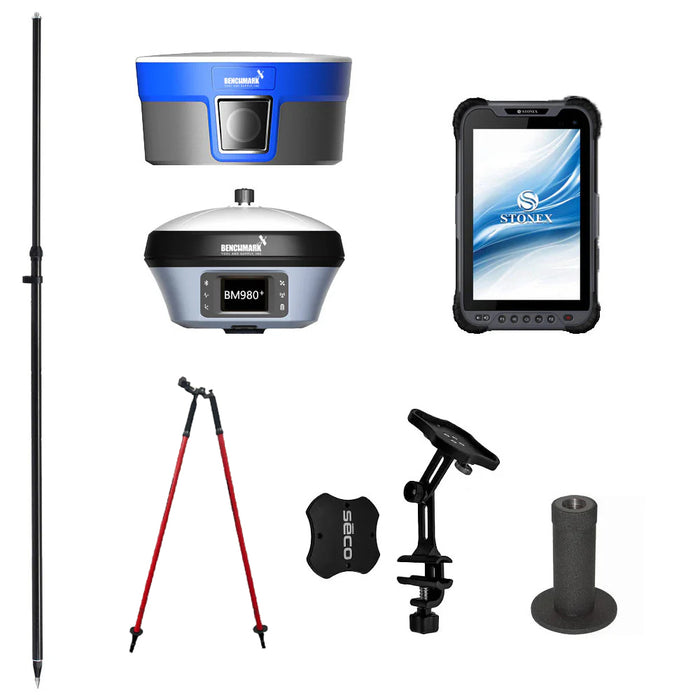

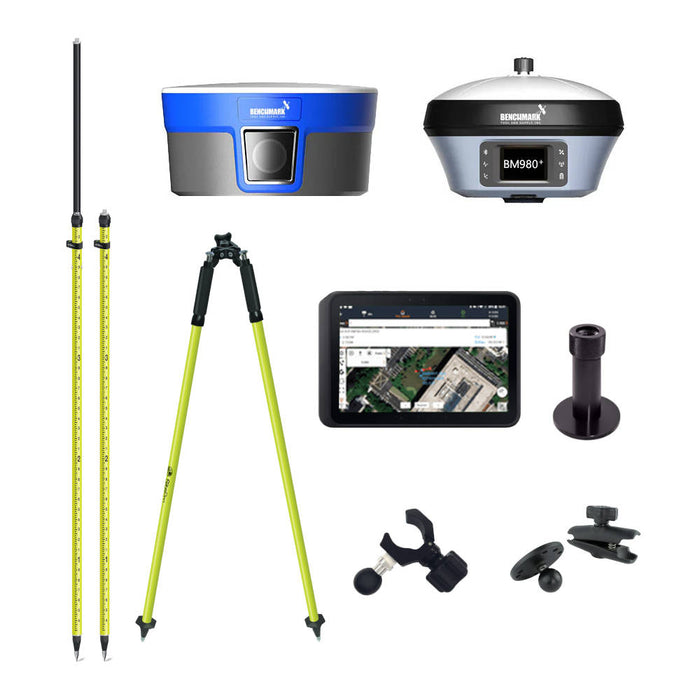

What’s in the Box

(1) BM999 GNSS Receiver
(1) BM980+ GNSS Receiver
(1) BM999 UHF Dual firmware activation
(1) BM980+ IMU firmware activation
(1) S80 Rugged Tablet
(1) C400 (small) MagPad Magnetic Pole Bracket, Short Arm
Cube-a GPS v6.x Data Collection Software
(1) Wide Base Topo Shoe
(1) 2M Carbon Fiber 2-Section GPS Pole w/ Snap Lock
(1) Aluminum Prism Pole Bipod - Red

2-year manufacturer’s warranty.
