Benchmark BM900+ & BM980+ Base and Rover Surveying Package | BM900-980-BRSV

by Benchmark Tool & Supply

MFR#: BM900-980-BRSV

USD $14,478^.20 - USD $14,478^.20

List Price: USD

USD $14,478^.20

USD $14,478^.20 - USD $14,478^.20

USD $14,478^.20

Store Pickup: List of available stores available on the Checkout page.

Benchmark BM900+ & BM980+ Base and Rover Surveying Package | BM900-980-BRSV - USD $14,478^.20

USD $14,478^.20

*Must Purchase 1 for Benchmark BM900+ & BM980+ Base and Rover Surveying Package | BM900-980-BRSV

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Ships Out Within: 24 - 48 Hours Shipping Date By: 4/29/2025

Essential Add-Ons:

Training Per Hour - BM Office or Virtual Only

Details

$185^.00

BASE POLE 7' Tube Steel GPS Base Pole

Details

$97^.50

Mixed-model package: BM980+ as Base, BM900+ as Rover - configured and ready to use
RTK accuracy: BM900+ (5 mm / 10 mm); BM980+ (8 mm / 15 mm)
IMU tilt compensation on both receivers for fast stakeout and hard-to-reach points
BM980+ includes a 5-watt internal UHF radio for long-range correction broadcasting
BM900+ features a 1-watt UHF radio, fast 2–4 second initialization, and compact build
Up to 10 km base-to-rover UHF range in open terrain
Cube-a v6.x survey software pre-configured on the S80 Rugged Android 13 tablet
Dual-band cellular modems, Bluetooth, and Wi-Fi included for flexible connectivity
UHF firmware activated on BM900+ (rover), IMU firmware activated on BM980+ (base)
Smart battery system with up to 15 hours runtime and LED indicators (BM980+)
Includes GPS pole, aluminum prism pole bipod, and magnetic pole bracket

The Benchmark BM980+ Base and BM900+ Rover GNSS package is a premium-grade survey solution built for surveyors working on complex jobs. With pre-configured hardware, tilt capabilities on both ends and a 5-watt radio for extended correction range, this package balances flexibility, accuracy and all-day reliability.

The BM980+ GNSS receiver is configured as a base station. It features full-constellation tracking (GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS) and a built-in 5W UHF radio, capable of broadcasting corrections over distances up to 10 km. Its integrated IMU allows for tilt-compensated measurements up to 60°, reducing setup time and increasing productivity in uneven or obstructed environments. The internal smart battery system includes LED indicators and supports up to 15 hours of use.

At the rover end, the BM900+ GNSS receiver delivers fast RTK performance with 2–4 second initialization, 5 mm + 0.5 ppm horizontal accuracy, and full IMU tilt support. It also features a 1W UHF radio and LTE modem for receiving corrections via radio or cellular network. Built to withstand the field, the BM900+ meets IP67 and MIL-STD-810 standards for durability in all terrains.

The included S80 Rugged Tablet runs Android 13 and comes preloaded with Cube-a v6.x software, delivering advanced features like real-time GNSS status, COGO tools, DXF file support, point projection, automatic linework, and seamless cloud sync.

The package also includes all the essential accessories for immediate field use: GPS pole, a prism pole tripod, and magnetic pole bracket.

This package is pre-configured, firmware-activated, and field-ready, making it an ideal choice for surveyors seeking a reliable GNSS solution.

Dual-Model Configuration: BM980+ serves as a powerful base station with a 5W UHF radio; BM900+ functions as a lightweight, tilt-enabled rover with fast RTK precision
Full GNSS Support: Tracks GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, and SBAS across both receivers for consistent coverage in any environment.
IMU Tilt Technology: Survey with up to 60° of tilt - no need to level the pole.
RTK Initialization Speed: BM900+ initializes in 2–4 seconds; BM980+ base initializes in under 10 seconds - minimizing downtime in the field.
Long-range UHF Connection: BM980+ transmits at 5W; BM900+ receives via 1W radio. UHF firmware is activated and pre-configured.
Cube-a v6.x Software: Installed and configured on the S80 tablet. Features include GNSS status monitoring, stakeout, COGO tools, DXF handling, point projection, auto linework, CAD layer management, and cloud sync.
Smart Battery Systems: BM980+ features internal rechargeable batteries with LED indicators and up to 15-hour runtime. BM900+ includes hot-swappable intelligent batteries lasting up to 12 hours.
Heavy-Duty Field Hardware: Both receivers are IP67 rated and drop-tested for durability
Standard Data Formats: Compatible with RTCM 2.x/3.x, CMR+, and NMEA 0183 output formats for seamless integration with third-party equipment and software.
Flexible Connectivity: Bluetooth, Wi-Fi, USB and LTE modem support for real-time as well as remote data access
Complete Mounting Kit: Package includes GPS rover pole, aluminum prism pole bipod, wide base topo shoe and magnetic bracket.

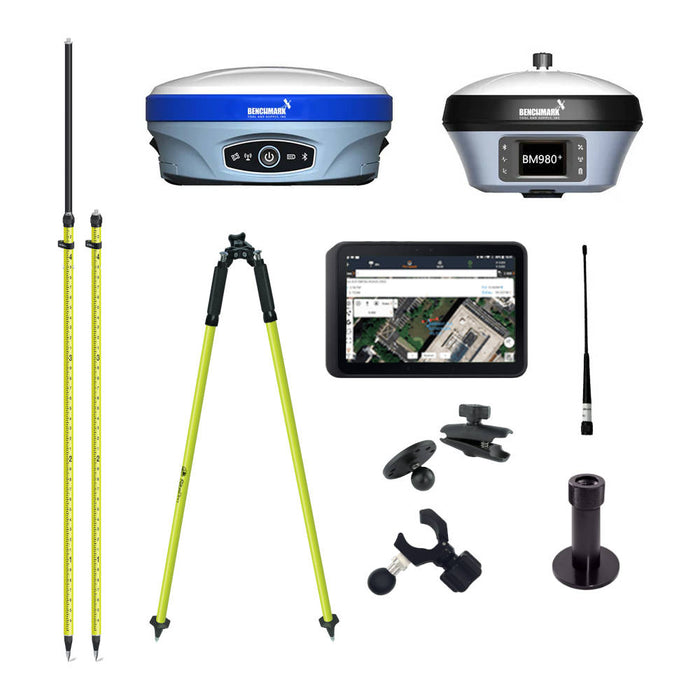

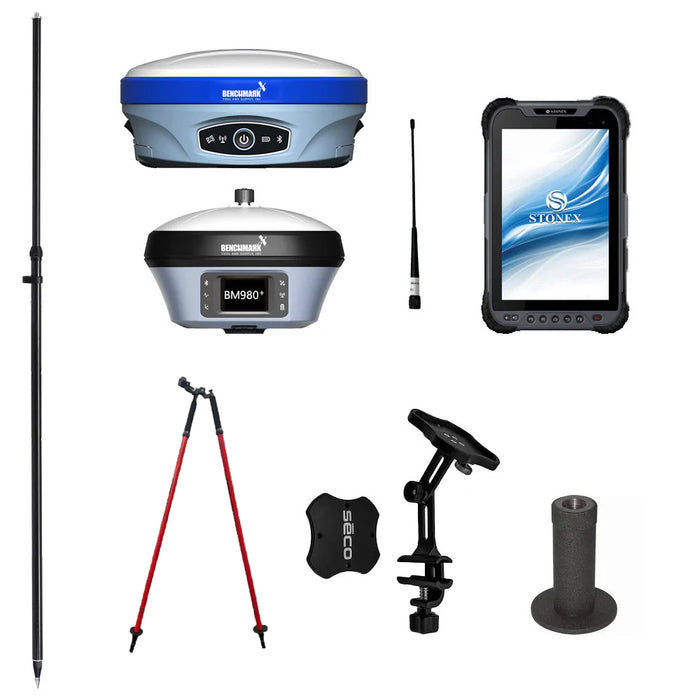

What’s in the Box

(1) BM900+ GNSS Receiver
(1) BM980+ GNSS Receiver
(1) BM900+ UHF firmware activation
(1) BM980+ IMU firmware activation
(1) 29cm UHF antenna (450MHz-470MHz, TNC)
(1) S80 Rugged Tablet
C400 (small) MagPad Magnetic Pole Bracket, Short Arm
Cube-a GPS v6.x Data Collection Software
(1) Wide Base Topo Shoe
(1) 2M Carbon Fiber 2-Section GPS Pole w/ Snap Lock
(1) Aluminum Prism Pole Bipod - Red

2-year manufacturer’s warranty.
