Benchmark BM850 Rover Surveying Package | BM850-RSV

by Benchmark Tool & Supply

MFR#: BM850-RSV

USD $6,681^.70 - USD $6,681^.70

List Price: USD

USD $6,681^.70

USD $6,681^.70 - USD $6,681^.70

USD $6,681^.70

Store Pickup: List of available stores available on the Checkout page.

Benchmark BM850 Rover Surveying Package | BM850-RSV - USD $6,681^.70

USD $6,681^.70

*Must Purchase 1 for Benchmark BM850 Rover Surveying Package | BM850-RSV

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Ships Out Within: 24 - 48 Hours Shipping Date By: 4/29/2025

Essential Add-Ons:

Training Per Hour - BM Office or Virtual Only

Details

$185^.00

Lightweight, compact GNSS rover kit with Benchmark BM850 receiver and S80 Android tablet
Supports all major constellations: GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS, and SBAS
Built-in IMU supports ±60° tilt compensation for flexible stakeout and topo work
Delivers RTK accuracy of 8 mm + 1 ppm (H) / 15 mm + 1 ppm (V)
Integrated 2W UHF radio (410–470 MHz) for correction reception
Internal LTE modem for NTRIP-based RTK corrections via network
Compact and field-ready: 1.5 lbs, IP67-rated, with 10-hour battery life
Pre-loaded, licensed Cube-a v6.x software on included S80 tablet
Includes carbon fiber GPS pole, bipod, and magnetic pole bracket

The Benchmark BM850 Rover GNSS package is high-performance solution built for surveyors who need sub-centimeter precision, tilt-enabled flexibility, and field-ready durability. Compact at just 1.5 lbs, the BM850 is engineered to perform in demanding environments without weighing you down—making it an ideal choice for solo operators and field crews alike.

With support for all major GNSS constellations, including GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS, and SBAS, the BM850 delivers fast and reliable RTK performance across a wide range of job sites. The receiver achieves 8 mm + 1 ppm horizontal and 15 mm + 1 ppm vertical RTK accuracy, with initialization times under 5 seconds and up to 20 Hz update rates.

The integrated IMU sensor allows for ±60° tilt compensation, enabling accurate point capture even when vertical alignment isn’t possible. Whether you're working near walls, slopes, or obstacles, the BM850 gives you the freedom to keep moving—without sacrificing accuracy.

Built-in 2-watt UHF radio (410–470 MHz) ensures compatibility with UHF-based correction systems, and the internal LTE modem provides access to network RTK corrections via NTRIP (confirmed from datasheet). Flexible connectivity options include Bluetooth 5.0, Wi-Fi (802.11 a/b/g/n/ac), and USB.

Powering the receiver is an internal battery that runs up to 10 hours, rechargeable via USB-C. It’s housed in an IP67-rated shell with an operating temperature range of -40°F to 149°F, giving you confidence in harsh weather or rough handling.

The kit includes the S80 Rugged Android Tablet, fully preconfigured with Cube-a v6.x survey software—licensed and ready to go. Cube-a provides tools for GNSS monitoring, DXF import/export, stakeout, COGO functions, CAD layer control, and cloud sync.

Complete with a carbon fiber GPS pole, tripod, and magnetic pole bracket, the Benchmark BM850 Rover Kit delivers a balance of performance and portability—making it a reliable daily driver for surveyors who need fast RTK, field efficiency, and a no-fuss setup.

Multi-Constellation Support: Tracks GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, and SBAS for reliable performance in any location.
RTK Accuracy with Fast Fix: Provides 8 mm + 1 ppm horizontal and 15 mm + 1 ppm vertical accuracy. Achieves RTK fix in under 5 seconds.
Tilt Compensation with IMU: ±60° tilt support using an integrated IMU sensor for measuring points without leveling the pole.
Integrated 2W UHF Radio: Receive RTK corrections via onboard 410–470 MHz UHF receiver—no external radio needed.
Network RTK via NTRIP: Internal LTE modem enables RTK corrections from third-party NTRIP providers using a SIM card.
Compact & Lightweight: Weighs just 1.5 lbs and fits easily in tight spaces or urban jobsites.
Long-Lasting Battery: Up to 10 hours of runtime on a single charge using the internal rechargeable battery.
Rugged Field Design: IP67-certified and tested to operate from -40°F to 149°F. Built for tough conditions.
Preconfigured Survey Tablet: Comes with S80 Rugged Android Tablet, preloaded with licensed Cube-a v6.x software.
Includes Full Accessory Kit: Package includes carbon fiber GPS pole, prism pole bipod, S80 controller, and magnetic bracket for fast setup.

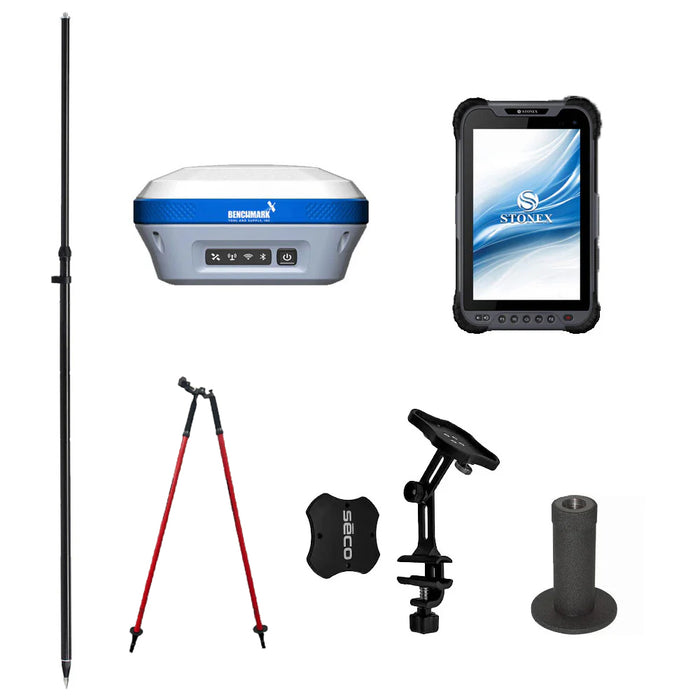

What’s in the Box

(1) BM850 GNSS Receiver
(1) S80 Rugged Tablet
(1) C400 (small) MagPad Magnetic Pole Bracket, Short Arm
Cube-a GPS v6.x Data Collection Software
(1) Wide Base Topo Shoe
(1) 2M Carbon Fiber 2-Section GPS Pole w/ Snap Lock
(1) Aluminum Prism Pole Bipod - Red

2-year manufacturer’s warranty.
