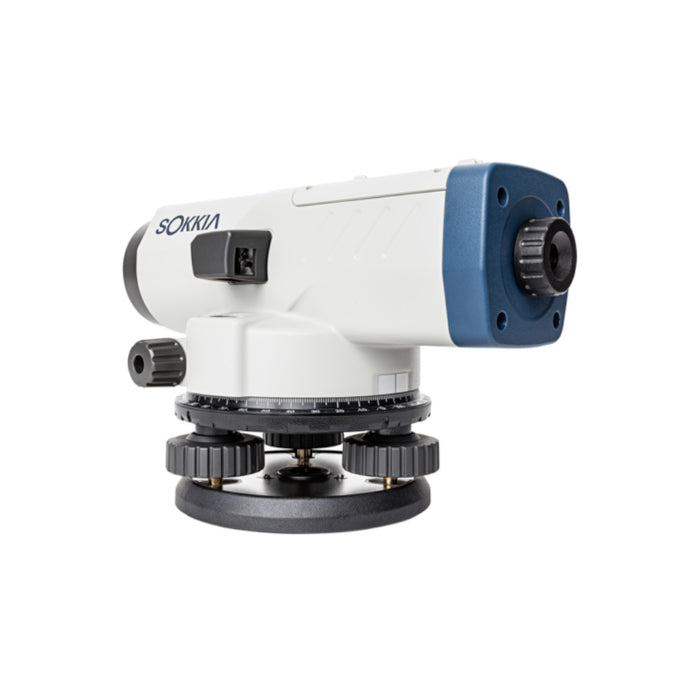

Topcon B40A-25 24x Automatic Level | 1009572-53

by Sokkia

SKU 338570-NC

List Price: USD $355^.00

You Save: USD $127^.00

USD $355^.00 - USD $355^.00

List Price: USD $355^.00

USD $228^.00

USD $228^.00 - USD $228^.00

USD $228^.00

Store Pickup: List of available stores available on the Checkout page.

Model No.: 1009572-53

Topcon B40A-25 24x Automatic Level | 1009572-53 - USD $228^.00

USD $228^.00

*Must Purchase 1 for Topcon B40A-25 24x Automatic Level | 1009572-53

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Ships Out Within: 24 - 48 Hours Shipping Date By: 6/19/2026

Documents

Product Manual Item Brochure

Essential Add-Ons:

Magnification: 24x
Objective Aperture: 32 mm
Resolving Power: 4"
Minimum Focus: 0.2 m (from end of telescope)
Field of View (at 100 m): 1°25′ (2.5 m)
Image: Erect
Reticle: Wedge cross line
Stadia Ratio/Constant: 100 / 0
Accuracy (1 km double run): ±2.0 mm
Compensator: Pendulum with magnetic damping
Setting Accuracy: 0.5"
Working Range: ±15′
Horizontal Circle: Diameter: 103 mm, Graduations: 1° / 1gon
Water Resistance: IPX6 (High-pressure jet-proof)
Operating Temperature: -4°F to +122°F (-20°C to +50°C)

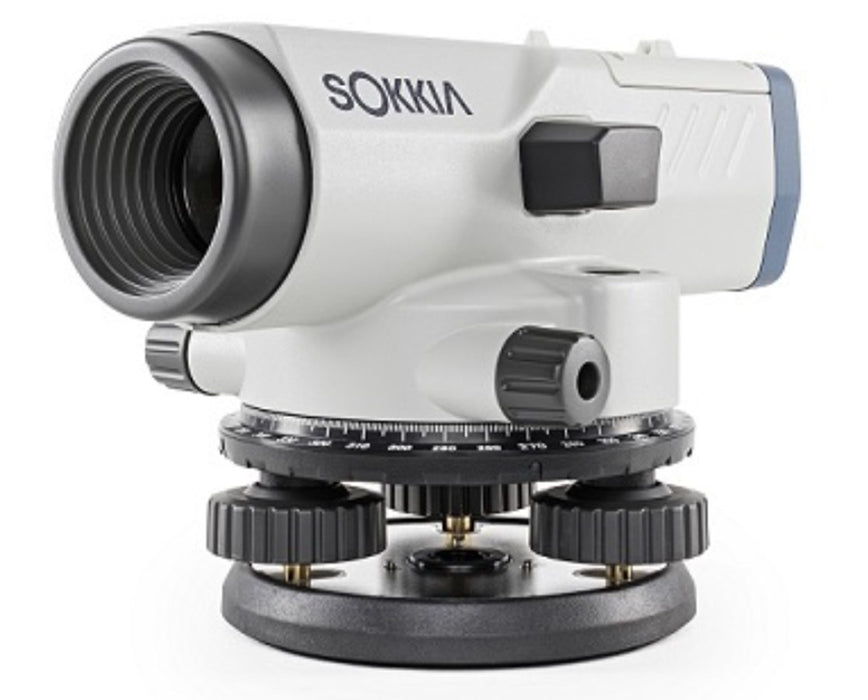

The Sokkia B-Series Automatic Level feature smaller, lightweight design ideal for engineering and construction. This measuring device provides surveyors, builders, and engineers highly accurate leveling, angle, height, as well as distance measurements. With a minimum focusing distance of up to 7.9 inches and a ±1/16-inch leveling accuracy, this auto level also offers an effective (compensator) range of ±15 arc minutes which is the perfect tool for landscaping and construction work.

Equipped with a pendulum compensator, the Sokkia B-Series auto level uses a magnetic dampening system for exceptional accuracy and reliability. Its telescope is optimally constructed to provide a bright and sharp view with its automatic compensator accuracy of ±0.5 arc-seconds. It also has a horizontal angle that can be read in 1 degree or 1 unit gon.

The exclusive technology integrated into the magnetic system ensures the accuracy and stability of this Sokkia auto level even when there are changes in temperature, vibration, and shock. Built with IPX6 high-pressure water jet resistant, this auto level is very durable, compact, and weighs only 3.3 lbs.

Magnification: 24x
Objective Aperture: 32 mm
Resolving Power: 4"
Minimum Focus: 0.2 m (from end of telescope)
Field of View (at 100 m): 1°25′ (2.5 m)
Image: Erect
Reticle: Wedge cross line
Stadia Ratio/Constant: 100 / 0
Accuracy (1 km double run): ±2.0 mm
Compensator: Pendulum with magnetic damping
Setting Accuracy: 0.5"
Working Range: ±15′
Horizontal Circle: Diameter: 103 mm, Graduations: 1° / 1gon
Water Resistance: IPX6 (High-pressure jet-proof)
Operating Temperature: -4°F to +122°F (-20°C to +50°C)

What’s in the Box

Sokkia B-Series Automatic Level - 24x
Hex wrench
Adjusting pins
Lens cap
Cleaning cloth
Hard carrying case
User manual
5-year manufacturer's warranty

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

We do not accept returns or cancellations for special ordered items.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy

Leveling

±1/16”

Compensator

Accuracy

±0.3 or 0.5 arc seconds

Range

±15 arc minutes

Type

Pendulum with magnetic damping system
