Automatic Level

MFR#: 40-6960
Original price List Price: USD $477.80
You Save: USD $136.17 -28%
Original price USD $477.80 - Original price USD $477.80
Original price List Price: USD $477.80
Current price USD $341.63
USD $341.63 - USD $341.63
Current price USD $341.63

Store Pickup: List of available stores available on the Checkout page.

Automatic Level
Automatic Level - USD $341.63
USD $341.63
*Must Purchase 1 for Automatic Level

The cart will thereforce automatically set Qty to 1 when you order this product

One of our Sales Experts will be in touch!

IN STOCK Ships Out Within: 24 - 48 Hours Shipping Date By: 11/13/2024
Essential Add-Ons:
Universal Contractor's Tripod
Universal Contractor's Tripod
Details
$71.25
Aluminum Rod
Aluminum Rod
Details
$38.95
Fiberglass Rod
Fiberglass Rod
Details
$92.25
  • Top-mounted optical sight
  • Pentaprism for bubble viewing
  • Focusable cross-hairs
  • Compensation range: ±15 arc minutes
  • Accuracy up to ±1/16 inches at 200 feet
  • Wire-hung magnetic-dampened compensator
  • 360-degree horizontal circle
  • Large, easy-to-use focusing knob

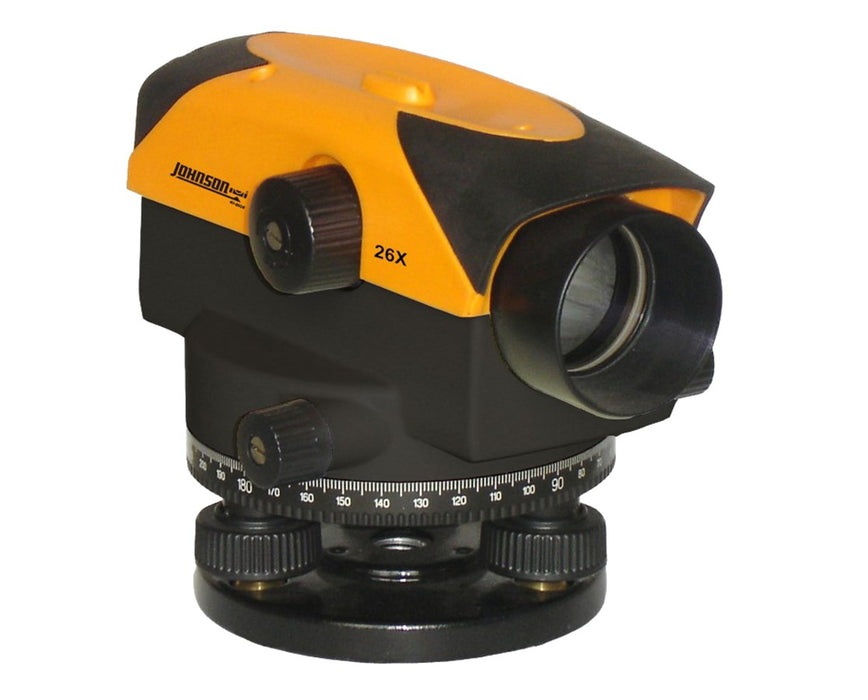

The Johnson Automatic Level is easier to use and quicker to set up than a builder’s level and transit level. It has a circular level or bulls-eye level mounted on the center to facilitate leveling. Once the bubble on the circular level is centered, a compensator takes over and maintains a true level line of sight and no further leveling is required at the location. With a leveling accuracy of ±1/16-inch at 200 feet, this auto level offers a ±15 arc-minute effective range and a ±0.8 arc second setting accuracy.

With its wire-hung magnetically dampened compensator, this Johnson auto level remains accurate and level through ground vibrations, operator handling as well as temperature changes. The Johnson Automatic Level horizontal circle is marked with 360 degrees graduations and a pentaprism for bubble viewing. It also comes with a focusable cross-hairs and a 5/8 x 11 thread that is compatible with most standard tripods.

This automatic level features a large easy-to-use focusing knob and fine adjustment knobs on left and right sides with an endless horizontal drive. It comes with a prism for bubble viewing and a top-mounted optical sight for quick reference. The Johnson Automatic Level Series is water resistant for use in most weather conditions. It includes an instruction manual with warranty card and hard-shell carrying case.

Configuration Options

The Johnson Automatic Level is available in different magnifications and packages. Please select your preference from the menus above.

  • 40-6926: Johnson 26x Automatic Level Without Tripod & Grade Rod
  • 40-6928: Johnson 26x Automatic Level With Aluminum Tripod & 13 ft. Grade Rod
  • 40-6960: Johnson 30x Automatic Level Without Tripod & Grade Rod

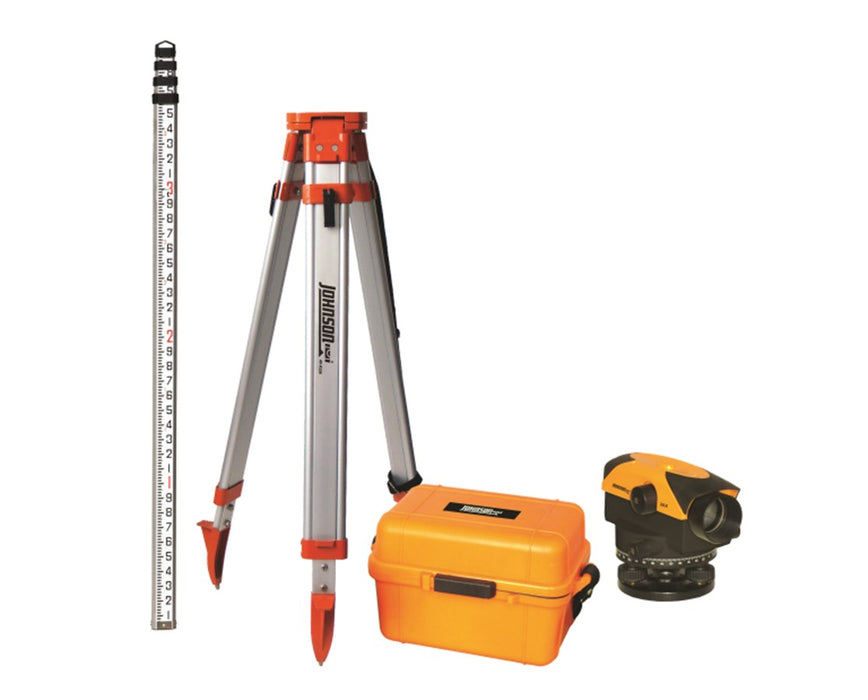

  • 40-6961: Johnson 30x Automatic Level With Aluminum Tripod & 13 ft. Grade Rod
  • 40-6962: Johnson 32x Automatic Level Without Tripod & Grade Rod
  • 40-6963: Johnson 32x Automatic Level With Aluminum Tripod & 13 ft. Grade Rod
  • Magnification options: 26x, 30x, or 32x
  • Optional tripod or 13-foot grade rod
  • Wire-hung, magnetically dampened compensator
  • Large, easy-to-use focusing knob
  • Effective (compensation) range: ±15 arc minutes
  • ±1/16 inch accuracy at 200 feet
  • 360-degree horizontal circle
  • Pentaprism for bubble viewing
  • Top-mounted optical sight for quick reference
  • Fine adjustment knobs on left and right sides
  • Endless horizontal drive
  • 1:100 stadia for distance estimation
  • Focusable cross-hairs
  • Water resistant
  • 5/8 x 11 threads for standard tripods

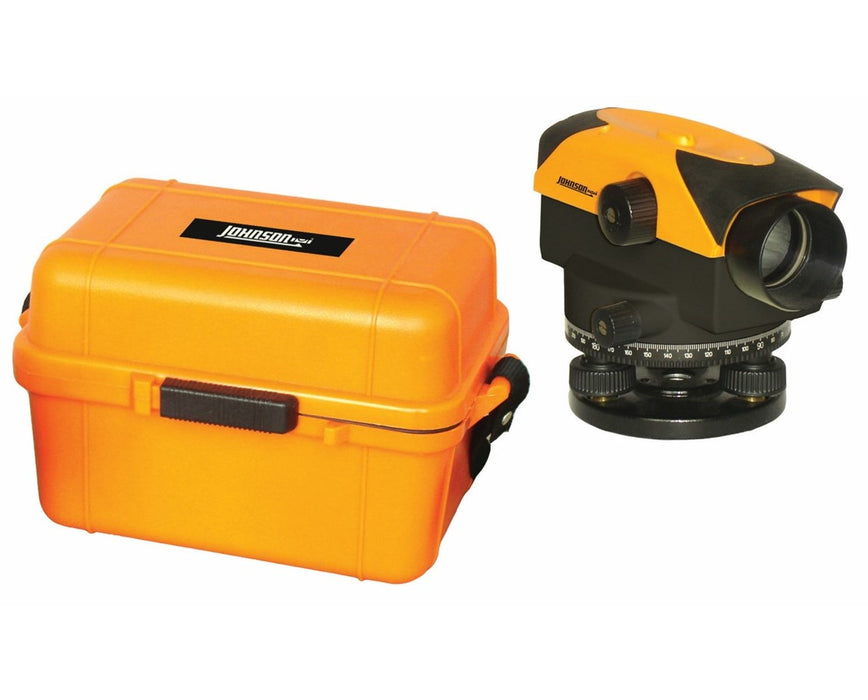

What’s in the Box

  • Johnson Automatic Level Series
  • Hard-shell carrying case
  • 3-year with warranty card

Available Package Options

  • Magnification: 26x, 30x or 32x
  • Tripod & 13-Foot Grade Rod: Optional

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Leveling
±1/16” at 100 feet
Compensator
Accuracy
±0.8 arc-second
Range
±15 arc minutes
Type
Wire-hung magnetically dampened
Distance Measurement
Range
0.0315 inches to 350 feet (0.8 to 100 m)
Features
Adjustment Knobs
2
Bubble Vial
Yes
Horizontal Circle
360°
Leveling Screws
Yes
Sighting Scope
Yes
General
Protection Class
Water resistant
Tripod Thread
5/8 x 11
Units of Measure
Degrees, mm, m, in, ft
Warranty
3-year
Weight
2.4 lbs (1.1 kg)
Telescope
Diameter of Objective
1.57 inches (40 mm)
Field of View
1º 30’
Magnification
26x, 30x, 32x
