Pro Shot AS2 Grade Laser - 300-0000S

MFR#: 300-0000S
TIGER#: TS59299
Original price USD $1,644.50 - Original price USD $1,644.50
Original price List Price: USD
USD $1,644.50
USD $1,644.50 - USD $1,644.50
Current price USD $1,644.50

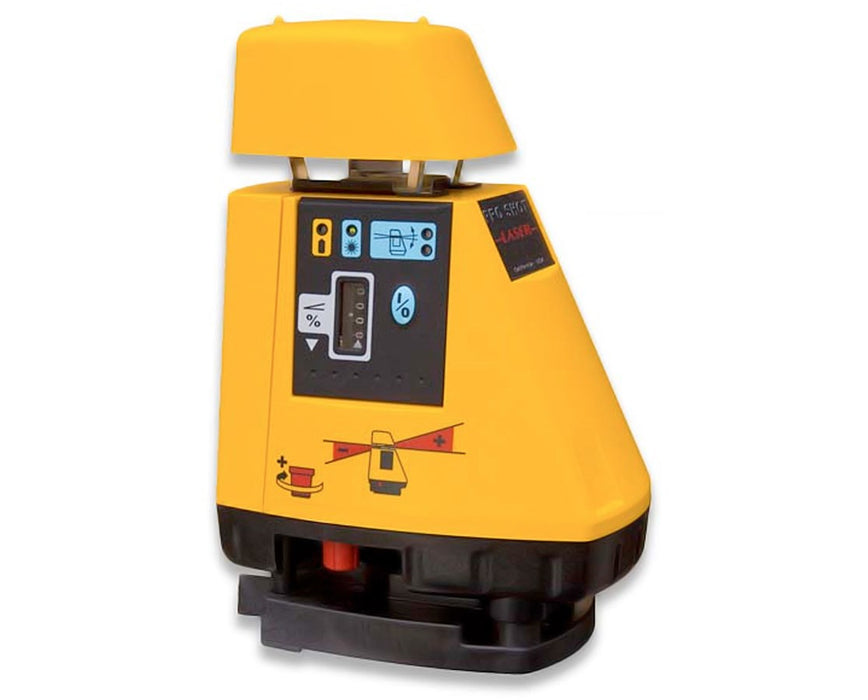

Pro Shot AS2 Grade Laser - 300-0000S
Pro Shot AS2 Grade Laser - 300-0000S - USD $1,644.50
USD $1,644.50
*Must Purchase 1 for Pro Shot AS2 Grade Laser - 300-0000S

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 7/22/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$43.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$648.00
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Single axis slope capability of 25%
  • Working range of 2,000 ft. w/ R9 receiver
  • Accuracy: ±14 arc sec. (±.080" per 100' or ±2.0mm per 30m)
  • Rotation speed of 600 rpm
  • 3-year Guardian Warranty
  • Self-leveling range: ±4 degrees
  • Visible 670nm laser beam (<1mW)
  • 115-hour operation w/ 4 alkaline batteries
  • CDRH and IEC Class 2 laser classification

The Pro Shot AS2 Grade Laser combines superior precision and excellent performance to provide solution to most construction needs such as grading, leveling, excavating, and drainage applications. It offers 25 percent single axis slope capability with accurate 0.01-percent increments for setting specific slopes. It is equipped with a visible 670-nanometer red laser beam that conforms to CDRH and IEC standards.

Featuring servo motor leveling technology, this Pro Shot single grade laser is self-leveling within ±4 degrees. It has 360-degree rotation coverage and a wide working range of up to 2,000-foot diameter with R9 laser receiver. It performs with accuracy of ±14 arc seconds (±.080 inch per 100 feet or ±2.0 millimeters per 30 meters) and rotation speed of 600 revolutions per minute. With a height alert mechanism, it ensures correct and accurate reading at all times.

The Pro Shot AS2 Grade Laser comes with machine control compatibility for maximum flexibility and functionality. It includes four C-cell alkaline batteries and operates for up to 115 hours. NiMH rechargeable batteries can also be used for up to 85-hour runtime. It is supplied with a clamp and a carrying case for easy transport and convenient storage. With a three-year Guardian Warranty, it guarantees reliable service and long-lasting efficiency.

  • Single axis slope capability of 25% with .01% increments
  • Up to 2,000 ft. working range with R9 receiver
  • Accuracy: ±14 arc sec. (±.080" per 100' or ±2.0mm per 30m)
  • Rotation speed of 600 rpm
  • 360-degree rotation coverage
  • Self-leveling range: ±4 degrees
  • Servo motor leveling technology
  • Visible 670nm laser beam (<1mW)
  • Height alert for maximum accuracy
  • Machine control compatible
  • Four C alkaline batteries for up to 115-hour operation
  • CDRH and IEC Class 2 laser classification
  • Rated IP56 for dust and water resistance
  • Operating temperature: -4º F to +140º F (-20º C to +60º C)
  • Includes clamp and carrying case
  • 3-year Guardian Warranty

What’s in the Box

  • Pro Shot AS2 Grade Laser
  • R9 Laser Receiver
  • 4x C-Cell Batteries
  • Clamp
  • Carrying Case
  • 3-Year Manufacturer's Warranty

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 5% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±14 arc sec (±.080" per 100 ft. (300-0000S) / ±10 arc sec or ± .060" per 100 ft.)
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Building Square & Area
Yes
Checking Elevations of Sub-Base and Sub-Grade
Yes
Checking/Setting Elevations
Yes
Estimating Cut & Fill
Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Interior Walls
Yes
Locating Finished Floor Levels
Yes
Machine Control of Excavators, Graders, Dozers or Similar Equipment
Yes
Matching Existing Slope & Grade
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Battery/Power
Battery Life Alert
Yes
Battery Life with Alkaline Batteries
Up to 115 hours
Battery Life with Rechargeable Battery Pack
Up to 85 hours
Power Source
4 x C-cell alkaline batteries (included) or NiMH rechargeable batteries (not included)
Extra Technology
Detector/Receiver
R9 laser receiver
Remote Control
Machine control compatible
Features
Automatic Shut-Off
On receiver for 12 minutes
Bump Sensor (H.I./Out of Position Alert)
Height alert
Detecting Indicator
LCD indications, LED flashes, and audio tones
Display
On receiver (front and rear)
One-Touch Commands
Yes
Protection Class
IP56 dustproof and powerful water jet resistant
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
Beam Operating Modes
Manual and Automatic
Grade Operation
Manual and Automatic
Scanning Modes
Low, High, On-Grade
Slope Match
Single axis 25% with .01% increments
General
Dimensions
15" L x 12" W x 8" H
Maximum Power Output
<1mW
Warranty
3-year
Weight
10 lbs (4.5 kg)
Grade
Accuracy
±.080" (±2.0mm)
Percentage
25% with .01% increments
Type
Single
Laser
Classification
CDRH and IEC Class 2
Color
Red
Direction
Horizontal
Visibility
Visible
Wavelength
670nm
Range
Exterior
Up to 2,000 feet (600m)
Self Leveling
±4 degrees
Temperature
Operating
-4 to 140 ºF (-20 to 60 ºC)
