Alpha Self-Leveling Rotary Laser

MFR#: 020-0020P
TIGER#: TS59278
Original price List Price: $895.00
You Save: $82.50 -9%
Original price $895.00 - Original price $895.00
Original price List Price: $895.00
Current price $812.50
$812.50 - $812.50
Current price $812.50
Alpha Self-Leveling Rotary Laser
Alpha Self-Leveling Rotary Laser - $812.50
$812.50
*Must Purchase 1 for Alpha Self-Leveling Rotary Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 3/6/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
Heavy-Duty Tripod
Heavy-Duty Tripod
Details
$109.95
Aluminum Rod
Aluminum Rod
Details
$33.95
$44.95
  • Self-leveling range: ±5 degrees
  • Servo motor leveling technology
  • 360-degree rotation coverage
  • Selectable speed of 600rpm or 1200rpm
  • Manual slope matching up to 8%
  • Accuracy: ±10 arc sec. (± 1/16" per 100')
  • Visible 670nm laser beam (<1mW)
  • Machine control compatible
  • 6-Year Warranty

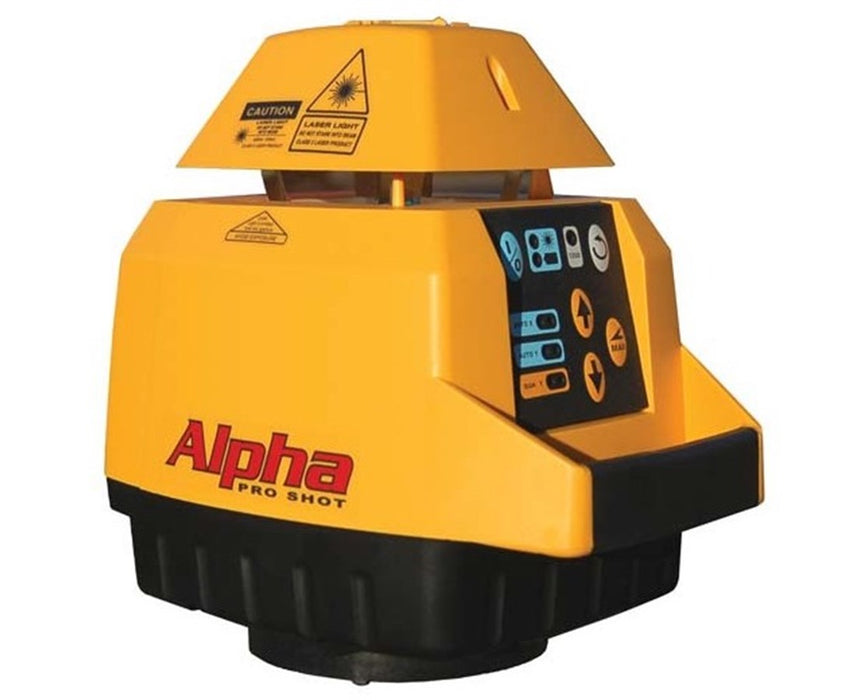

The Pro Shot Alpha Series Self-Leveling Rotary Laser is a high-performing level tool designed for general construction that requires superior accuracy, long-lasting durability, and maximum functionality. Ideal for large commercial or municipal jobsites, it offers a 360-degree rotation coverage and a wide diameter range of 2,000 feet with R9 laser receiver or 3,300 feet with R8 laser receiver. It is heavy-duty and can withstand three-foot drop or five-foot knock-over on concrete.

This self-leveling laser by Pro Shot Laser has an accuracy of ±10 arc seconds (±1/16 foot per 100 feet or ±1.5 millimeters per 30 meters) and selectable speed of 600 or 1200 revolutions per minute. To ensure precision at all times, it comes with a height alert mechanism that prevents the laser from re-leveling at different heights which compromises its working accuracy. It features a visible 670-nanometer laser beam that complies with CDRH and IEC standards with Class 2 (Alpha) or Class IIIA and 3R (Alpha XD) classifications.

The Pro Shot Alpha Series Self-Leveling Rotary Laser is equipped with a servo motor leveling technology that allows automatic leveling within ±5 degrees. It also enables slope matching (up to eight percent range) such as Y-axis manual adjustment and X-axis auto-leveling. It is machine control compatible including high speed rotation. It includes four C-cell alkaline batteries and accepts NiMH rechargeable batteries. Rated IP56, it is sealed against dust and water.

The Pro Shot laser is made in the USA and is covered by a 6-year warranty combined with a 24-hour repair/return guarantee.

Configuration Options

The Pro Shot Alpha Series Self-Leveling Rotary Laser comes with two receiver options and diameter range variations. Please select your preference from the menu above.

  • 020-0020P: R9 Receiver w/ 2,000 ft. Diameter Range


Laser Receiver

R9


Working Diameter


up to 2,000 ft


Front Display


5-channel LCD


Rear Display


3-channel LED


Battery


9V battery


Battery Life


60 hours


Automatic Shut-Off


After 12 min. (no beam strike)


Detection Accuracies


Ultra-Fine


±1/64 inch


Standard


±1/16 inch


Coarse


±1/8 inch

  • Choice of receiver and diameter range
  • Self-leveling range: ±5 degrees
  • Servo motor leveling technology
  • 360-degree rotation coverage
  • Selectable speed of 600rpm or 1200rpm
  • Manual slope matching up to 8%
  • Accuracy: ±10 arc sec. (± 1/16" per 100' or ± 1.5mm per 30m)
  • Visible 670nm laser beam (<1mW)
  • Height alert for maximum accuracy
  • Machine control compatible
  • Four C alkaline batteries for up to 115-hour operation
  • Complies with CDRH and IEC standards
  • Rated IP56 for dust and water resistance
  • Withstands 3-ft drop or 5-ft knock-over on concrete
  • Operating temperature: -4º F to +140º F (-20º C to +60º C)
  • Includes clamp and carrying case
  • 6-year manufacturer’s warranty

What’s in the Box

  • Pro Shot Alpha Series Self-Leveling Rotary Laser
  • Receiver
  • 4x C-Cell Batteries
  • Clamp
  • Carrying Case
  • 2-year Manufacturer’s Warranty

Available Package Options

  • Receiver: R9 Receiver
  • Diameter Range: 2,000 ft. or 3,300 ft.

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 5% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±1/16 inch at 100 feet
Vertical
±1/16 inch at 100 feet
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Elevations of Sub-Base and Sub-Grade
Yes
Checking/Setting Elevations
Yes
Installation/Leveling Interior Walls
Yes
Locating Finished Floor Levels
Yes
Machine Control of Excavators, Graders, Dozers or Similar Equipment
Yes
Matching Existing Slope & Grade
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Short-Run Vertical Alignment
Yes
Battery/Power
Battery Life Alert
Yes (Amber LED)
Battery Life with Alkaline Batteries
Up to 115 hours (020-0020P) / up to 90 hours (020-0020B)
Battery Life with Rechargeable Battery Pack
Up to 85 hours (020-0020P) / Up to 65 hours (020-0020B)
Power Source
4 x C-cell alkaline batteries (included) or NiMH rechargeable batteries (not included)
Extra Technology
Detector/Receiver
R9 (020-0020P)
Remote Control
Machine control compatible
Features
Adjustable Rotating Speed
Selectable speed of 600rpm or 1200rpm
Automatic Shut-Off
On receiver for 12 minutes (020-0020P) / On receiver for 30 minutes (020-0020B)
Bump Sensor (H.I./Out of Position Alert)
Height alert
Detecting Indicator
LCD indications, LED flashes, and audio tones
Display
On receiver (front and rear)
Drop Damage Protection
Up to 3 or 5 feet
One-Touch Commands
Yes
Protection Class
IP56 dustproof and powerful water jet resistant
Functions
Automatic Leveling
Yes
Beam Operating Modes
Manual and Automatic
Grade Operation
Manual & Automatic
Scanning Modes
Low, High, On-grade
Slope Match
Manual
General
Dimensions
15" L x 12" W x 8" H
Maximum Power Output
<1mW
Warranty
6 years
Weight
10 lbs (4.5 kg)
Laser
Classification
CDRH and IEC Class 2 (020-0020P) / CDRH class IIIa & IEC class 3R (020-0020B)
Color
Red
Direction
Horizontal
Visibility
Visible
Wavelength
670nm
Range
Exterior
Up to 2,000 feet (020-0020P) / 3,300 ft. (020-0020B)
Self Leveling
±5 degrees
Temperature
Operating
-4 to 140 ºF (-20 to 60 ºC)
