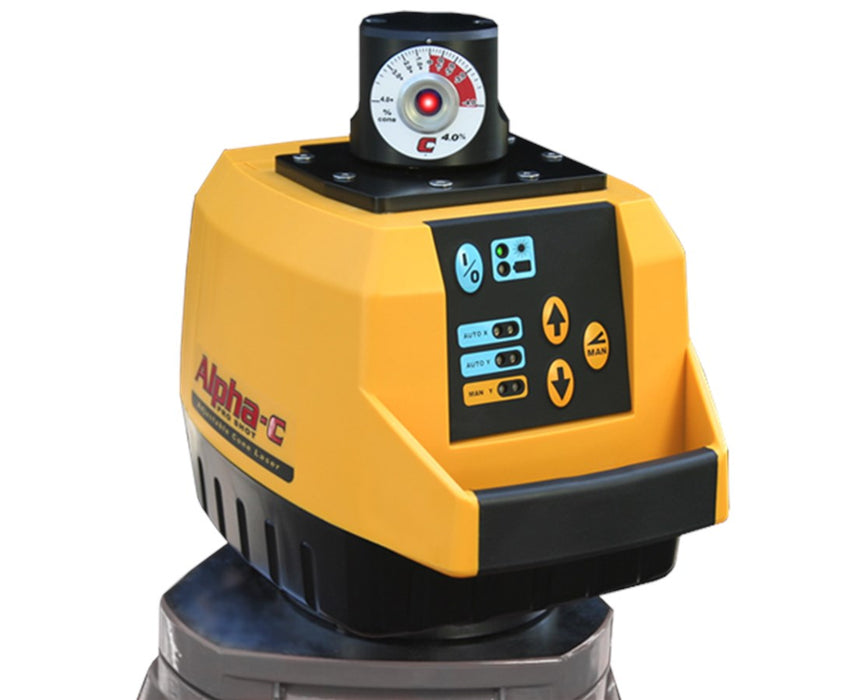

Pro Shot Alpha-C Cone Grade Laser - 020-0020C (4% conical slope)

MFR#: 020-0020C
TIGER#: TS59327
Original price USD $2,420.00 - Original price USD $2,420.00
Original price List Price: USD
USD $2,420.00
USD $2,420.00 - USD $2,420.00
Current price USD $2,420.00
Pro Shot Alpha-C Cone Grade Laser - 020-0020C (4% conical slope)
Pro Shot Alpha-C Cone Grade Laser - 020-0020C (4% conical slope) - USD $2,420.00
USD $2,420.00
*Must Purchase 1 for Pro Shot Alpha-C Cone Grade Laser - 020-0020C (4% conical slope)

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 7/14/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$43.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Topcon LS-B20 Machine Control Laser Receiver - 1063525-03
Details
$648.00
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Conical slope of ±4% w/ 1/4% increments
  • Horizontal accuracy: ±10 arc sec.
  • Includes R9 laser receiver
  • Working range: 2,000 ft. diameter (610m)
  • Single axis slope matching up to 8%
  • Self-leveling range: ±5 degrees
  • Rotation speed of 500rpm
  • Visible 670nm laser beam (<1mW)
  • 6-Year Warranty

The Pro Shot Alpha-C Cone Grade Laser is a unique leveling tool specifically designed for sports fields, drainage, containment areas around storage tanks, and other applications that require precise curved slopes. It features a cone rotor head that can project up to ±4-degree conical slope, either up or down, in ¼ percent increments. It also allows single axis slope matching up to eight percent. It offers 360-degree rotation coverage and a speed of 500 revolutions per minute.

This precision cone grade laser by Pro Shot, with its servo motor leveling technology, is self-leveling within ±5 degrees. It is equipped with R9 laser receiver that allows a working range of up to 2,000-foot (610-meter) diameter. With horizontal accuracy of ±10 arc seconds (±1/16 inch per 100 feet or ±1.5 millimeters per 30 meters) and a height alert mechanism, it ensures correct, accurate measurements at all times. It is machine control compatible and accommodates most modern systems.

The Pro Shot Alpha-C Cone Grade Laser comes with a visible 670-nanometer laser beam that complies with CDRH and IEC standards with Class IIIa and Class 3R ratings, respectively. It includes a clamp, a carrying case, and four C-cell alkaline batteries that can operate for up to 75 hours. Built to withstand the harsh conditions in jobsites, it is durable and rated IP56 to resist dust and water. This laser is made in the USA and has a 24-hour repair/return guarantee combined with a  6-year manufacturer's warranty for guaranteed efficiency and functionality.

  • Conical slope capability of ±4% with 1/4% increments
  • Horizontal accuracy: ±10 arc sec. (±1/16" per 100' / ±1.5mm per 30m)
  • Includes R9 laser receiver
  • Working range: 2,000 ft. diameter (610m)
  • Single axis slope matching up to 8%
  • Self-leveling range: ±5 degrees
  • Servo motor leveling technology
  • 360-degree rotation coverage
  • Rotation speed of 500rpm
  • Visible 670nm laser beam (<1mW)
  • Laser classification: CDRH Class IIIa, IEC Class 3R
  • Height alert for maximum accuracy
  • Machine control compatible
  • Four C alkaline batteries for up to 75-hour operation
  • Rated IP56 for dust and water resistance
  • Operating temperature: -4º F to +140º F (-20º C to +60º C)
  • Includes clamp and carrying case
  • 6-year manufacturer’s warranty

What’s in the Box

  • Pro Shot Alpha-C Cone Grade Laser
  • R9 Laser Receiver
  • 4x Alkaline Batteries
  • Clamp
  • Carrying Case
  • 6-Year Manufacturer's Warranty

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 5% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±10 arc sec. (±1/16" per 100' / ±1.5mm per 30m)
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Building Square & Area
Yes
Checking Elevations of Sub-Base and Sub-Grade
Yes
Checking/Setting Elevations
Yes
Estimating Cut & Fill
Yes
Locating Finished Floor Levels
Yes
Machine Control of Excavators, Graders, Dozers or Similar Equipment
Yes
Matching Existing Slope & Grade
Yes
Short-Run Vertical Alignment
Yes
Squaring and Layout of Partitions, Walls & Tile Floors
Yes
Battery/Power
Battery Life Alert
Yes (Amber LED)
Battery Life with Alkaline Batteries
Up to 75 hours
Battery Life with Rechargeable Battery Pack
Up to 48 hours
Power Source
4 x C alkaline batteries (included) or NiMH rechargeable batteries (not included)
Extra Technology
Detector/Receiver
R9 laser receiver
Features
Automatic Shut-Off
On receiver for 12 minutes
Bump Sensor (H.I./Out of Position Alert)
Height alert
Detecting Indicator
LCD indications, LED flashes, and audio tones
Display
On receiver (front and rear) LCD
One-Touch Commands
Yes
Protection Class
IP56 dustproof and powerful water jet resistant
Functions
Automatic Leveling
Yes (±5 degrees)
Beam Operating Modes
Manual and Automatic
Grade Operation
Manual & Automatic
Scanning Modes
Low, High, On-grade
Slope Match
±8%
General
Dimensions
15" L x 12" W x 8" H
Maximum Power Output
<1mW
Warranty
6 Years
Weight
10 lbs (4.5 kg)
Grade
Percentage
±4% with 1/4% increments
Type
Conical slope
Laser
Classification
CDRH Class IIIa, IEC Class 3R
Color
Red
Direction
Horizontal
Visibility
Visible
Wavelength
670nm
Range
Exterior
Up to 2,000 feet (600m)
Self Leveling
±5 degrees
Temperature
Operating
-4 to 140 ºF (-20 to 60 ºC)
