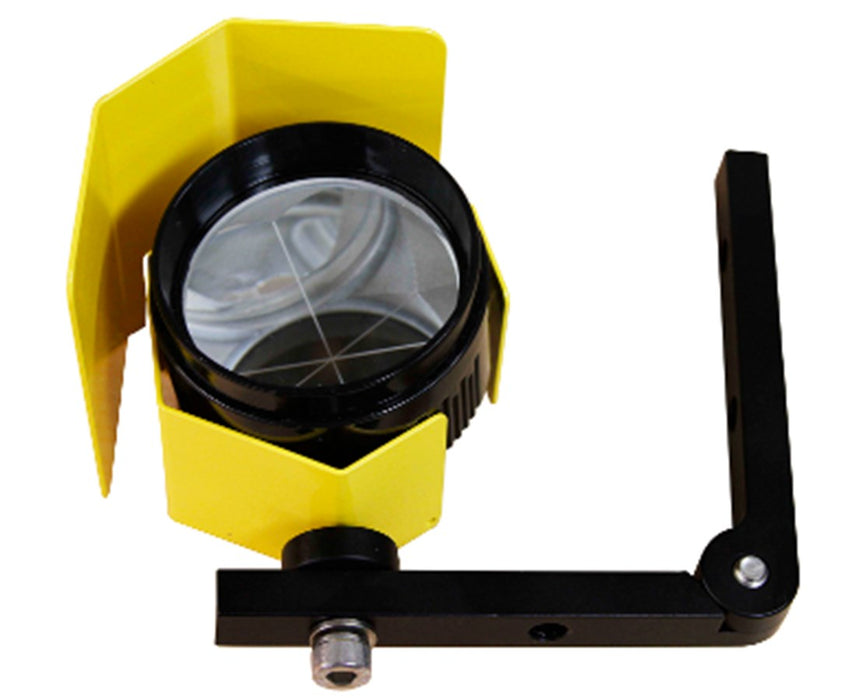

62 mm Silver-Coated Monitoring Prism

by Seco
MFR#: 6603-05
TIGER#: TS38764
Original price $216.50 - Original price $216.50
Original price List Price: .
$216.50
$216.50 - $216.50
Current price $216.50
62 mm Silver-Coated Monitoring Prism
62 mm Silver-Coated Monitoring Prism - $216.50
$216.50
*Must Purchase 1 for 62 mm Silver-Coated Monitoring Prism

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 5 - 7 Business Days Shipping Date By: 3/1/2024

One of our Sales Experts will be in touch!

  • Prism 62 mm
  • Ideal for mounting on uneven surfaces
  • Mounting arm allows tilt up to 240 degrees
  • Prism mount allows 360 degrees rotation
  • Mounting holes have 0.328-inch diameter
  • Stainless steel pivot and prism bolts
  • Hex wrench and rain hood included

The Seco 62 mm Silver-Coated Monitoring Prism is ideal for deformation and mining surveys or wherever permanent mounting is needed. This design makes mounting and pointing easy on uneven surfaces. Plus, it has a mounting arm that allows tilt motion up to 240 degrees and a prism mount that allows 360 degrees rotation.

The two mounting holes of this prism are spaced 1.75-inch apart while the mounting holes themselves have a diameter of 0.328-inch. Its pivot and prism mounting bolts are composed of 8 mm stainless steel with 6 mm lock washers.

Includes a hex wrench and a rain hood, this monitoring prism is 62 mm high. Silver-coated for increased durability, the Seco prism only weighs 1.15 lbs.

  • Prism size: 62 mm
  • Makes mounting and pointing easy on uneven surfaces
  • Mounting arm allows tilt up to 240 degrees
  • Prism mount allows 360 degrees rotation
  • Two mounting holes are spaced 1.75-inch apart
  • Mounting holes have 0.328-inch diameter
  • Pivot and prism mounting bolts are composed of 8 mm stainless steel
  • Lock washers 6mm
  • Hex wrench included
  • Rain hood included
  • Silver coated
  • Weight 1.15 lbs. (0.52kg)

What’s in the Box

  • Seco 62 mm Silver-Coated Monitoring Prism 6603-05
  • Hex wrench
  • Rain hood

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 15% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

Order Cancellations will incur a 15% fee.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Angle
360 degrees
Tilt
240 degrees
Features
Holder
Yes
General
Coating
Silver
Diameter Of Center Hole
62 mm
Material
Stainless steel
Thread
5/8 x 11
Type
Monitoring
Weight
1.15 lbs.
