5-Point and 2-Cross Line Laser Level

MFR#: LT52R
TIGER#: TS34005
Original price $372.60 - Original price $372.60
Original price List Price:
$372.60
$372.60 - $372.60
Current price $372.60
5-Point and 2-Cross Line Laser Level
5-Point and 2-Cross Line Laser Level - $372.60
$372.60
*Must Purchase 1 for 5-Point and 2-Cross Line Laser Level

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 6/5/2024

One of our Sales Experts will be in touch!

  • Range up to 250-foot with optional laser detector
  • Self-leveling within ±3 degrees
  • Accuracy ±1/8-inch at 50 feet
  • 360-degree reference
  • 5 laser points and 2 cross beam laser lines
  • IP54 dust and water-resistant
  • Battery life up to 40 hours
  • Thread dual tripod

Eliminating the need to purchase two tools, the Spectra LT52 Point and Cross Line Laser Level is a versatile construction device for plumbing, leveling, aligning and squaring. This plumb laser level projects five laser pointers at 90-degree angles to each other and two cross-line beams. It measures up to 100 feet for lines and 200 feet for points. In addition, the combination of points and lines can be chosen using the convenient two-button keypad.

The Spectra LT52 multi-line laser is accurate within ±1/8-inch at 50 feet and self-leveling within ±3 degrees. If this construction laser is out of level, a beam flashes as an indication. Automatic leveling can be disabled and the unit can be switched to manual mode for tasks that require the laser to be set at an angle. This makes the LT52 point and crossline laser ideal for horizontal and vertical alignment, wall layout, acoustic ceiling installation, point transfer up and down, wall and floor tiles, finish carpentry and 90-degree squaring.

The LT52 self-leveling line laser is extremely robust and can sustain falls onto hard surfaces up to three feet. This combo dot and line laser is also IP54-rated for protection against dust and water splashes. It is powered by a Lithium-ion battery that lasts up to 40 hours for points and 16 hours for lines. With the included magnetic bracket, the LT52 can be attached to steel columns, wall studs or any steel surface. This enables contractors to use lines and points at any height. The LT52 also features dual threads, allowing construction professionals to attach it to a 1/4-20 or 5/8-11 tripod.

Configuration Options

  • LT52R: Laser Only
  • LT52R-2: With HR220 Laser Receiver and Rod Clamp

The HR220 laser detector with C61 clamp makes the LT52 line laser ideal for short-range exterior general leveling and alignment tasks, including elevation checks for decks, pools, septic tank installation, masonry work, and landscaping. Featuring an LCD display, this laser receiver is accurate within ±1/16 inch on fine adjustment and ±1/8 inch on medium adjustment. It is powered by two AA batteries that last up to 50 hours. This Spectra laser detector can also resist drops up to three feet and is water-resistant.

Shock Proof ensures this construction laser withstands three feet drop onto concrete.
  • Lines: 100-foot range
  • Points: 200-foot range
  • 250-foot range with optional laser detector
  • ±1/8-inch accuracy at 50 feet
  • Self-leveling within ±3 degrees
  • 360-degree reference
  • 5 laser points and 2 cross beam laser lines
  • Plumb, level, and square
  • Out of level indication
  • Wide 210° horizontal line intersects side points; vertical up beam intersects up point
  • Down point clears floor track, no additional accessory required
  • Long battery life – 40 hours for points on Lithium-ion
  • Magnetic bracket included
  • Withstands a 3-foot (1 m) drop onto concrete
  • Dual tripod thread
  • IP54 dust and water-resistant
  • 3-year warranty

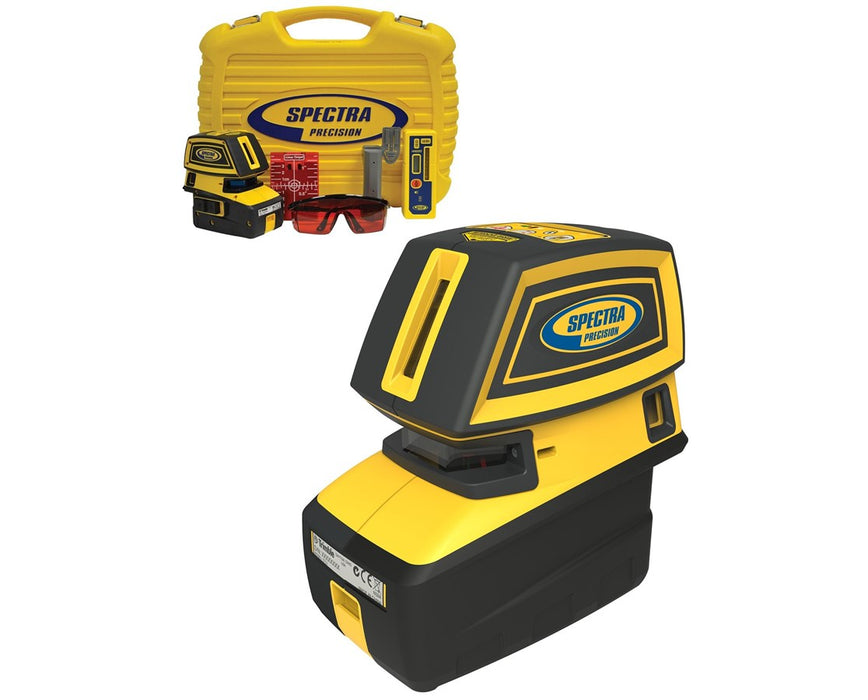

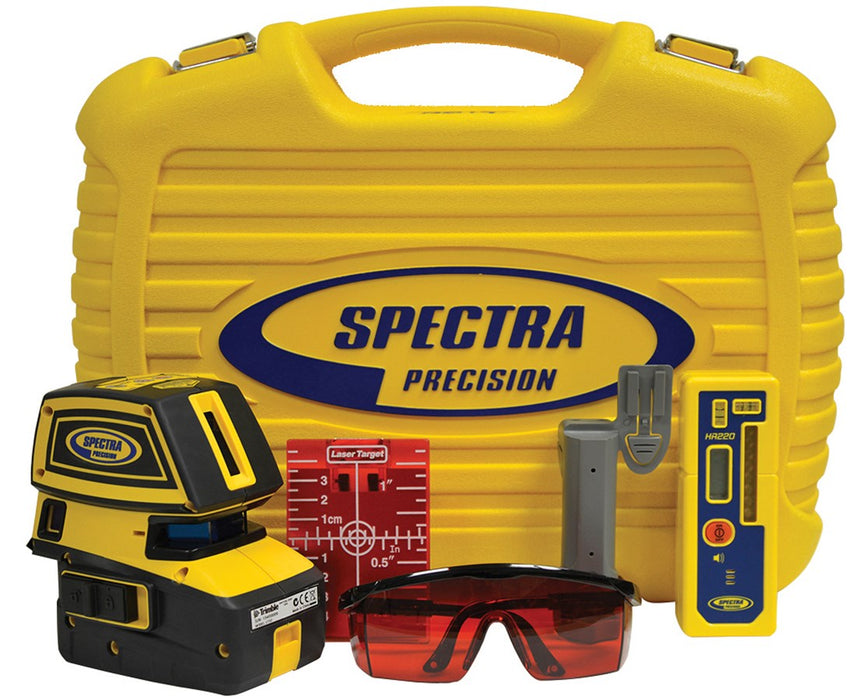

What’s in the Box

  • Spectra Precision LT52R 5-Point and 2-Cross Line Laser Level
  • Magnetic bracket
  • Floor/ceiling target
  • Laser glasses
  • Lithium battery and charger
  • Hard carrying case
  • User manual
  • 3-year manufacturer's warranty

Available Package Options:

  • HR220 Receiver: Optional

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Applications
Ceiling Joist and Rafter Alignment
Yes
Diagonals and Footings for Patios
Yes
Flooring and Tile Layout
Yes
Installing Drop Ceilings and Lights
Yes
Installing Plumbing Pipes and Conduit
Yes
Installing Windows and Partition Walls
Yes
Stud Plumbing and Alignment
Yes
Transferring Points from Floor to Ceiling
Yes
Transferring Points from Wall to Wall
Yes
Battery/Power
Battery Level Indicator
Yes
Operating Temperature
14 to 113 °F (-10 to 45 °C)
Operating Time
Points: Up to 35-40 hours; Lines: Up to 12-16 hours
Power Source
Lithium-ion rechargeable
Storage Temperature
-4 to 140 °F (-20 to 60 °C)
Features
Environmental Class
IP54 dustproof and water spray resistant
Self-Leveling
Yes
Tripod Thread
1/4 x 20
Functions
Aligning at an Angle
Yes
Horizontal Leveling
Yes
Plumbing Up and Down
Yes
Setting out Right Angles
Yes
Vertical Aligning
Yes
Vertical and Horizontal Aligning
Yes
General
Dimensions
5.7" L x 3.0" W x 5.9" H
Laser Class
2
Laser Type
635 nm <1mW
Warranty
3-year
Weight
1.5 lbs (0.68 kg)
Measuring Capabilities
Beam Direction
up, down, forward, right, left
Leveling Accuracy
±1/8 inch at 50 feet
Number of Lines (Planes)
2
Number of Points
5
Range with Receiver
Up to 250 ft (80 m)
Self-Leveling Range
±3 degrees
Working Range
Points: Up to 200 feet (60 m); Lines: up to 100 ft (30 m)
