5-Beam Laser Level

by Bosch
MFR#: GPL 5
TIGER#: TS14172
Original price List Price: $399.20
You Save: $169.90 -43%
Original price $399.20 - Original price $399.20
Original price List Price: $399.20
Current price $229.30
$229.30 - $229.30
Current price $229.30
5-Beam Laser Level
5-Beam Laser Level - $229.30
$229.30
*Must Purchase 1 for 5-Beam Laser Level

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 5 - 7 Business Days Shipping Date By: 4/26/2024

One of our Sales Experts will be in touch!

Essential Add-Ons:
Multi Mount
Multi Mount
Details
$59.99
$87.36
Heavy-Duty Aluminum Contractor's Tripod
Heavy-Duty Aluminum Contractor's Tripod
Details
$105.73
  • Range up to 100 feet
  • Accuracy up to ±1/4 inch at 100 feet
  • Self-Leveling up to ±5 degrees
  • 5-direction 90-degree angles
  • Smart Pendulum Leveling System
  • Quad Mirror Technology
  • IP5X dustproof
  • Magnetic mount with 1/4-20 tripod thread

The Bosch GPL5 5-Point Laser Level is a self-leveling construction laser that projects 5 points up to 100 feet within ±1/4 inch accuracy. With quick completion of indoor applications, including layout and alignment, the Bosch GPL5 plumb laser provides all you need to efficiently do the job!

Smart Pendulum Leveling System

After turning on the laser instrument, the Bosch GPL5’s self-leveling function automatically compensates for any misalignments beyond ±5 degrees. If it is further out of level, the beams flash rapidly until the point laser is set within the self-leveling range. When the tool is shut off, automatic self-leveling is locked for safe transport.

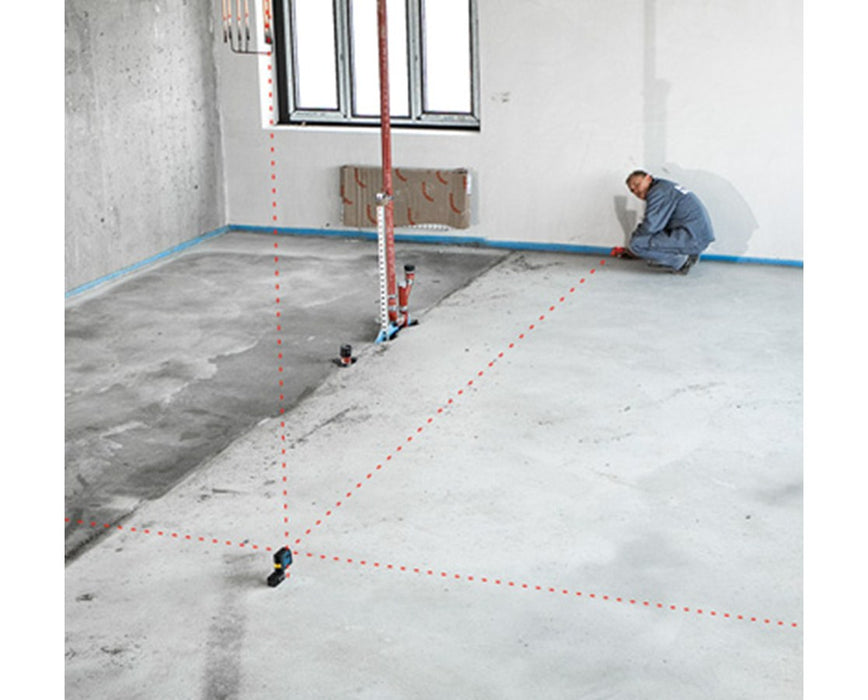

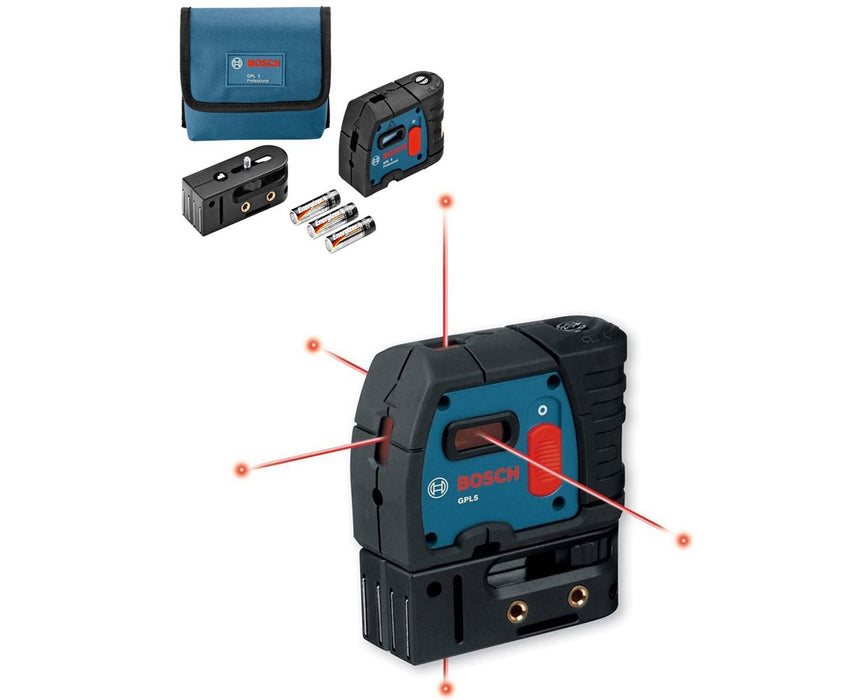

Projection and Transfer of Points

The 5 beams on the GPL5 laser level allow for the accurate transfer and alignment of plumb, level and square points in all vertical and horizontal directions. For easy corner layout, the left and right beams sit at a 90-degree angle. In addition, the Bosch GPL5 is equipped with reference lines built into the housing ensure precise positioning and transfer of points.

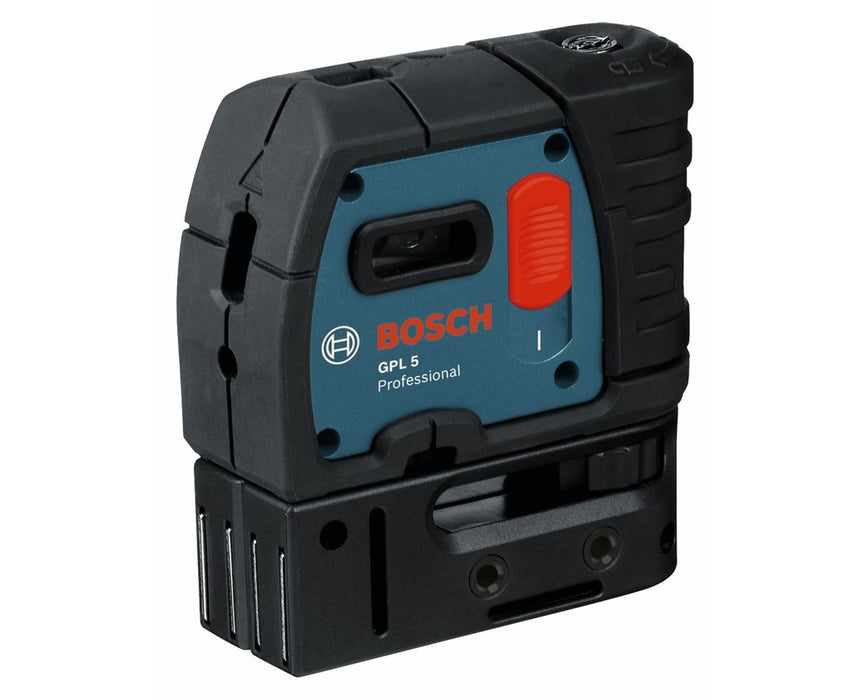

Durable Housing

At only 4-inches tall, the Bosch GPL5 interior construction laser is built to last. There is a strong over-molded housing around the instrument that provides extra protection against potential damage, while its IP5X rating ensures resistance from dust, leaving your laser level to function properly in all conditions.

Construction professionals who require an efficient tool for layout and alignment tasks will enjoy the Bosch GPL5 dot laser. With the projection of plumb and level points, as well as setting out right angles, the GPL5 exhibits all the features expected in a superior construction laser.

The Bosch GPL5 point laser level is backed by a 2-year limited warranty.

Click here to compare Bosch dot/plumb lasers

  • 5 laser beams project plumb, level, and 90-degree square points
  • Pocket-sized and lightweight
  • Working range up to 100 feet
  • Accurate within ±1/4 inch
  • Quad Mirror Technology provides accurate 90-degree angles in 5 directions
  • Smart Pendulum Leveling System automatically compensates for misalignments within ±5 degrees and signals when tool is further out of level
  • Self-leveling function locks when instrument is powered off
  • Included multipurpose attachment for mounting with magnets, strap, or threaded mounts
  • Integrated reference lines help to precisely position tool and transfer points
  • Easy field recalibration if necessary after being dropped
  • Durable housing with IP5X dust protection
  • Dual tripod thread
  • Limited 2-year warranty

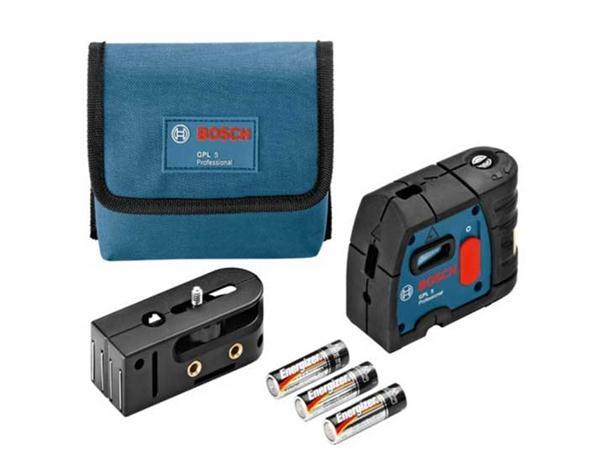

What’s in the Box

  • Bosch GPL5 5-Point Laser Level
  • Multipurpose attachment
  • Mounting strap
  • Belt pouch
  • Recalibration wrench
  • (3) AA batteries
  • User manual
  • Limited 2-year warranty

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 15% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

Order Cancellations will incur a 15% fee.

For complete details of our return policy and process, please refer to our general return policy page.

Applications
Ceiling Joist and Rafter Alignment
Yes
Diagonals and Footings for Patios
Yes
Flooring and Tile Layout
Yes
Installing Drop Ceilings and Lights
Yes
Installing Plumbing Pipes and Conduit
Yes
Installing Windows and Partition Walls
Yes
Stud Plumbing and Alignment
Yes
Transferring Points from Floor to Ceiling
Yes
Transferring Points from Wall to Wall
Yes
Battery/Power
Battery Level Indicator
Laser beam flashes slowly when low
Operating Temperature
14 to 122 °F (-10 to 50 °C)
Operating Time
Up to 24 hrs
Power Source
3 x AA batteries
Storage Temperature
-4 to 158 °F (-20 to 70 °C)
Features
Environmental Class
IP50 dust protected
Self-Leveling
automatically locks when tool shuts off
Tripod Thread
5/8 x 11 or 1/4 x 20 with multi-functional base
Functions
Horizontal Leveling
Yes
Plumbing Up and Down
Yes
Setting out Right Angles
Yes
General
Dimensions
4.125" L x 3.125" W x 1.625" H
Laser Class
2 (in accordance with IEC 60825-1)
Laser Type
635 nm <1 mW
Warranty
2-year limited
Weight
1.0 lbs (453 g)
Measuring Capabilities
Beam Direction
Up, down, horizontal, left, right
Leveling Accuracy
±1/4 inch (6.35 mm)
Number of Points
5
Self-Leveling Range
longitudinal axis ±5°, lateral axis ±3°
Working Range
Up to 100 feet (30m)
