Topcon/Sokkia Style ATP1/ATP2 360° Prism

MFR#: 720-15
TIGER#: TS30725
Original price $339.95 - Original price $339.95
Original price List Price: .
$339.95
$339.95 - $339.95
Current price $339.95
Topcon/Sokkia Style ATP1/ATP2 360° Prism
Topcon/Sokkia Style ATP1/ATP2 360° Prism - $339.95
$339.95
*Must Purchase 1 for Topcon/Sokkia Style ATP1/ATP2 360° Prism

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 10 - 14 Business Days Shipping Date By: 5/8/2024

California Proposition 65 Warning. This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

One of our Sales Experts will be in touch!

  • Offset of -7mm
  • Accurate at ≤5 sec
  • 5/8 x 11 female mounting threads
  • Hexagonal precision corner cubes
  • Rugged plastic housing
  • Solid metalcore
  • Rubberized flanges and reflective coating
  • Compatible w/ most robotic total stations

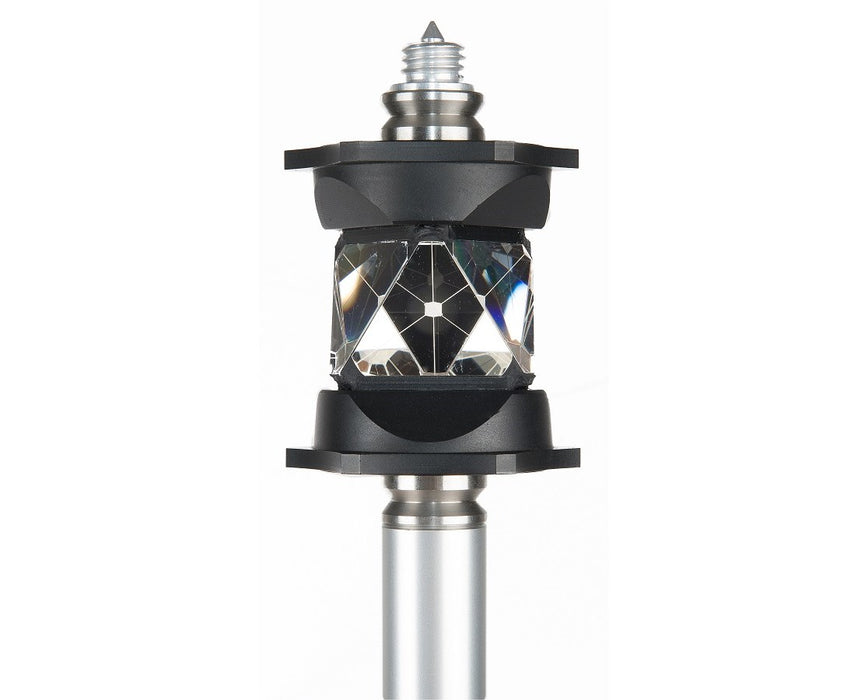

Designed after the Sokkia ATP1 and Topcon ATP2, the AdirPro Topcon/Sokkia Style 360° Prism is highly compatible with most robotic total stations with its -7mm offset. Precise and reliable, this prism has a reinforced center that works with popular tribrachs, standard poles, and other commonly used components. Its 5/8 x 11 female mounting threads on top and bottom allow attachments to a quick connect adapter and remote control.

With six precision-machined corner cubes and a rugged plastic housing mounted on solid metalcore, the AdirPro 360 degrees prism is ideal for surveying tasks at a ≤5-sec accuracy. Its hexagonal points assist in the sighting process for precise initial alignment of the total station. Additional device protection is also provided by its rubber flanges and reflective coating during outdoor use.

The AdirPro Topcon/Sokkia Style ATP1/ATP2 360° Prism is useful for most robotic work and is a perfect pair for robotic total stations. It comes with a prism protector that doubles as a cleaning cloth and a soft carry case that secures the device when not in use.

  • Offset of -7mm
  • Accurate at ≤5 sec
  • 5/8 x 11 female mounting threads
  • Hexagonal precision corner cubes
  • Rugged plastic housing
  • Solid metalcore
  • Rubberized flanges and reflective coating
  • Compatible w/ most robotic total stations
  • Complete w/ cover, prism protector & case

What’s in the Box

  • AdirPro Topcon/Sokkia Style ATP1/ATP2 360° Prism
  • Prism cover
  • Carrying case

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Angle
3mm @ <20°
Distance
12.5 miles (clear conditions)
Offset
-7mm
Tilt
3mm @ <20°
General
Diameter Of Center Hole
1.99"
Dimensions
2.75" x 4"
Operating Temperature
-4°F~122°F
Prism Height
1.5"
Storage Temperature
-22°F~158°F
Thread
5/8 x 11
Weight
9.3 oz
